Manufactured in-house, these barrels are fully stress relieved, air-gauge tested, and 11 degree target crowned to ensure superior accuracy.
Quality is imbued into Faxon’s barrels from the start. Faxon start with the best materials, either certified 4150 Mil-Spec steel or 416-R Stainless. From there, each barrel goes through a battery of tests at each operation until finished in Nitride and final inspected. All barrels are individually checked for headspace by precision custom hardened gauges.

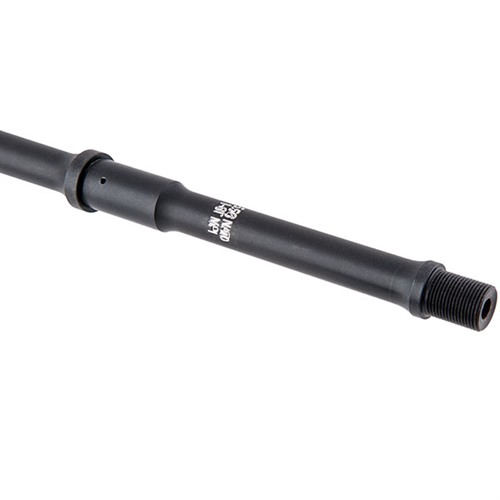

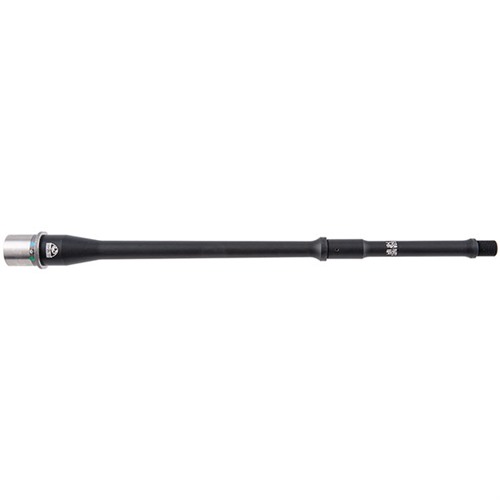

Faxon AR-15 5.56 Pencil barrels have a narrow O.D. both fore and aft of the gas block, for maximum weight saving. AR-15 5.56 Pencil barrels are manufactured at Faxon’s ISO-certified facility from one of the hardest materials on the planet, 4150 CMV carbon steel, featuring a QPC black Nitride or FDE coating for superior wear-resistance and longevity.
All Faxon AR-15 5.56 Pencil barrel feature M4 feedramps for to aid in reliable chambering and extraction of round, and they must pass magnetic particle inspection to ensure consistent quality.
SPECS
- Barrel Material: 4150 CMV
- Barrel Type: Button Rifled
- Barrel Caliber: 5.56
- Barrel Twist: 1:8
- Barrel Length: 10.5"
- Barrel Profile: Pencil
- Barrel Gas System: Carbine or Mid-Length
- Inside Finish: Nitride
- Outside Finish: Nitride
- Muzzle Thread: 1/2-28
- Gas Block Diameter: .625"
- Gas Block Journal Length: 1.1"
- Barrel Extension: M4
- Weight: 10.5” barrel 1.9 lbs / 14.5” barrel 1.15 lbs / 16” barrel 1.20 lbs
- Magnetic Particle Inspected
- 11-degree Target Crown
Barrel Finish:
Nitride
Caliber:
Item Length (Inches):
14.500
Barrel Contour:
Pencil
Barrel Length:
14.50
Color:
Black
Model Number:
Cartridge:
5.56x45 NATO
Item Weight (lbs):
1.150
Gas Block Diameter:
0.625 Inches
Make Model Fit:
AR-15.Universal
Gas System Length:
Mid-Length
Material:
4150 CMV
Quantity:
1
Muzzle Threads:
1/2"x28
Twist:
1-8
Restricted Part:
Yes
Prop 65 restriction:
WARNING: This product may contain chemicals known to the state of california to cause cancer and birth defects or other reproductive harm
Shop All ED BROWN
Duty 5.56x45 NATO 14.5" 1-8 Twist Pencil Contour BBL Nitride
MAP:
161.000000000
Your Price
$2,299.99 *
Crow # 100802007
MFR # 15A58M14NPQ
UPC 816341020085
