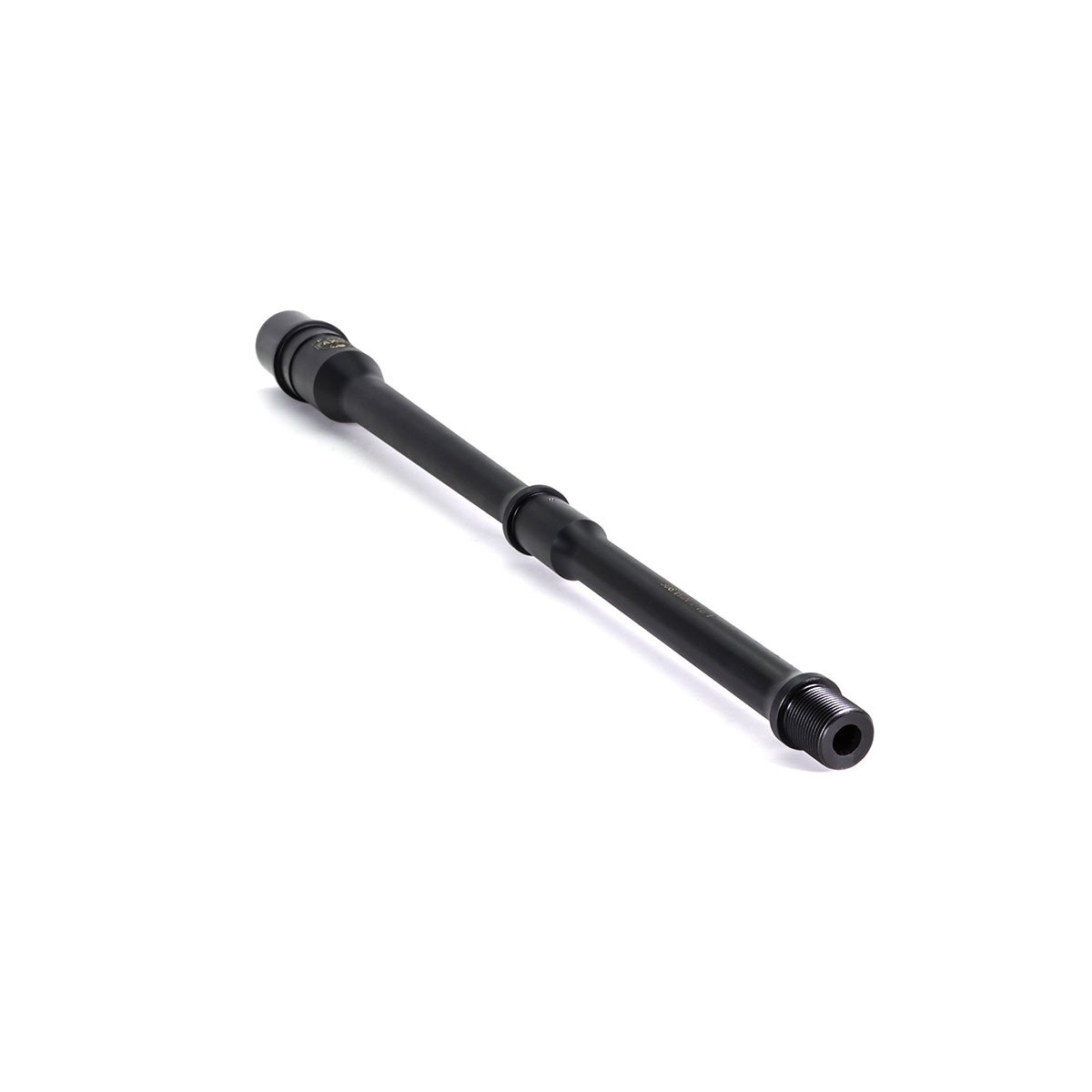

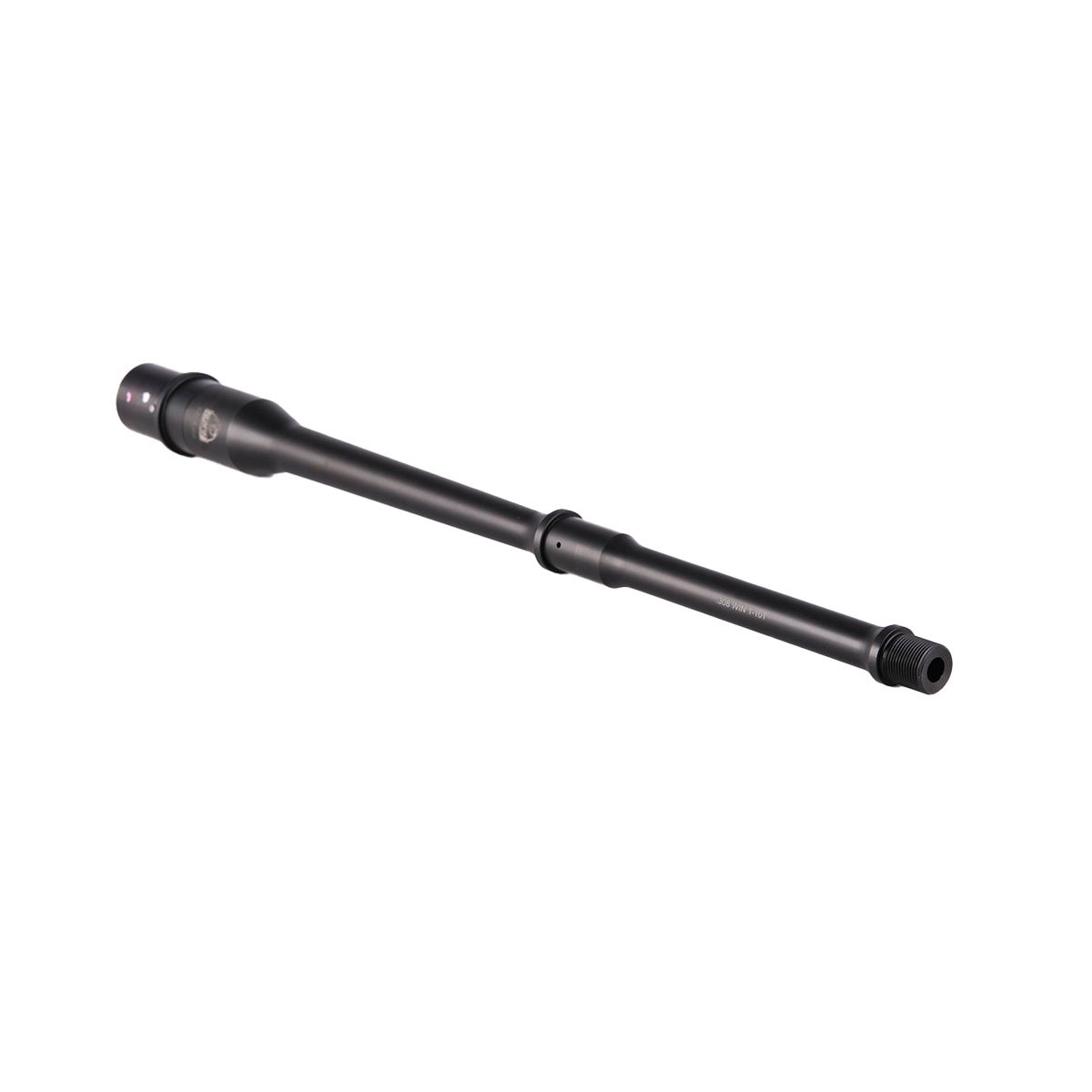

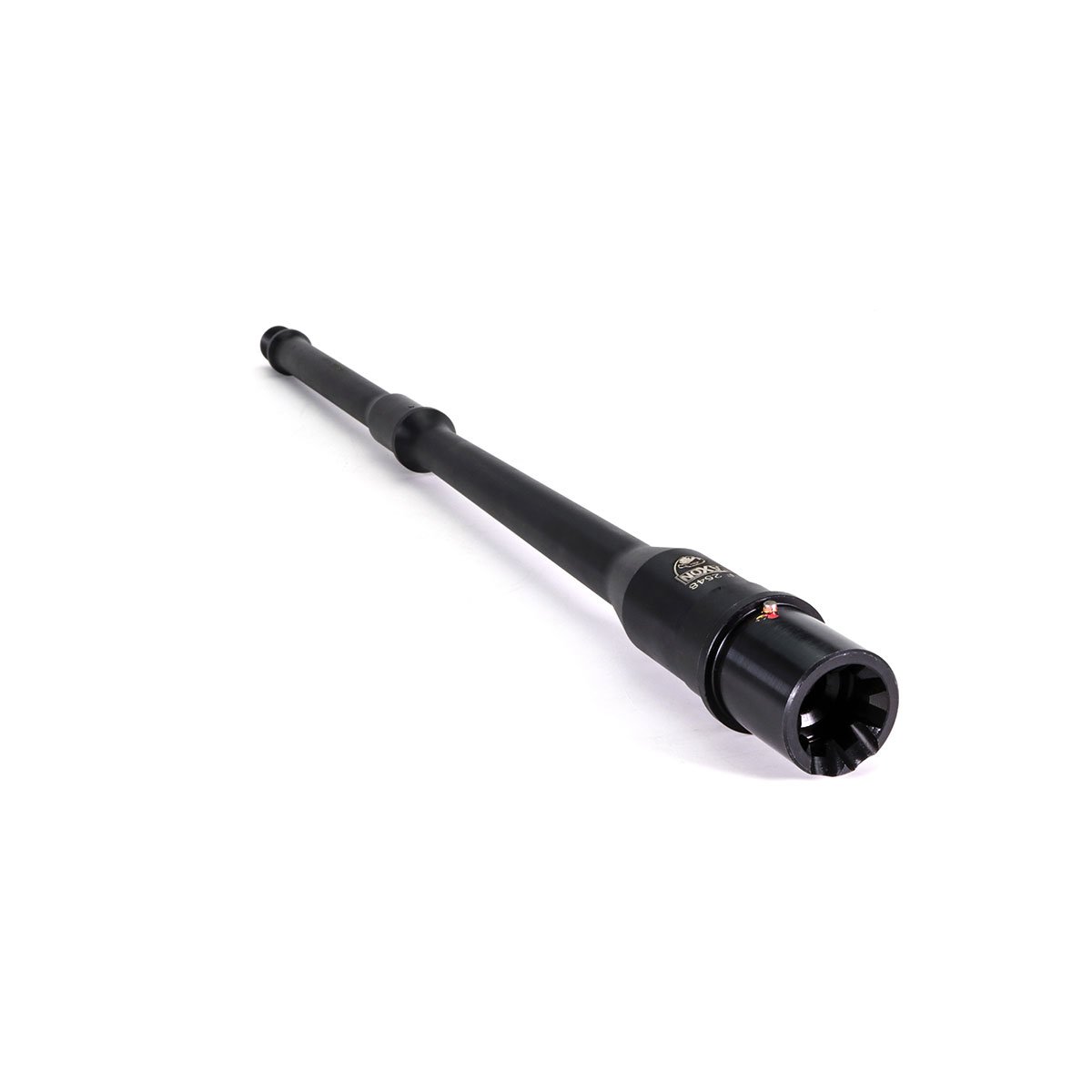

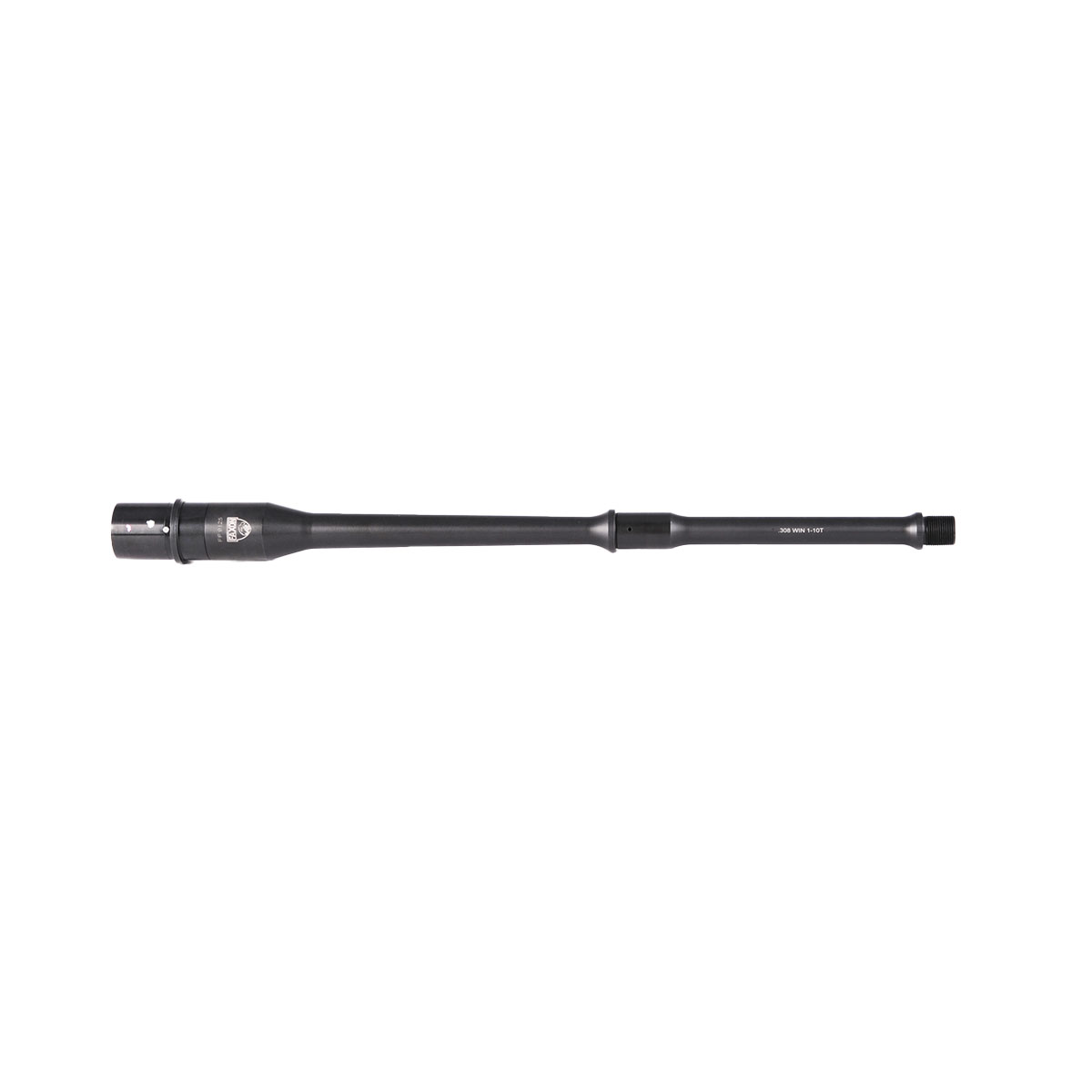

Faxon's pencil barrels are renowned for their lightweight performance. Fully stress relieved, Faxon carefully designed the barrel's taper to remove weight while maintaining performance. The result is the lightest barrel in the industry - and one Faxon are fully confident to put the Faxon shield on.
Faxon's .308 barrels feature 1/10 twist rifling for full stabilization across all common .308 loadings. Faxon’s barrels are chambered to .308 Winchester SAAMI specification for maximum versatility. Manufactured in-house in Cincinnati, these barrels are fully stress relieved, air-gauge tested, and 11 degree target crowned to ensure superior accuracy.
Quality is imbued into Faxon’s barrels from the start. Faxon start with the best materials, either certified 4150 Mil-Spec steel or 416-R Stainless. From there, each barrel goes through a battery of tests at each operation until finished in Nitride and final inspected. All barrels are individually checked for headspace by precision custom hardened gauges.
SPECS
- Barrel Material: 4150 CMV
- Barrel Caliber: .308 WIN
- Barrel Twist: 1:10
- Barrel Length: 16”
- Barrel Profile: Pencil
- Barrel Gas System: 16” Mid-Length or 18” Rifle Length
- Inside Finish: Salt Bath Nitride
- Outside Finish: Salt Bath Nitride
- Muzzle Thread: 5/8x24
- Gas Block Diameter: .750""
- Gas Block Journal Length: 1.1""

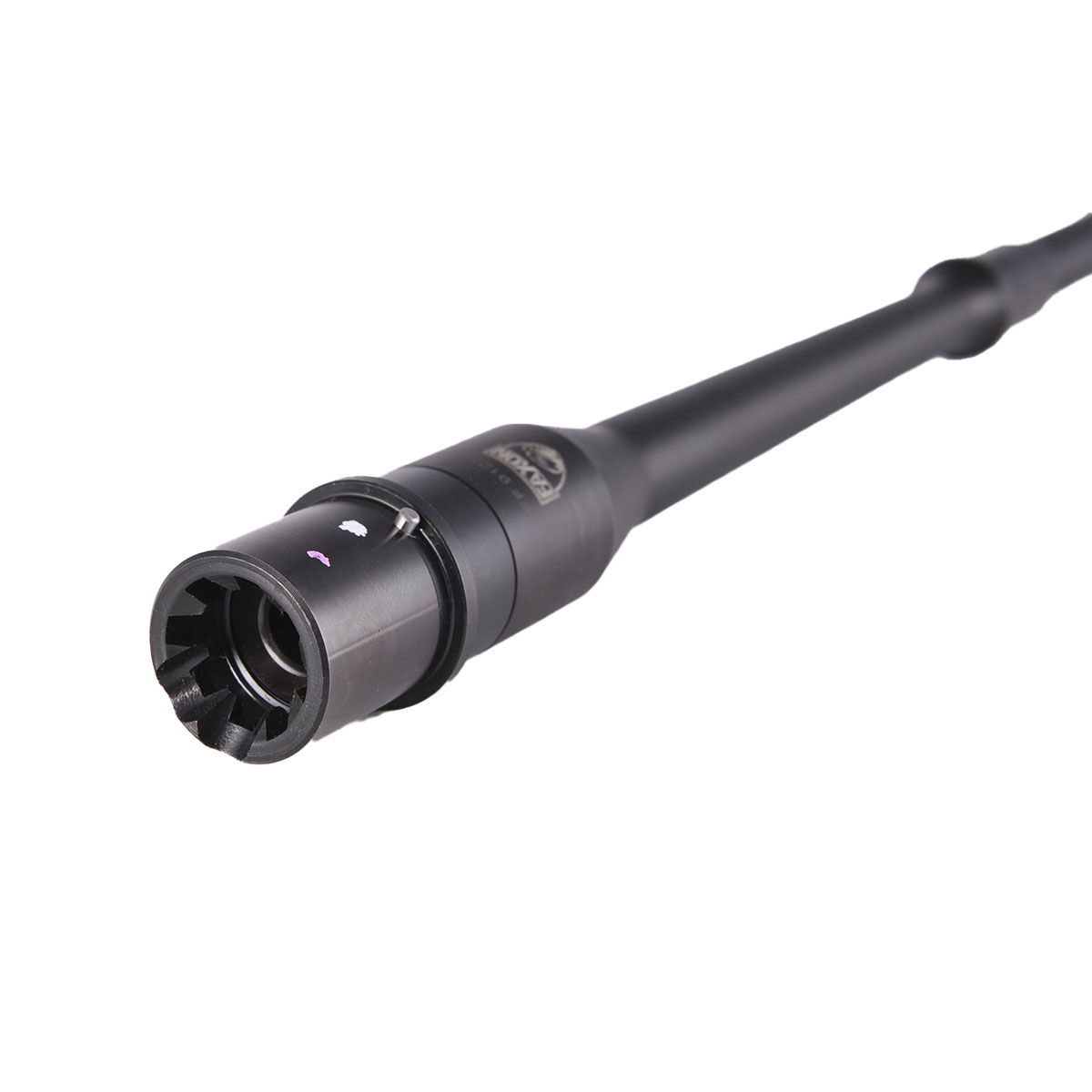

- Barrel Extension: LR-308 (DPMS Compatible)
- Weight:16” barrel 1.78 lbs / 18” barrel 1.97 lbs
- Magnetic Particle Inspected

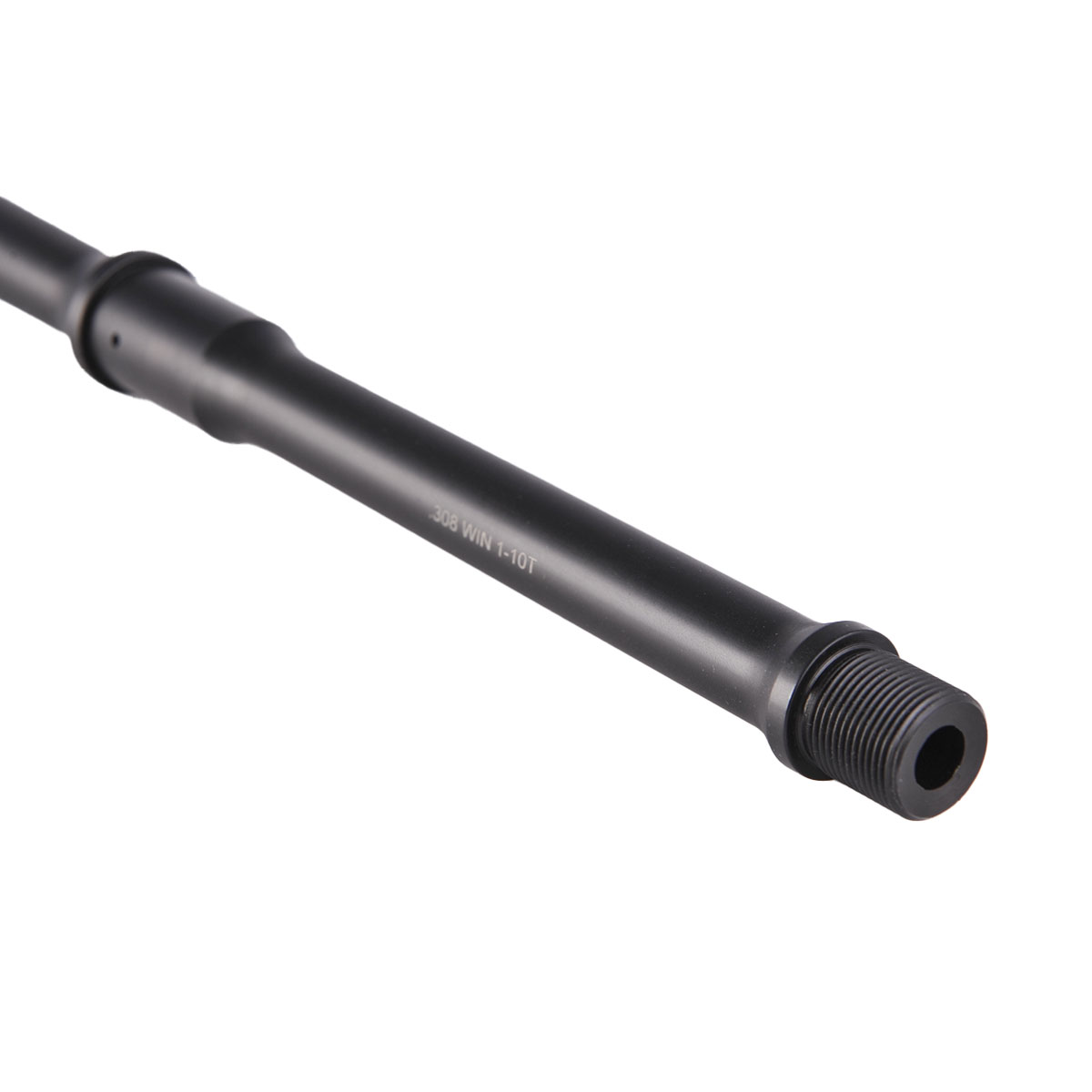

- 11-degree Target Crown
Barrel Length:
16.00
Caliber:
Barrel Contour:
Pencil
Barrel Finish:
Salt Bath Nitride
Gas System Length:
Mid-Length
Color:
Black
Gas Block Diameter:
0.750 Inches
Cartridge:
308 Winchester
Item Length (Inches):
16.000
Material:
4150 Steel
Item Weight (lbs):
1.780
Muzzle Threads:
5/8"x24
Make Model Fit:
AR-15.Universal
Model Number:
Twist:
1:10
Quantity:
1
Restricted Part:
Yes
Prop 65 restriction:
WARNING: This product contains chemicals known to the state of California to cause cancer, and birth defects or other reproductive harm.
Shop All ED BROWN
Duty 308 Win 16" 1-10 Twist Pencil Contour BBL Nitride
MAP:
238.280000000
Your Price
$2,299.99 *
Crow # 430108162
MFR # 10A810M16NPQ
UPC 816341023277
