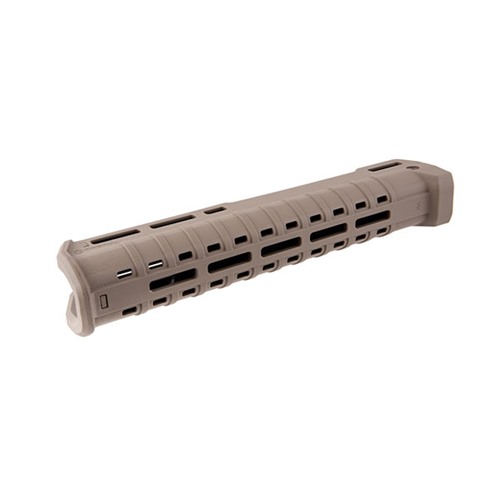

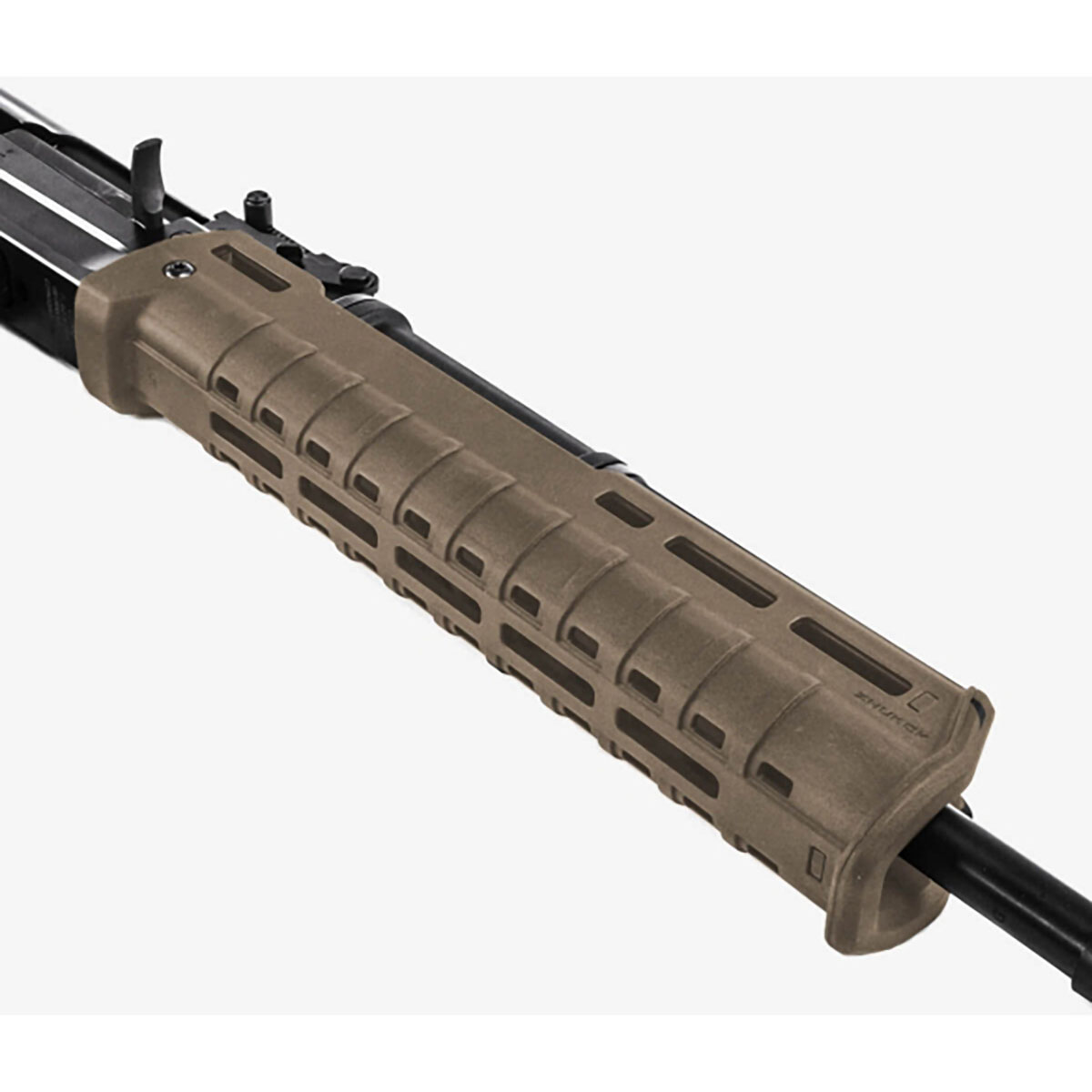

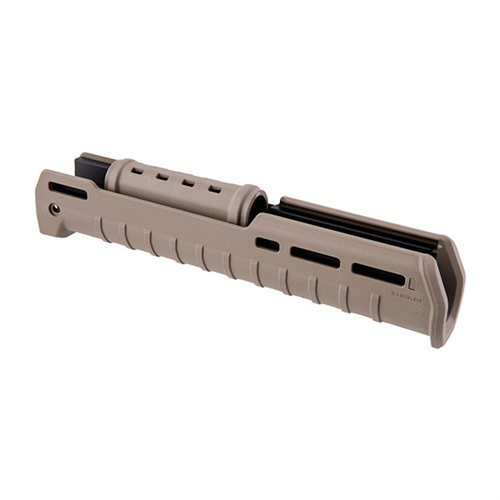

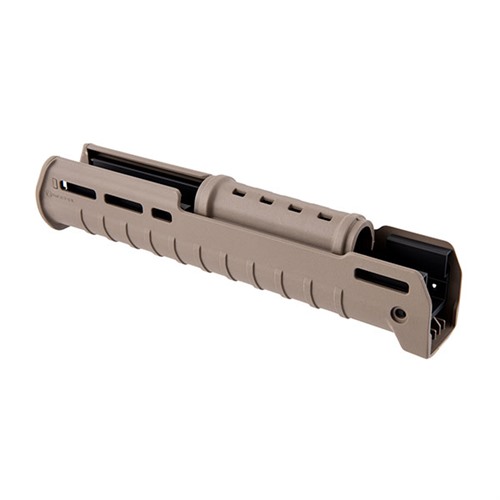

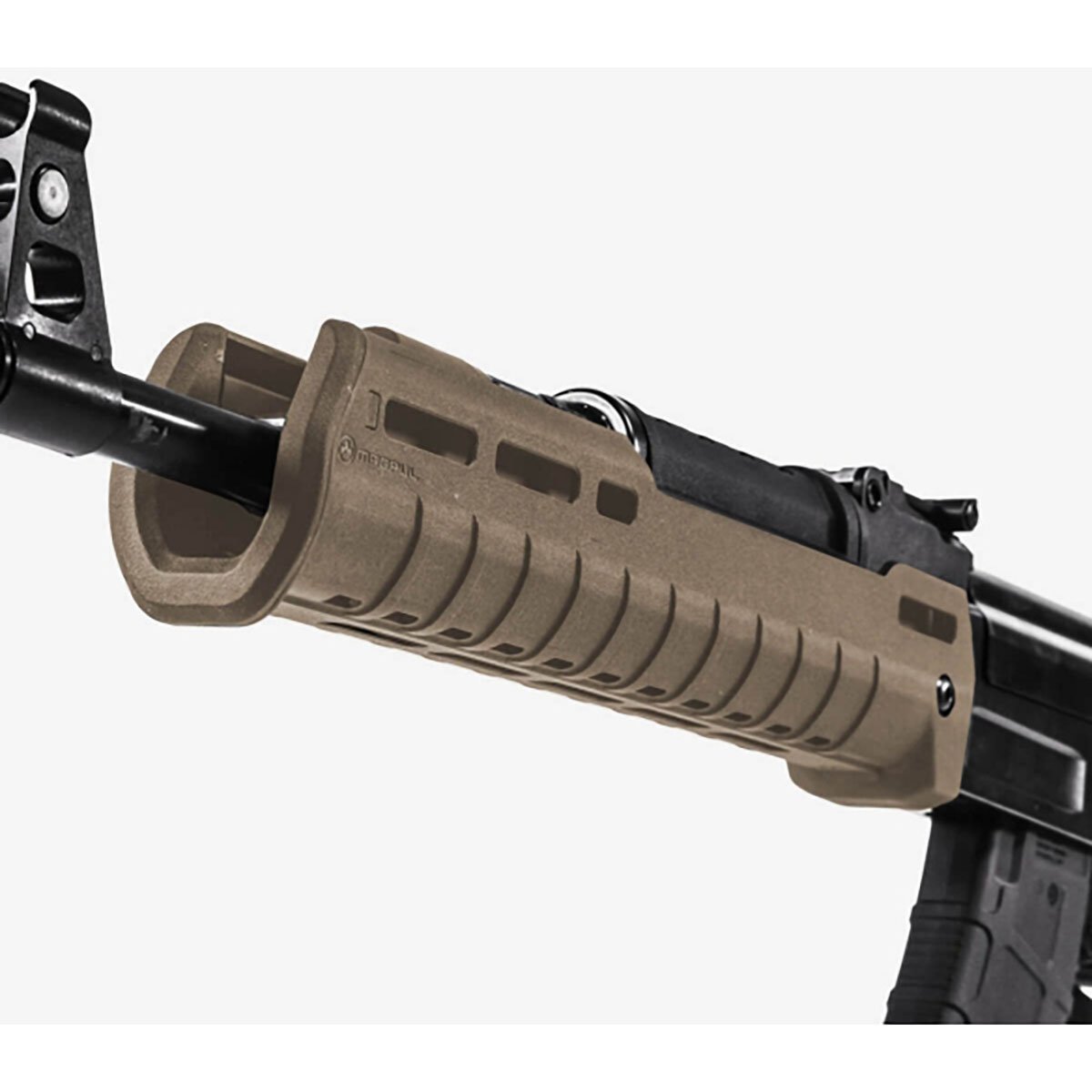

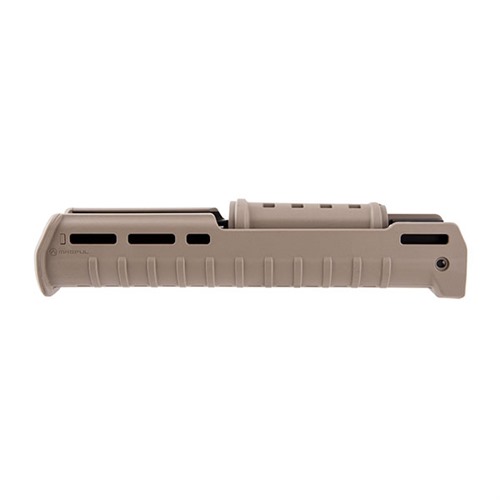

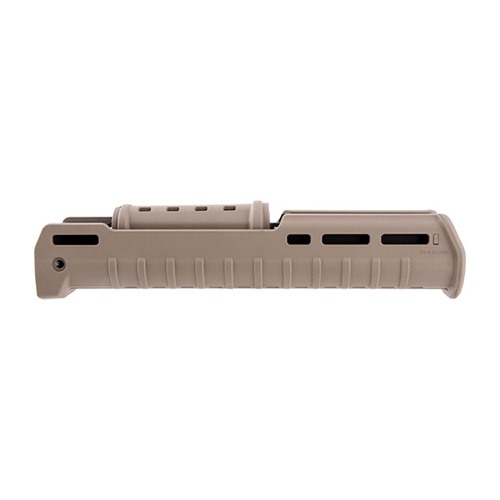

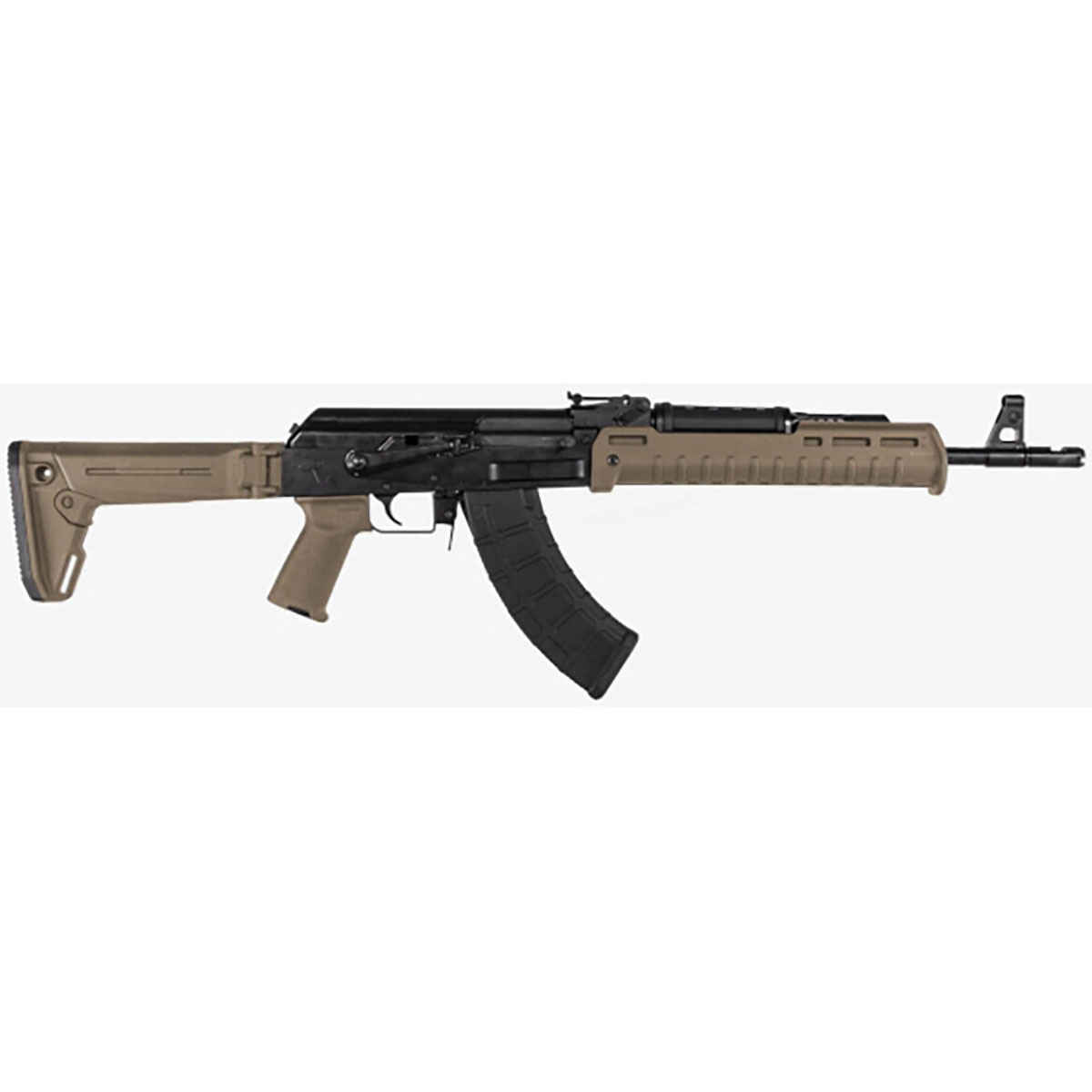

The Magpul Zhukov Hand Guard is a fully-featured AK forearm for the modern AK. The Zhukov Hand Guard casts aside traditional AK forearm shortcomings and offers an extended option for modern shooting techniques, an aluminum chassis for strength and heat dispersion, a comfortable injection molded exterior for superior ergonomics, and M-LOK® slots for optimized accessory attachment.
Compatible with the Ultimak gas tube rail for optics mounting, the Zhukov Hand Guard redefines functionality for the modern AK platform. Installation requires permanent removal of the hand guard retainer.
FEATURES
- Slots at the three, six, and nine o\clock positions for mounting direct-attach M-LOK accessories or M-LOK 1913 Picatinny rail sections
- Durable polymer outer cover

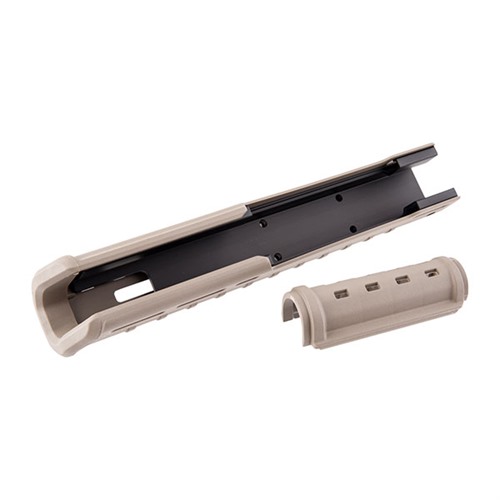

- Includes replacement polymer Top Cover
- Extended length provides large gripping surface for modern shooting techniques as well as additional accessory mounting positions
- Hard anodized aluminum chassis clamps directly to barrel and provides for flex-free mounting as well as excellent heat shielding
- Hand Guard counts as one US compliance part for 922(r).
- Made in USA.
SPECS
- Platform: AK / AKM
- Length, max: 11.7 in.
- Width: 1.8 in.
- Weight, w/ Top Cover: 15.1 oz.
- Weight of Top Cover 1.1 oz.
- Height, w/o Top Cover: 2.1 in.
- Compatibility: Most AK-47 / AKM / AK-74 rifles with barrels between 16.75-18.25 mm in diameter under the hand guard and greater than 13" in length*. Compatible with UltiMAK Optics Mount top cover.
- Not compatible with hand guard retaining caps
*NOTE: The Zhukov Hand Guard requires the permanent removal of the factory hand guard retaining cap and forward sling mount if so equipped. Please ensure your barrel diameter under the hand guard falls between 16.75-18.25 millimeters before cutting your retaining cap!
Due to the wide range of tolerances of your typical AK, minor additional fitting may be required. Not compatible with Yugo pattern rifles or RPK style receivers.
**Specifications based on factory configuration.
WARNING: Due to extended Hand Guard length, barrels less than 13” long are not recommended.
Color:
Flat Dark Earth
Item Weight (lbs):
0.944
Item Height (Inches):
2.100
Finish:
Matte
Item Width (Inches):
1.800
Gas System Length:
Item Length (Inches):
11.700
Handguard Style:
M-LOK
Kit:
Make Model Fit:
AK-47.Universal;AK-74.Universal
Material:
Polymer
Model Number:
Quantity:
1
Restricted Part:
Yes
Ship to all EXCEPT:
Australia
Shop All ED BROWN
Zhukov Handguard M-LOK for AK47/74 FDE
MAP:
113.950000000
Your Price
$2,299.99 *
Crow # 100016677
MFR # MAG586-FDE
UPC 840815100423
