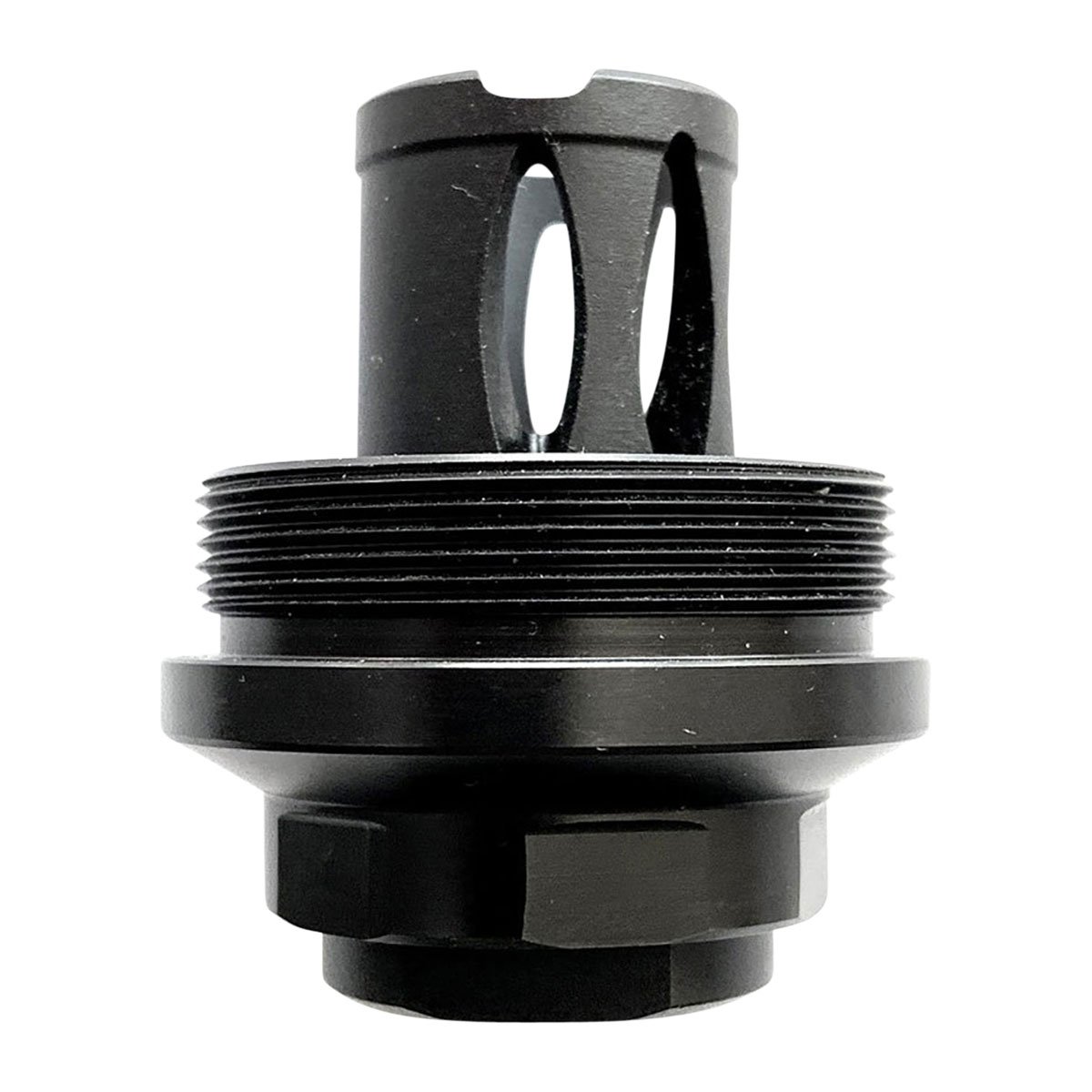

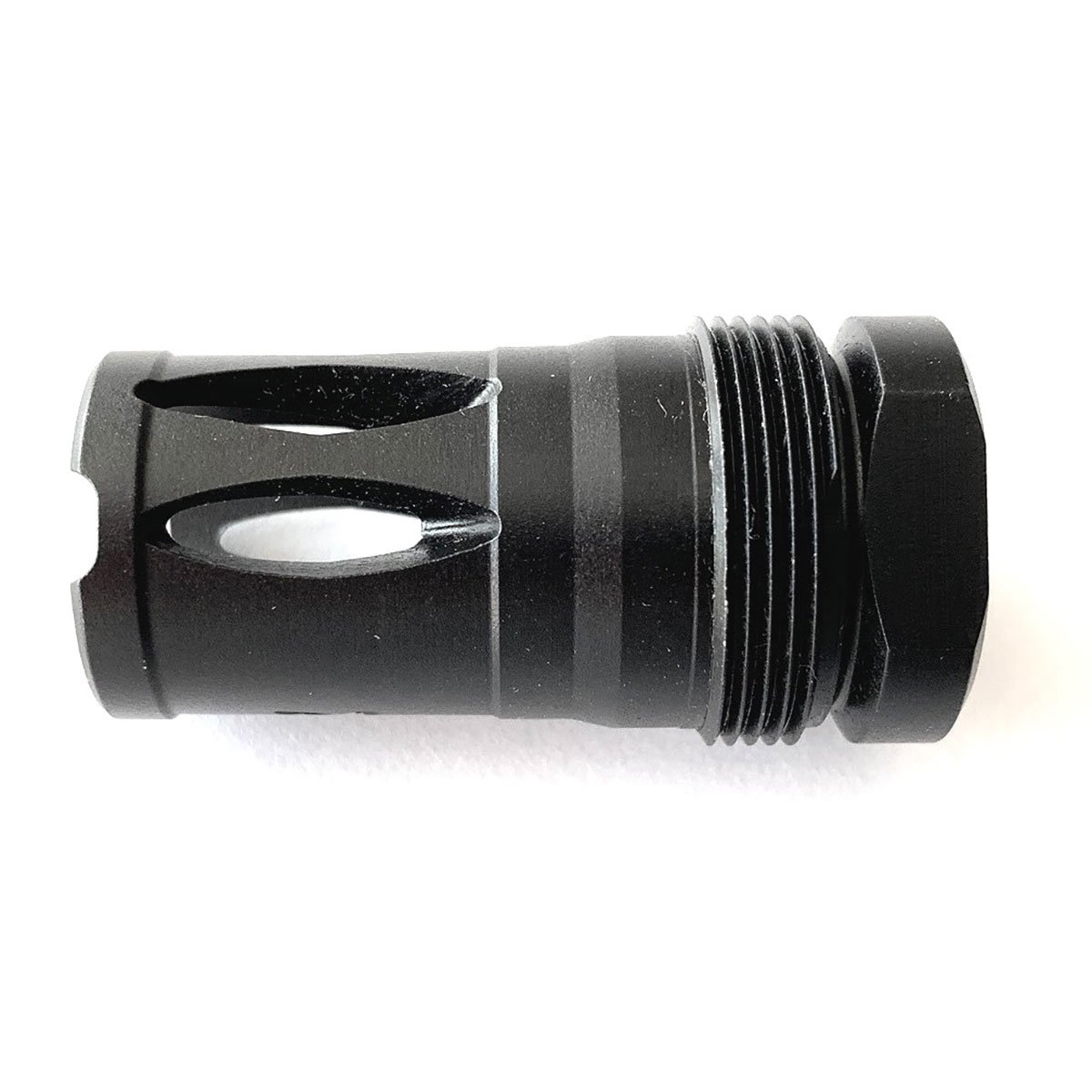

6310RF and 6315RF are Plan B compatible flash suppressors / compensators, a collaboration between Revival Defense https://www.revivaldefense.com/ and Forward Controls Design.
Based on the successful 6310 and 6315 designs that have been well proven on many of our Dead Air Keymo and Xeno devices, both are a closed bottom flash suppressor / muzzle rise compensator that provides 15 to 20% better compensator performance, without the extra muzzle flash, concussion and noise normally associated with a compensator. The shorter and smaller 3 o'clock and 9 o'clock ports force more gas to be vented through the 3 upward facing ports.
6310RF and 6315RF, like all 6310 and 6315 family of flash suppressor / compensators, have a closed bottom, which requires timing to ensure the center port faces 12 o'clock dead center. FCD most likely will not produce an A1 (8 port, spaced equally around the circumference of the flash suppressor) form factor, 3 or 4 prong muzzle device. This is a design decision based on practicality and function.
These have external 0.900 x 24 threads, compatible with sound suppressors with 0.900 x 24 threads and adapters such as Rearden's Atlas adapter.
6310RF
- Length: 1.725"
- Weight: 2.08oz
- Internal threads: 5/8 x 24
- External threads: 0.900 x 24
- Wrench flats: 3/4"
6315RF
- Length: 1.725"
- Weight: 2.08oz
- Internal threads: 1/2 x 28
- External threads: 0.900 x 24
- Wrench flats: 3/4"
TDP spec A2 and 6315RF flash suppression comparison. Predictably,16" barrels don't produce much flash signature, while occasional fireballs erupt out of a 10.5" barrel, not uncommon with short barrels. Ammo can and does change flash signature, we used Winchester M193 55 grain for testing and not low flash ammo.
6315RF's length is shorter than that of a TDP spec A2, (1.76" overall length, with 0.79" available for ports), 6315RF is shorter (1.725" overall length, with 0.675" available for ports), its flash suppression performance is similar to the A2.
Finish:
QPQ
Caliber:
Diameter (in):
Color:
Black
Item Length (Inches):
1.700
Material:
Steel
Item Width (Inches):
0.900
Item Height (Inches):
0.900
Muzzle Threads:
1/2"x28
Model Number:
Quantity:
1
Item Weight (lbs):
2.080
Make Model Fit:
AR-15.Universal
Restricted Part:
Yes
Prop 65 restriction:
WARNING: This product can expose you to chemicals including metallic nickel, chromium and lead, which are known to the State of California to cause cancer or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
