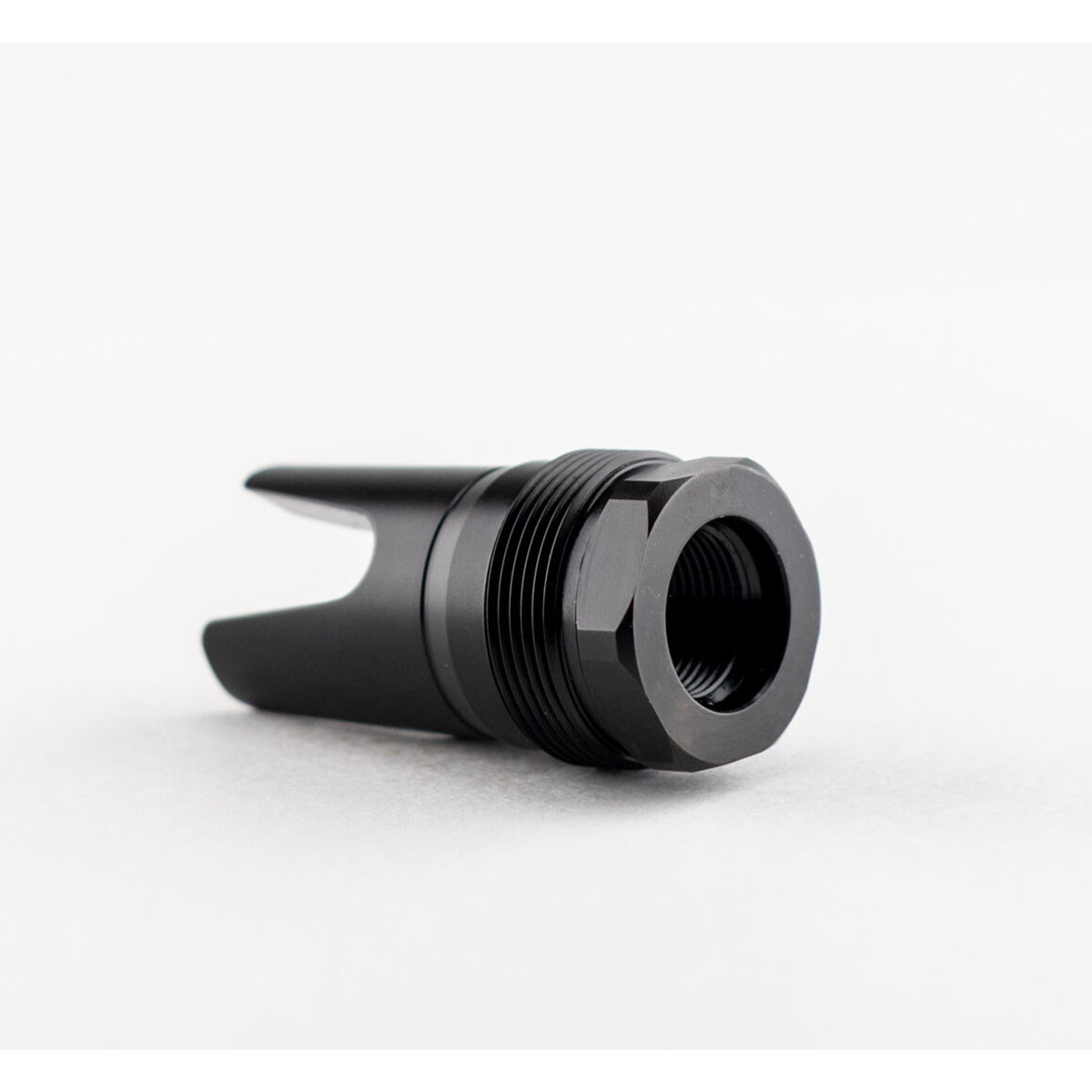

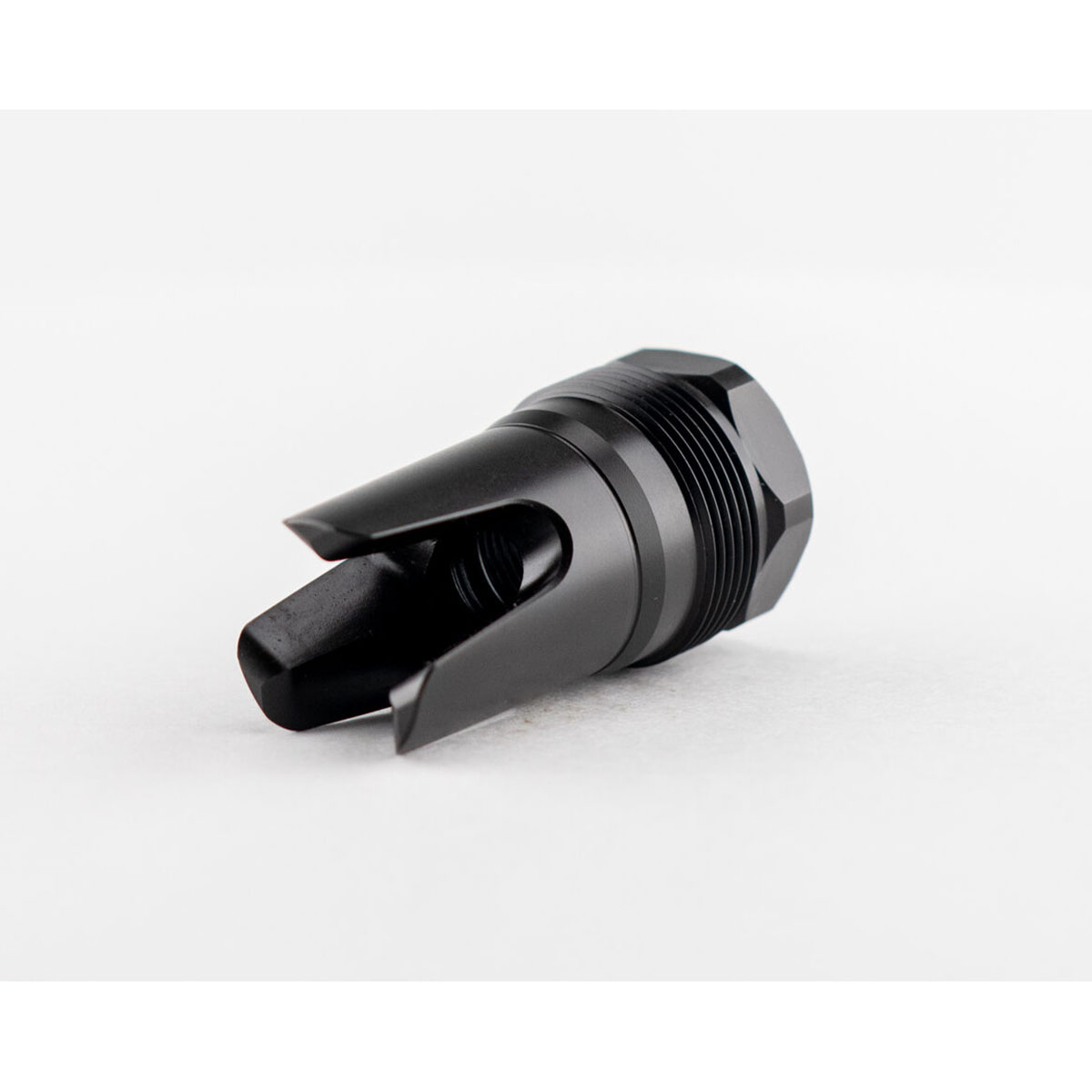

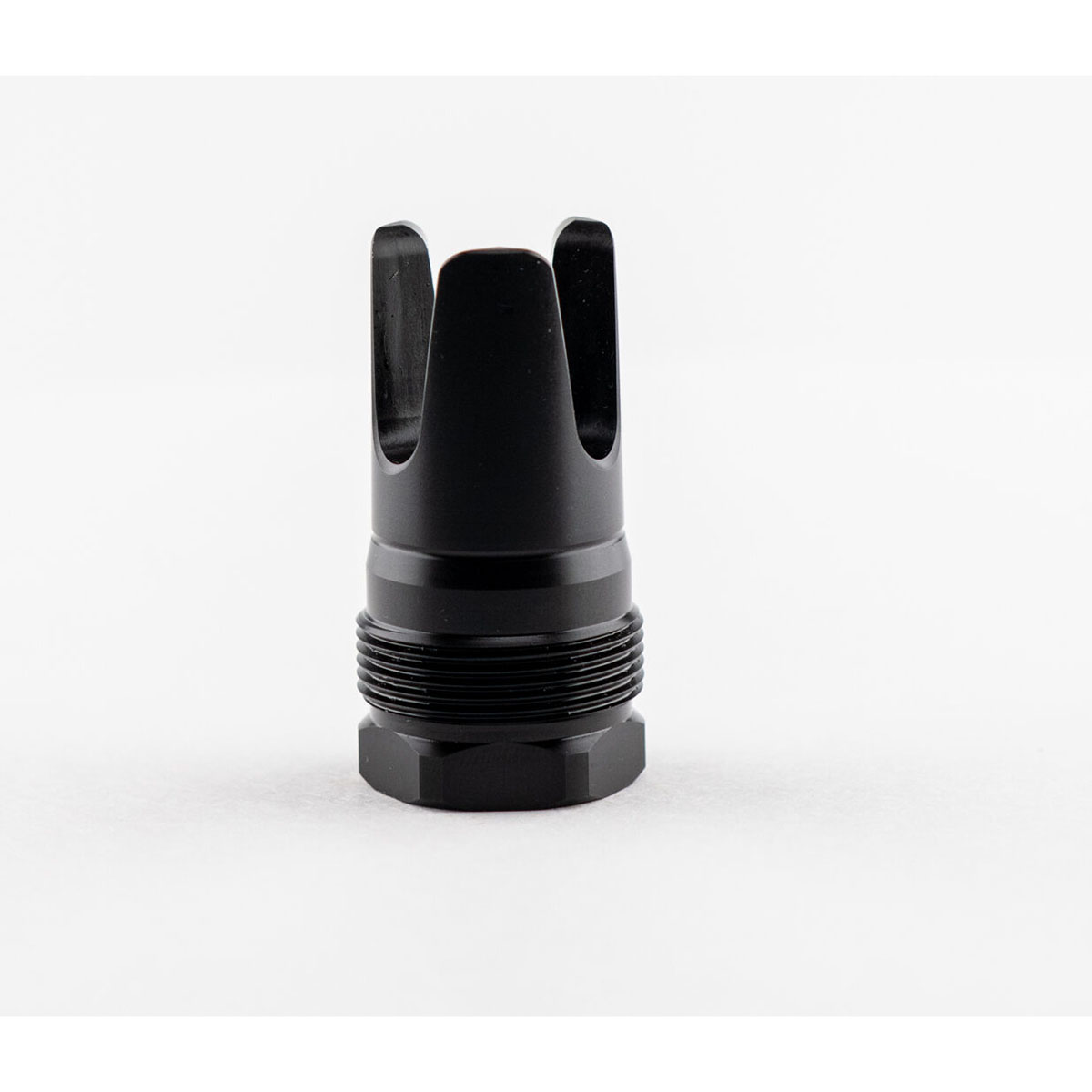

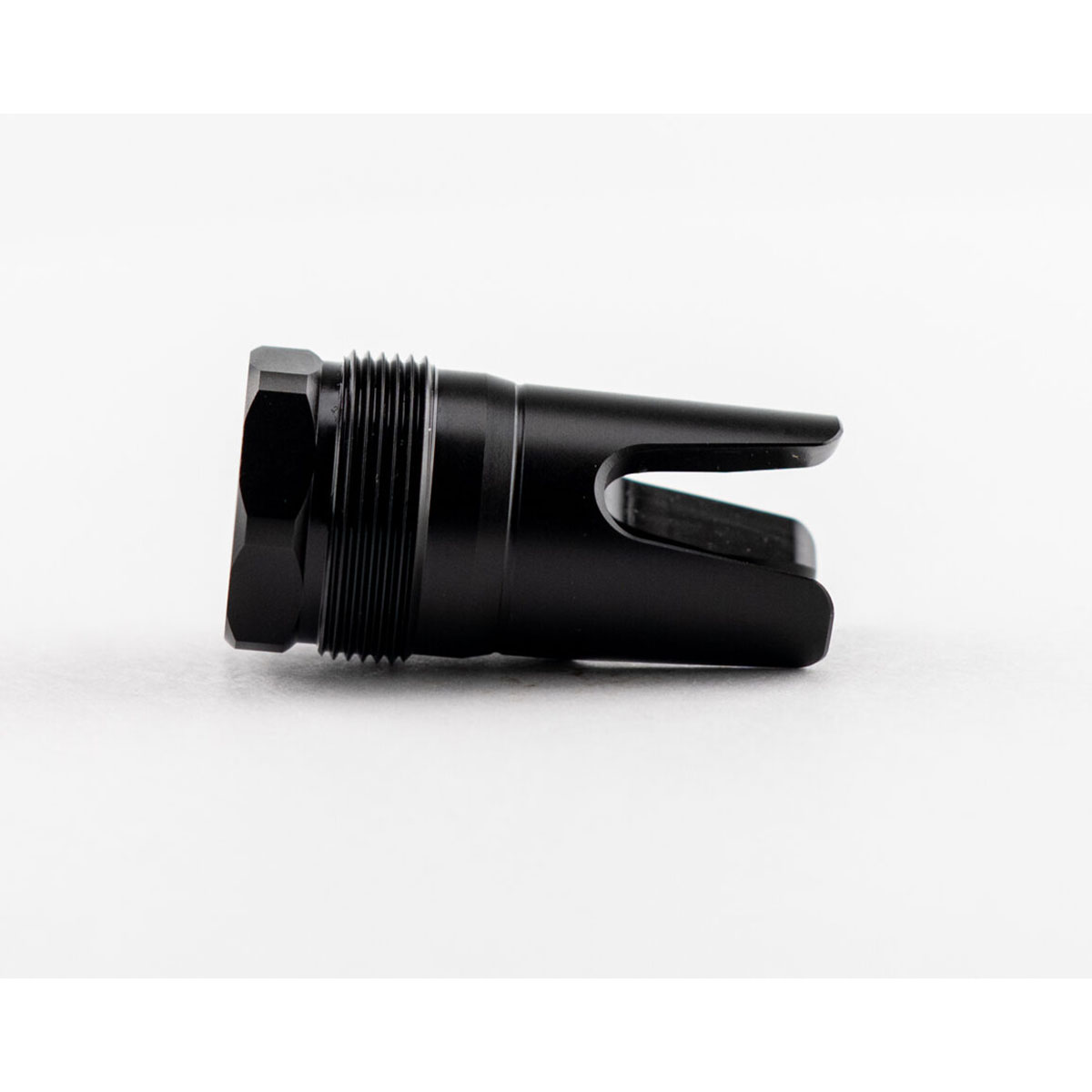

FHD FLASH HIDERS
These fit the plan B type mounts. This is an updated version that has larger wrench flats on the rear. Always use an alignment rod to ensure that the entire system is set up correctly. Make sure all surfaces are cleaned and the muzzle device has been torqued and Rockset to the barrel. Use on a Q can voids your warranty, be warned.
Torque the muzzle device to approximately 30 ft lbs. Make sure the muzzle device is square against the shoulder. When setting the silencer on the muzzle device, ensure that the threads and tapers are clean. Torque the suppressor to 10 ft lbs. Ensure alignment. Enjoy. The nitride finish does lead to a tighter seal, with that said, it is extremely important to torque and rockset your muzzle device to the barrel properly.
FEATURES:
- 17-4 PH H900
- Atlas and Atlas XL Compatible
- Plan B Compatible
- Atlas XL Adapter No Overrun
- Black Nitride Finish (67 HRC Surface Hardness)
- Shims Not Included, if you would like to specifically time this, shims will be required. Note: your barrel may require a shim if the manufacturer did not put a thread relief on it.
Available options:
430111349
,
430111350
,
430111351
,
430111352
,
430111353
,
430111354
,
430111355
,
430111356
,
430111357
,
430111358
Material:
Stainless Steel
Color:
Black
Caliber:
375 Caliber
Item Length (Inches):
1.723
Model Number:
Square Shoulder
Diameter (in):
Finish:
Black Nitride
Item Weight (lbs):
0.136
Muzzle Threads:
1/2"x28
Quantity:
1
Restricted Part:
Yes
Shop All ED BROWN
FHD Flash Hider 1/2-28 Square Shoulder Black Nitride
MAP:
72.000000000
Your Price
$2,299.99 *
Crow # 430111349
MFR # 10001
UPC 850035804001
