SPB MUZZLE BRAKES
These fit the plan B type mounts. Always use an alignment rod to ensure that the entire system is set up correctly. Make sure all surfaces are cleaned and the muzzle device has been torqued and Rockset to the barrel. Use on a Q can voids your warranty, be warned.
Torque the muzzle device to approximately 15-25ft lbs. Make sure the muzzle device is square against the shoulder. When setting the silencer on the muzzle device, ensure that the threads and tapers are clean. Torque the suppressor to 10 ft lbs. Ensure alignment. Enjoy. The nitride finish does lead to a tighter seal, with that said, it is extremely important to torque and rockset your muzzle device to the barrel properly.
FEATURES:
- 17-4 PH H900
- Atlas and Atlas XL Compatible
- Plan B Compatible

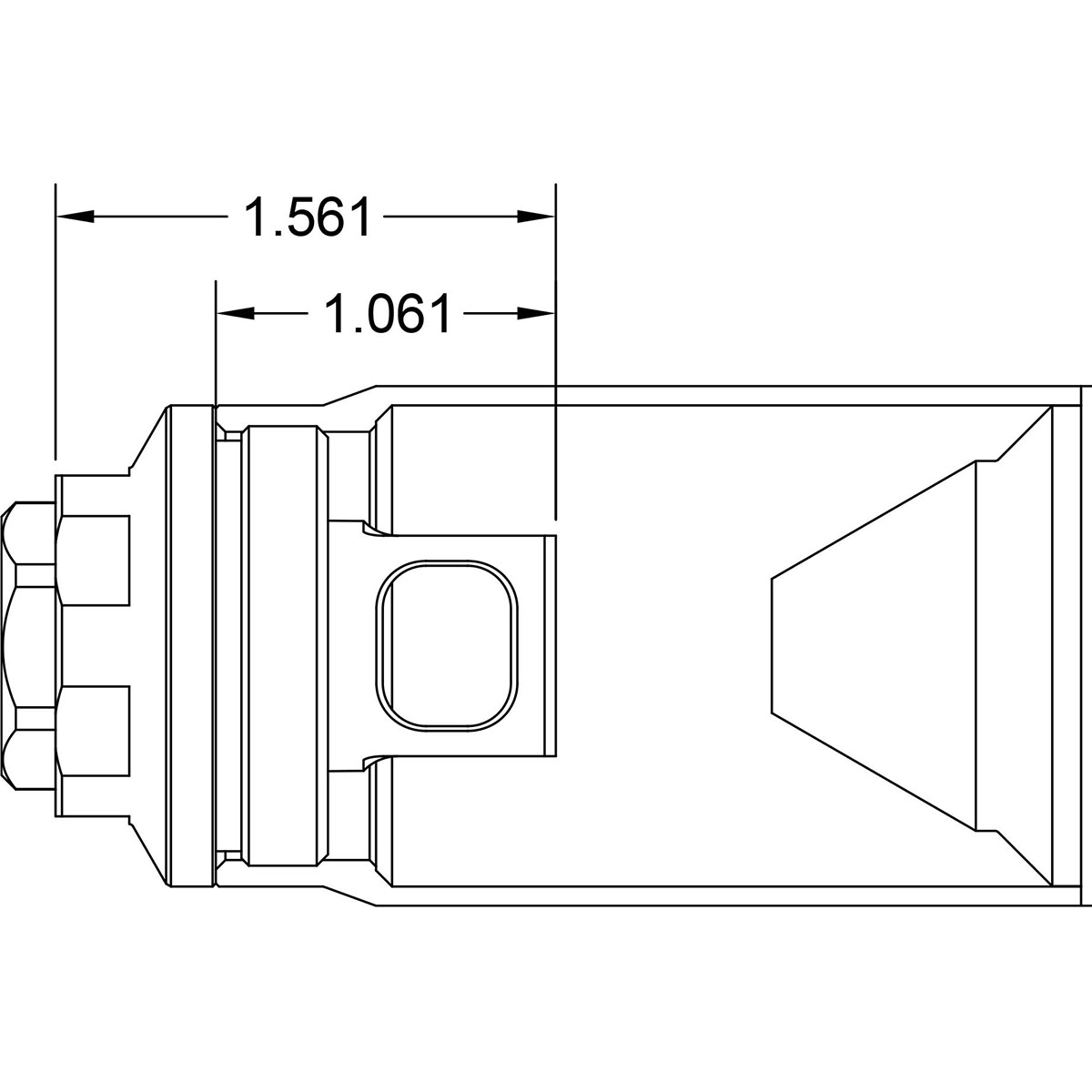

- Atlas Adapter Overrun Approximately 1.050″
- Atlas XL Adapter No Overrun
- Black Nitride Finish (67 HRC Surface Hardness)
- Shims Included* EXCEPT *Shims not included with the SR25/M110 or 11/16×24
Available options:
430111359
,
430111360
,
430111361
,
430111362
,
430111363
,
430111364
,
430111365
,
430111366
Caliber (Minimum):
Caliber (Maximum):
Finish:
Black Nitride
Caliber:
375 Caliber
Material:
Stainless Steel
Cartridge:
Muzzle Threads:
1/2"x28
Diameter (in):
Color:
Black
Item Length (Inches):
1.730
Quantity:
1
Item Weight (lbs):
0.141
Model Number:
Square Shoulder
Restricted Part:
Yes
Shop All ED BROWN

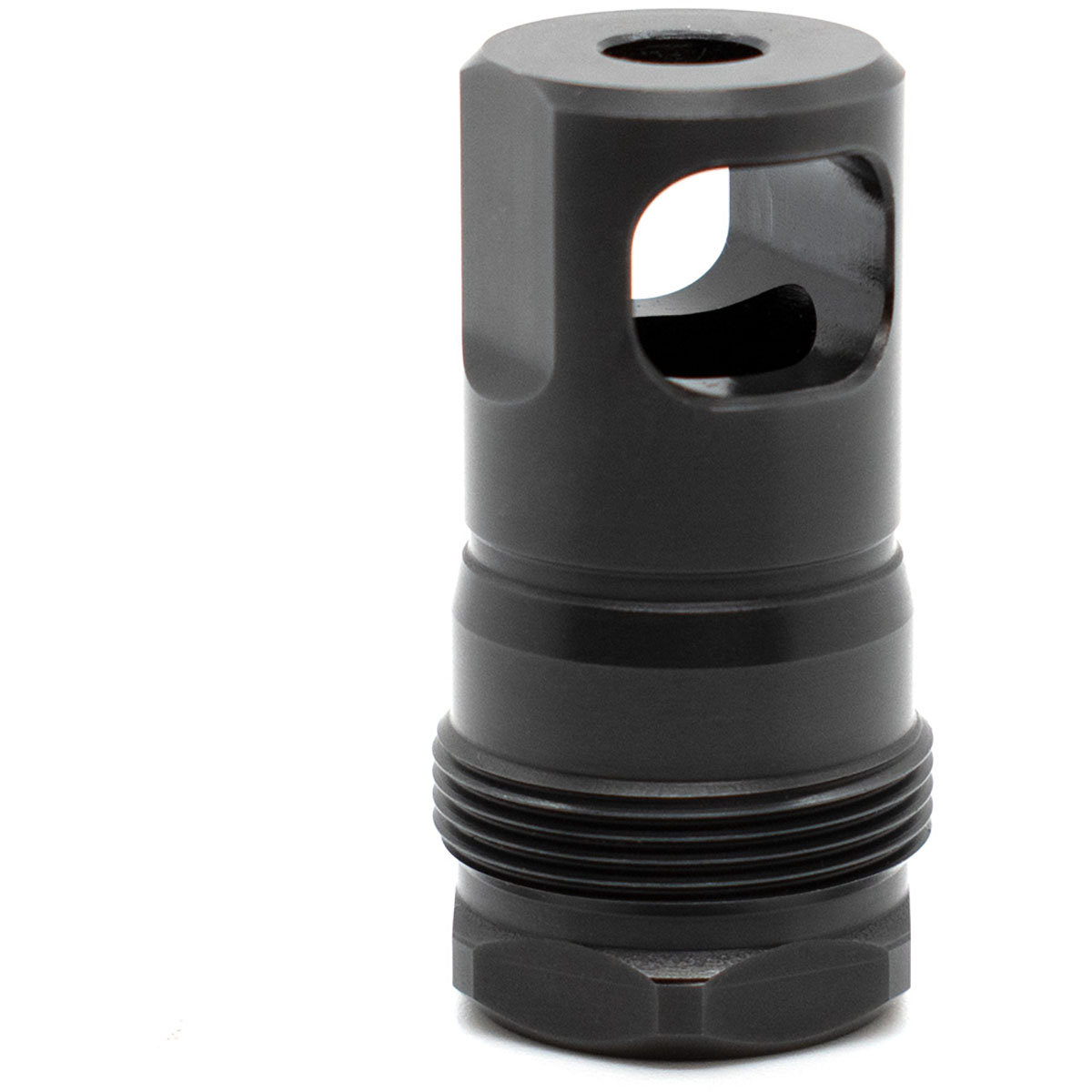

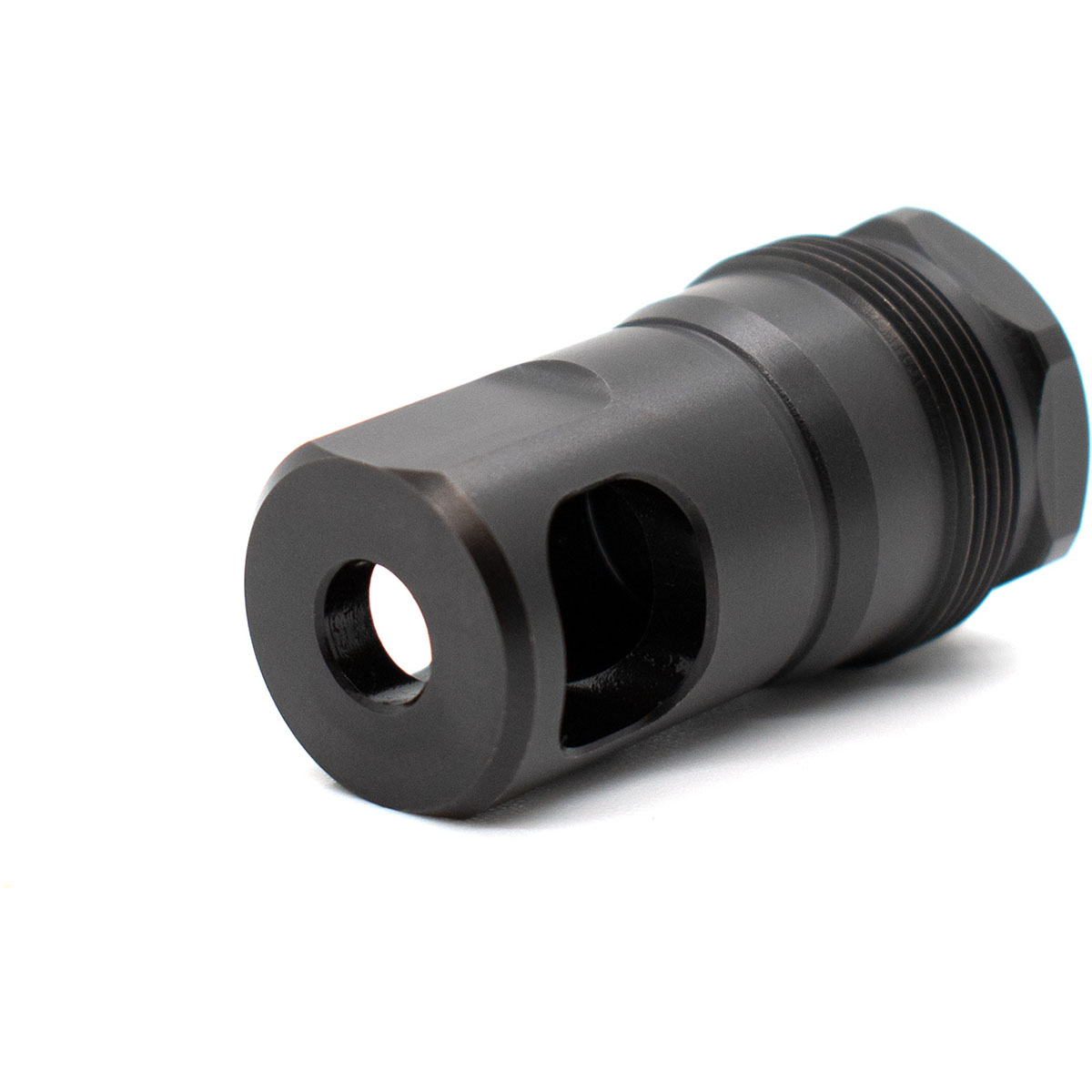

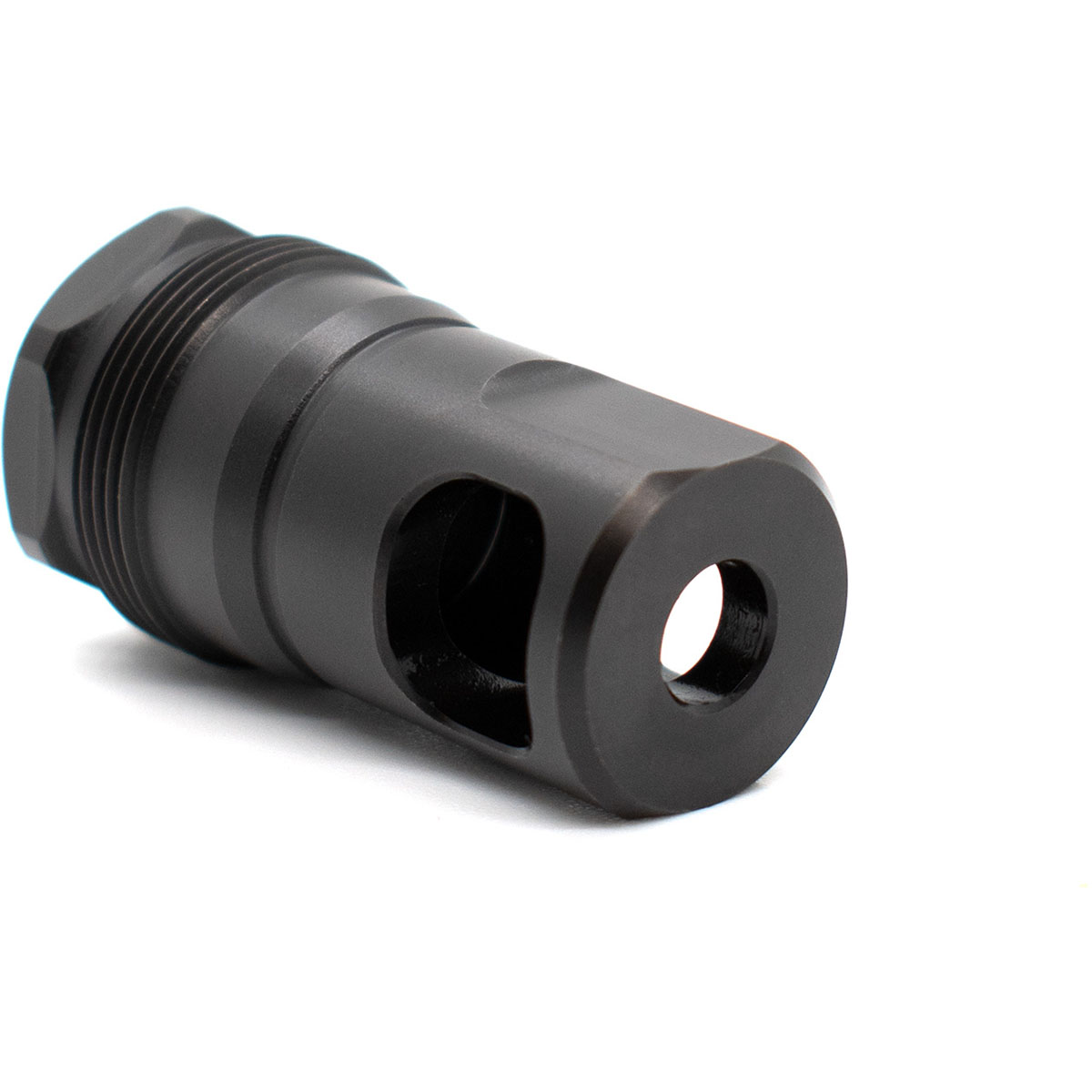

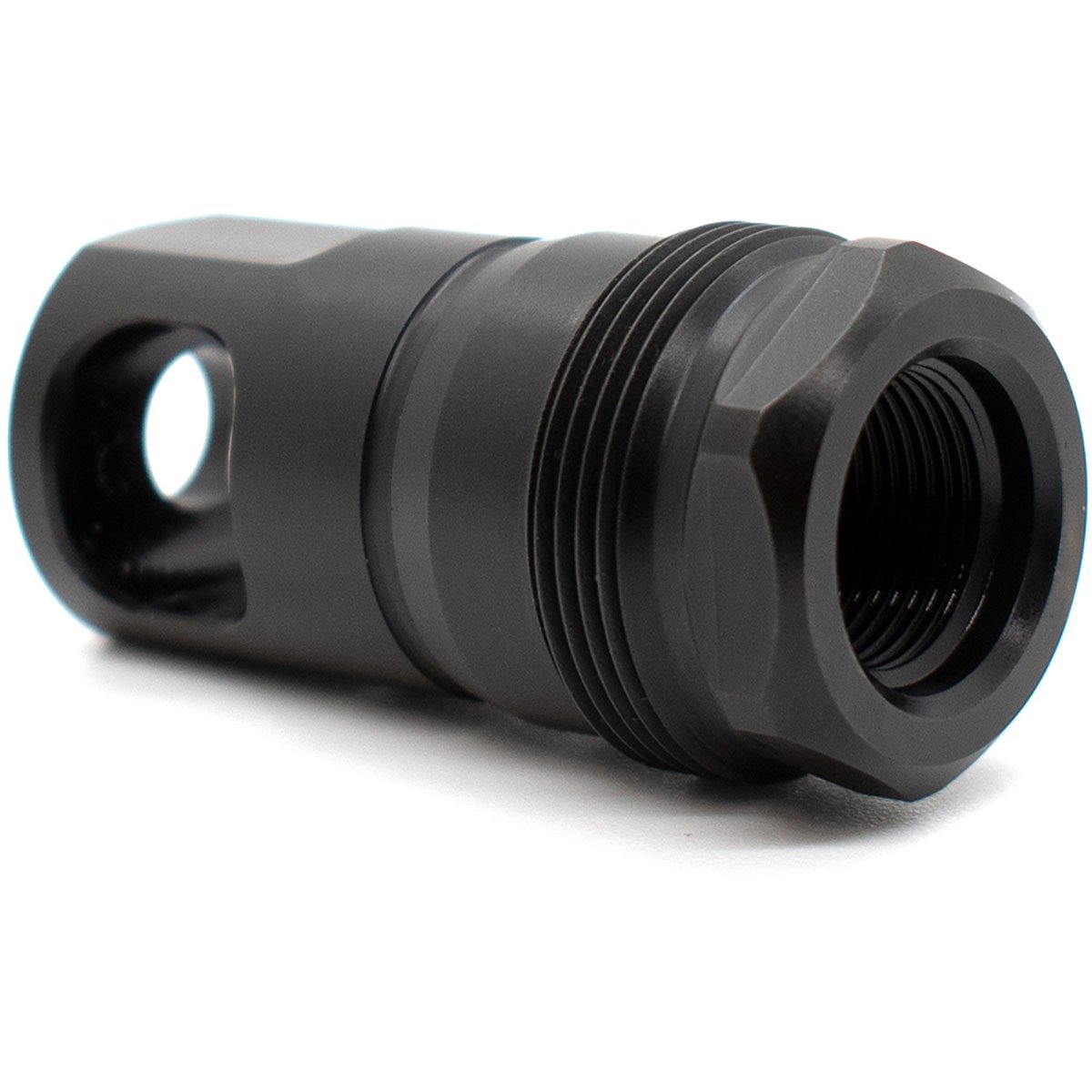

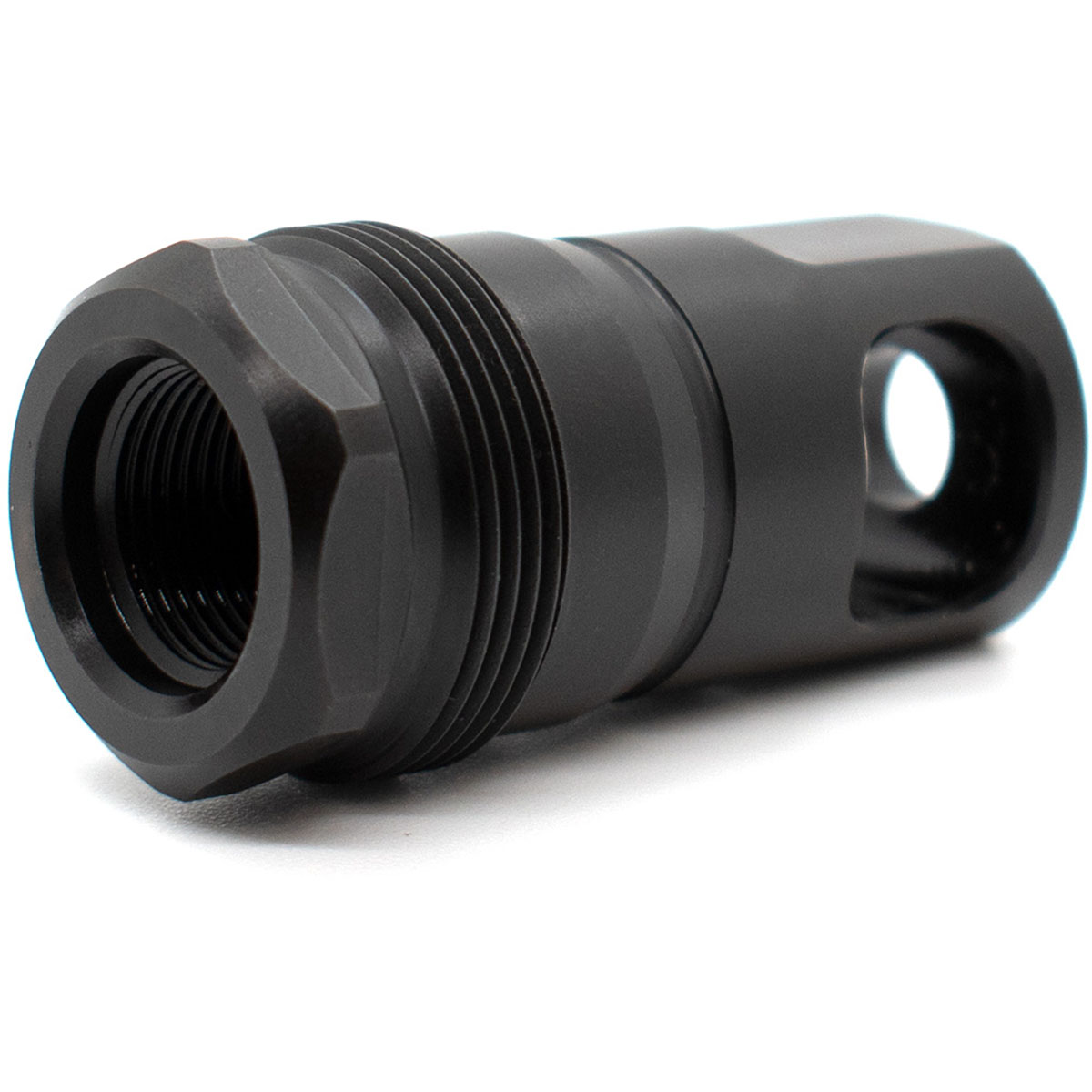

SPB Muzzle Brake 0.375 1/2-28 Threads Square Shoulder Black
MAP:
72.000000000
Your Price
$2,299.99 *
Crow # 430111360
MFR # 10006
UPC 850035804056
