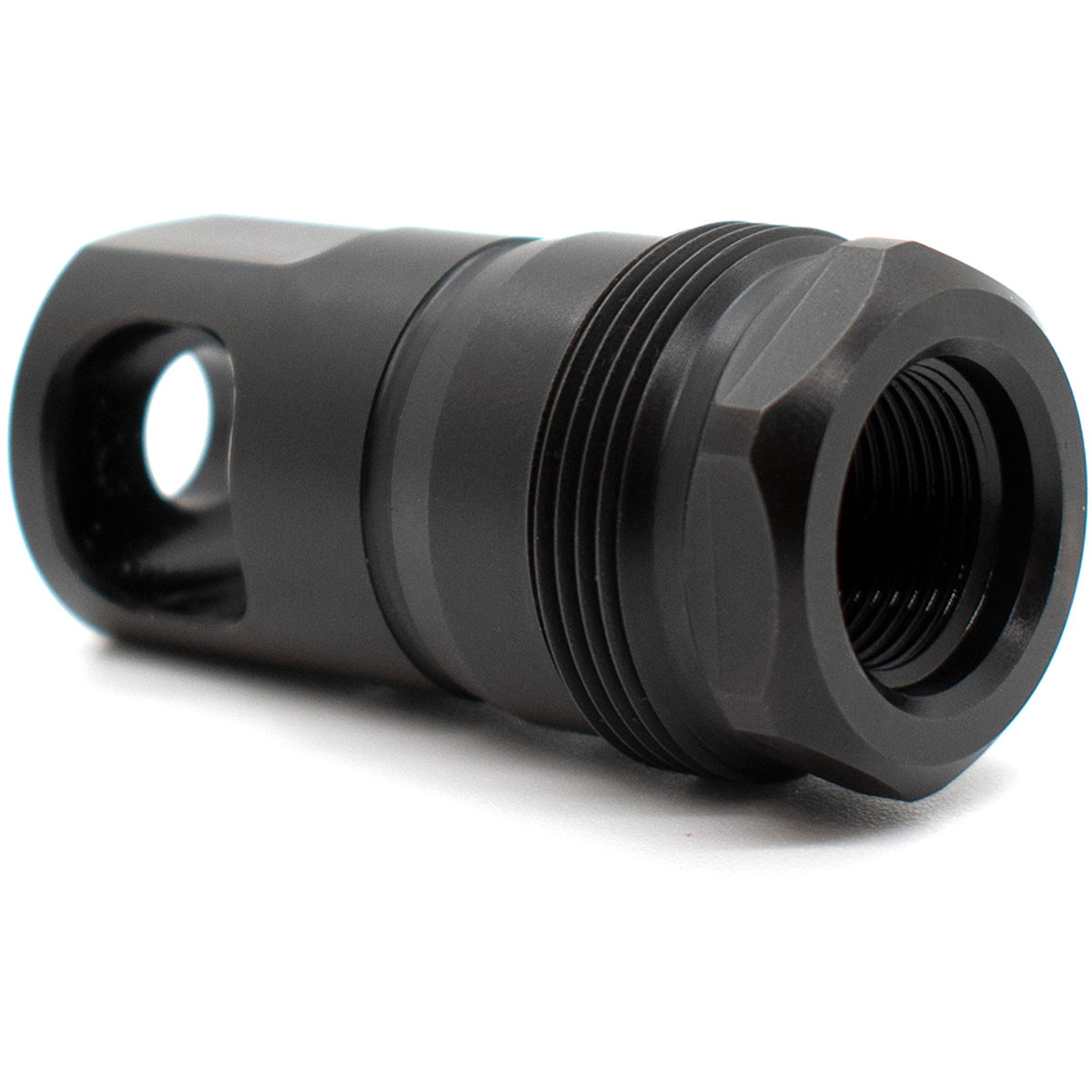

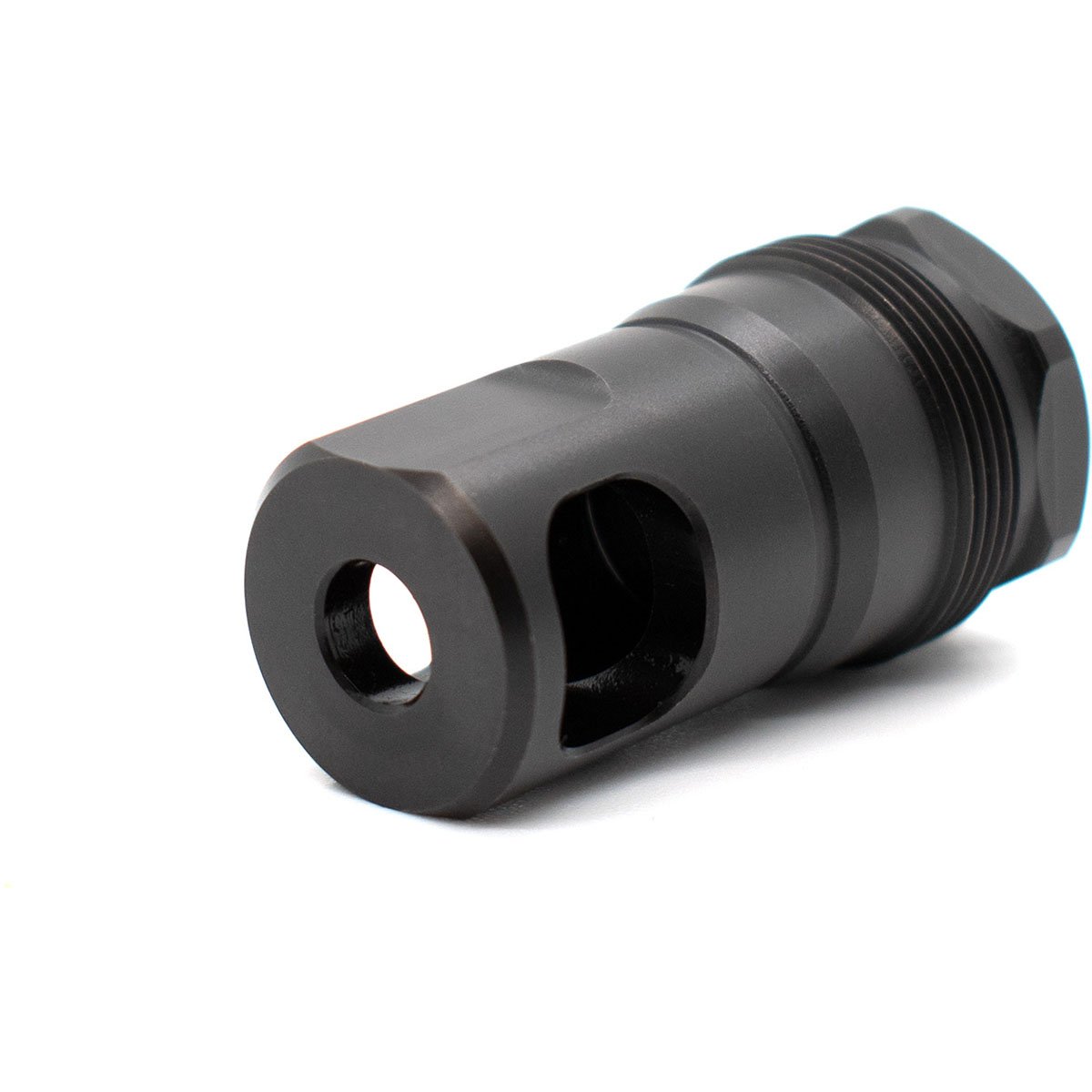

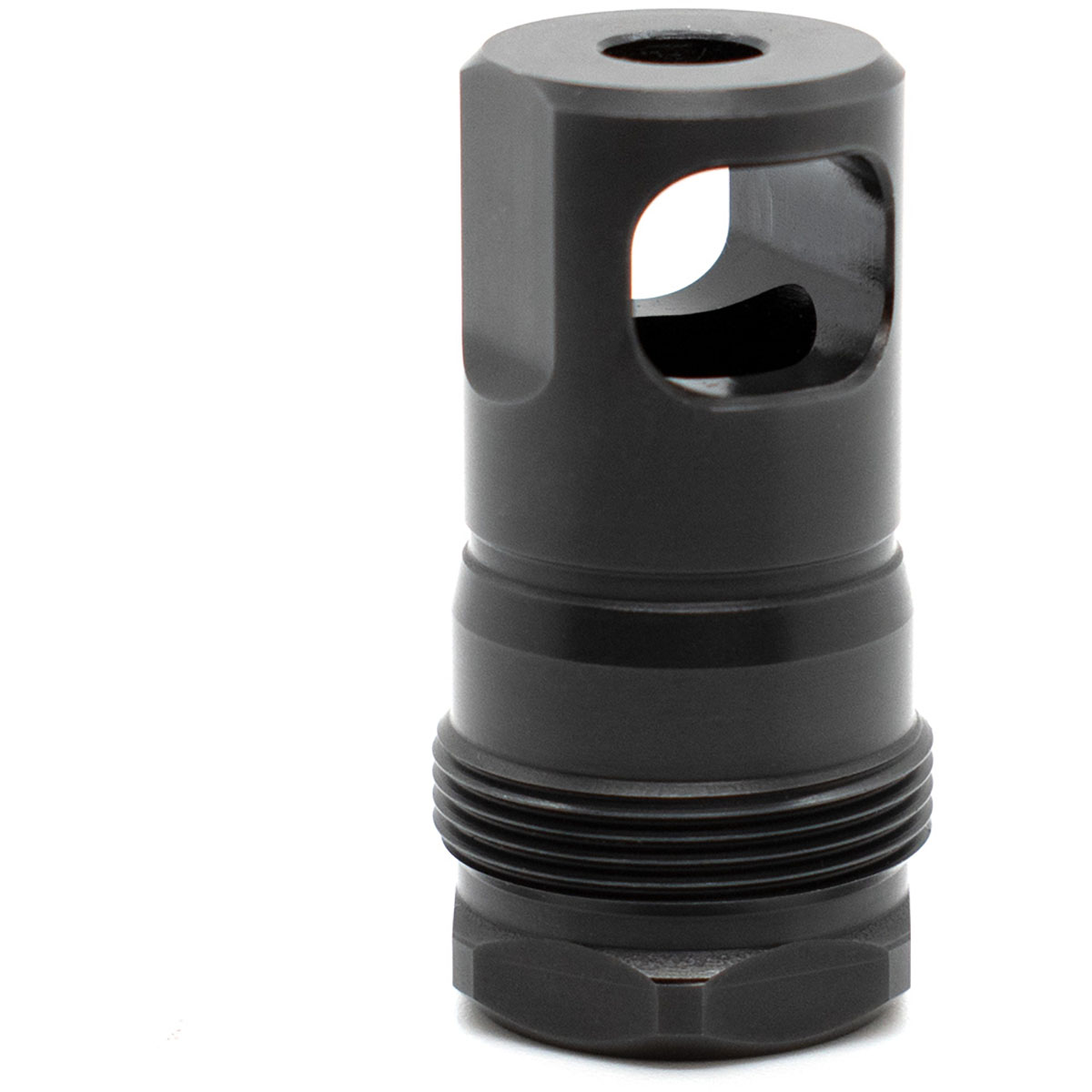

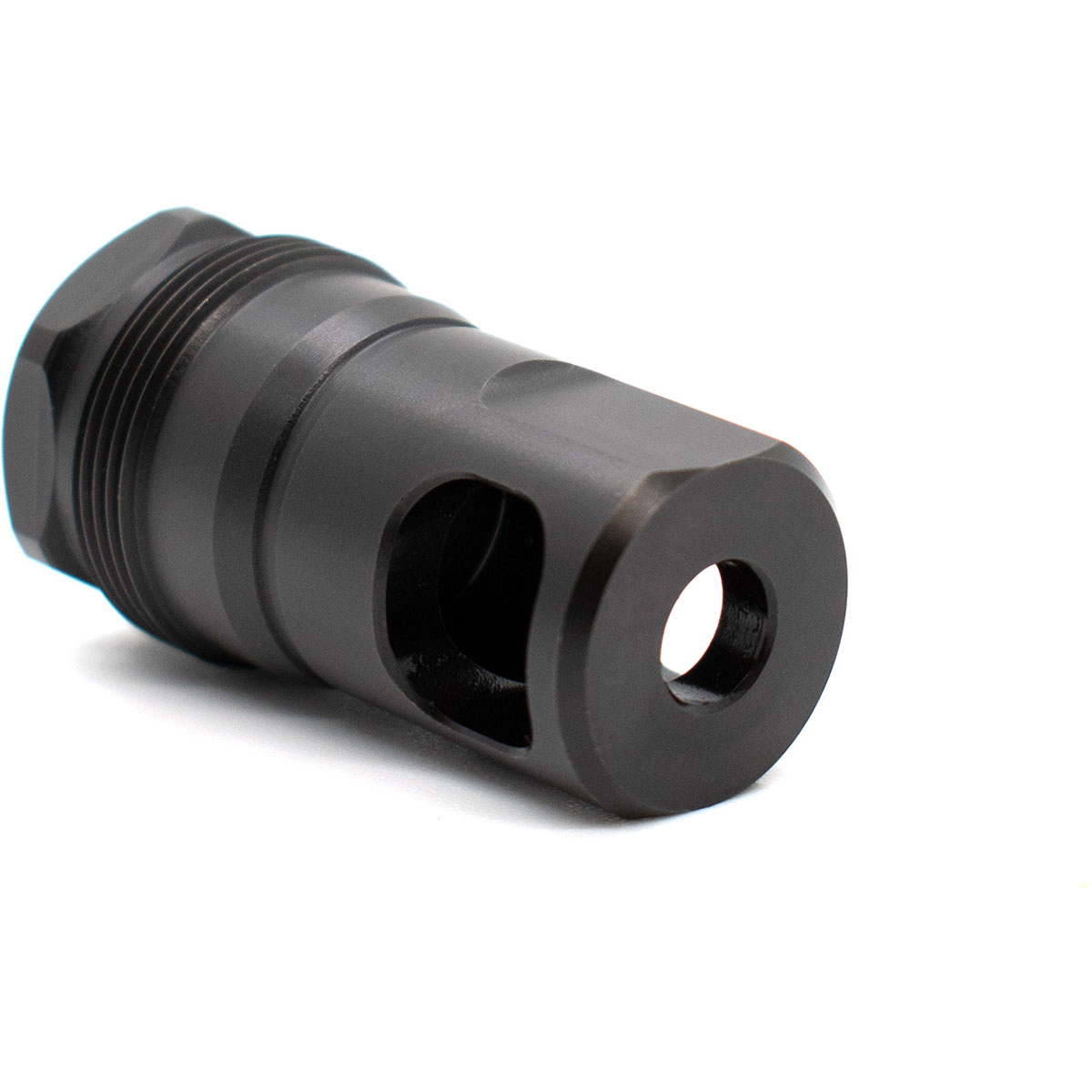

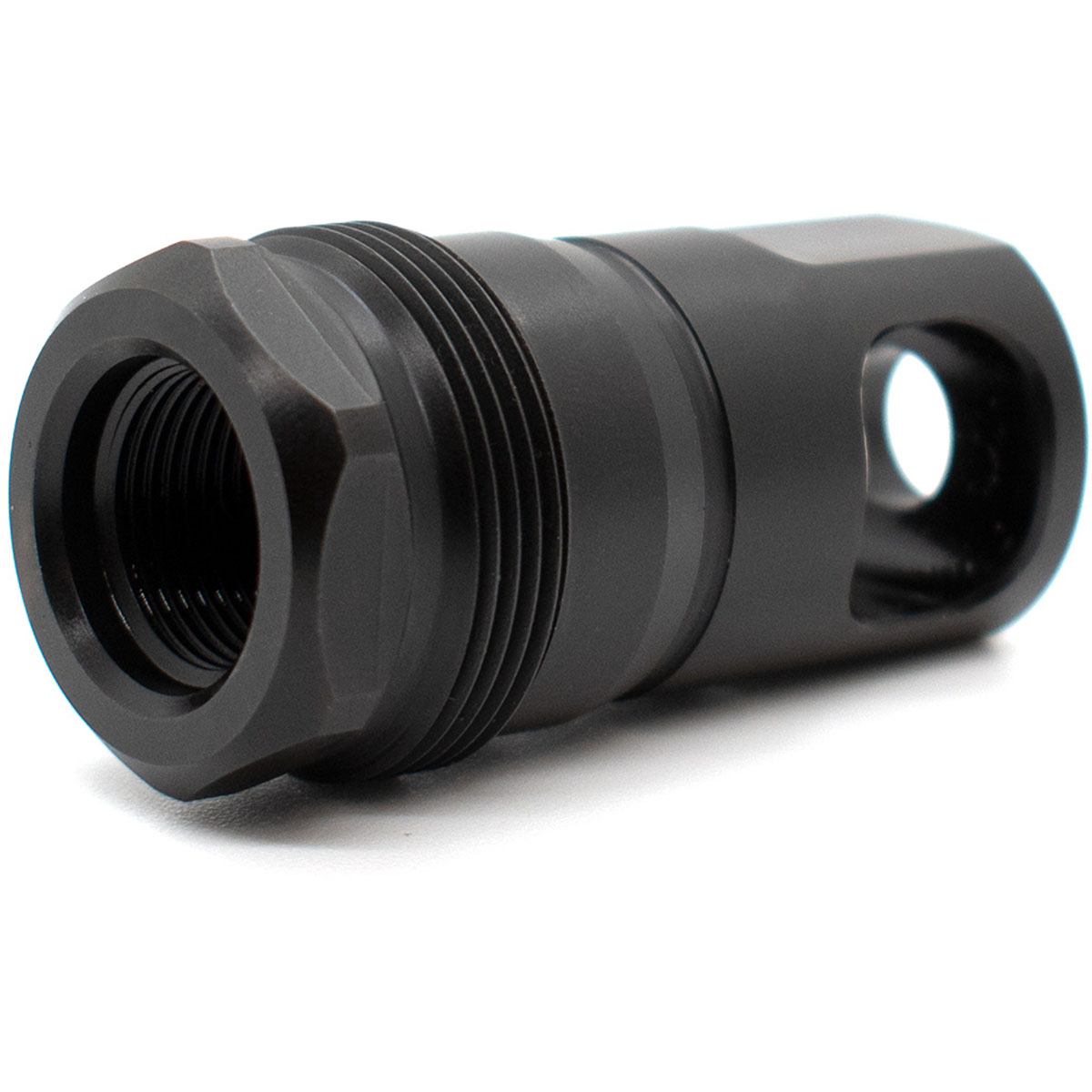

SPB MUZZLE BRAKES
These fit the plan B type mounts. Always use an alignment rod to ensure that the entire system is set up correctly. Make sure all surfaces are cleaned and the muzzle device has been torqued and Rockset to the barrel. Use on a Q can voids your warranty, be warned.
Torque the muzzle device to approximately 15-25ft lbs. Make sure the muzzle device is square against the shoulder. When setting the silencer on the muzzle device, ensure that the threads and tapers are clean. Torque the suppressor to 10 ft lbs. Ensure alignment. Enjoy. The nitride finish does lead to a tighter seal, with that said, it is extremely important to torque and rockset your muzzle device to the barrel properly.
FEATURES:
- 17-4 PH H900
- Atlas and Atlas XL Compatible
- Plan B Compatible

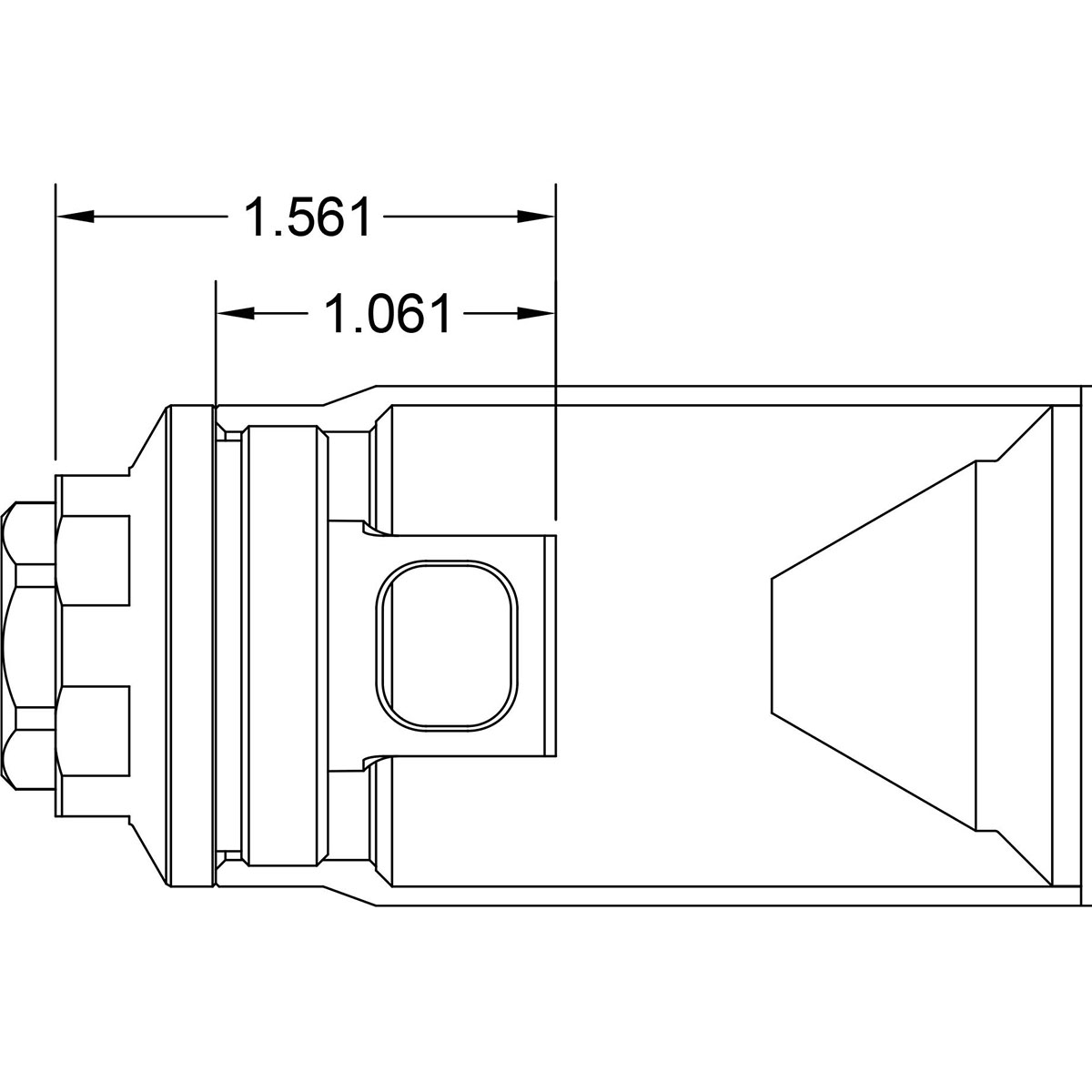

- Atlas Adapter Overrun Approximately 1.050″
- Atlas XL Adapter No Overrun
- Black Nitride Finish (67 HRC Surface Hardness)
- Shims Included* EXCEPT *Shims not included with the SR25/M110 or 11/16×24
Available options:
430111359
,
430111360
,
430111361
,
430111362
,
430111363
,
430111364
,
430111365
,
430111366

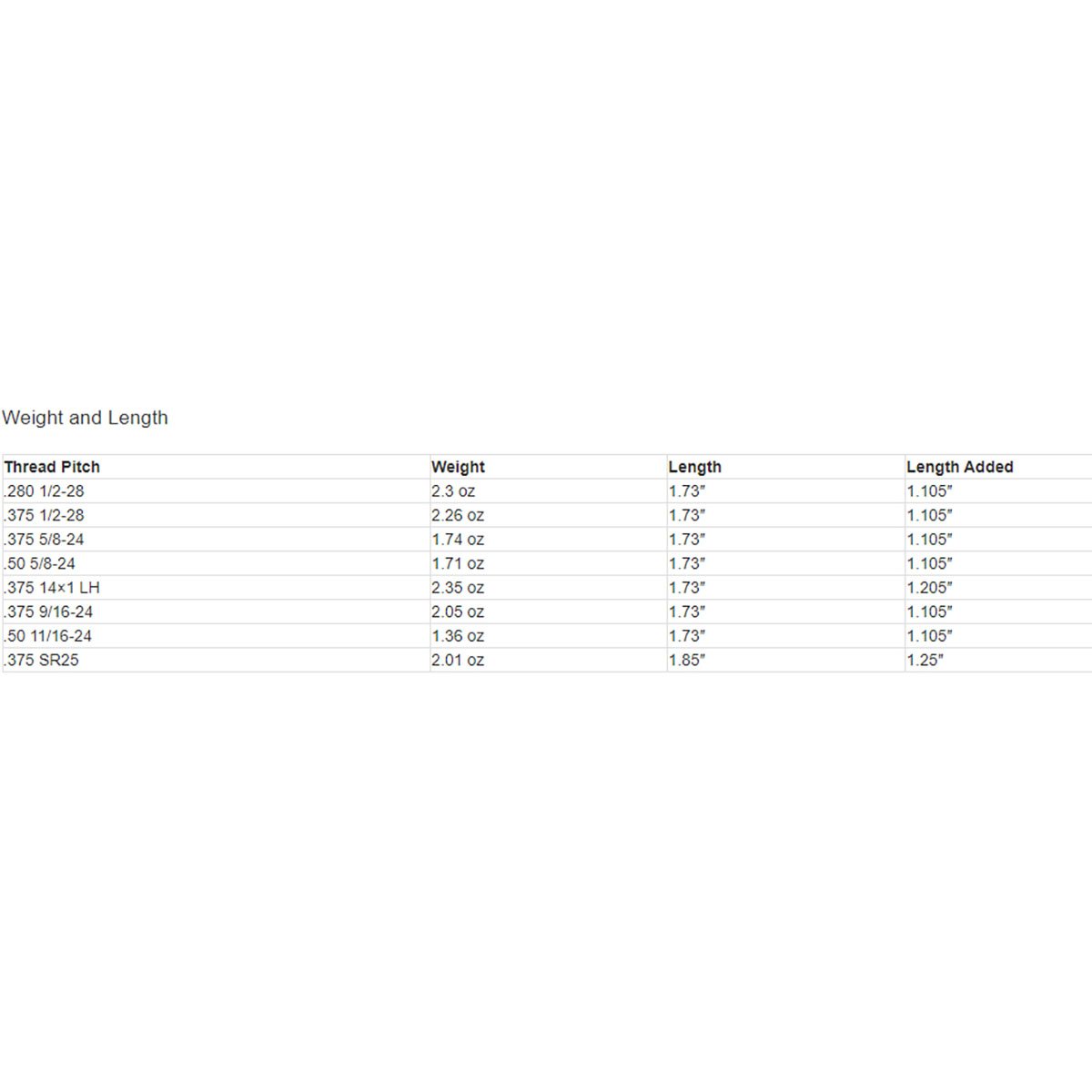

Item Length (Inches):
1.850
Caliber (Minimum):
Caliber:
375 Caliber
Cartridge:
Item Weight (lbs):
0.126
Diameter (in):
Caliber (Maximum):
Muzzle Threads:
SR25
Model Number:
Facemount Shoulder
Finish:
Black Nitride
Color:
Black
Material:
Stainless Steel
Quantity:
1
Restricted Part:
Yes
Shop All ED BROWN
SPB Muzzle Brake 0.375 SR25 Threads Square Shoulder Black
MAP:
90.000000000
Your Price
$2,299.99 *
Crow # 430111366
MFR # 10140
UPC 850041491400
