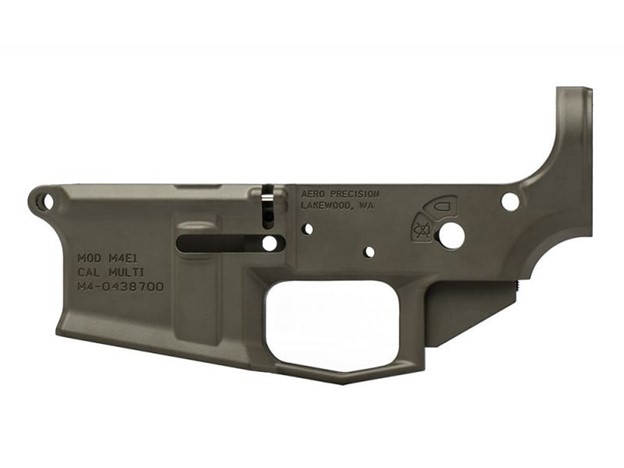

The M4E1 Lower Receiver delivers billet aesthetics in a forged package. This custom-designed enhanced forging is machined from 7075-T6 Aluminum and compatible with all mil-spec AR15 parts. Aside from the visual upgrades, this custom-engineered design provides features that challenge much more expensive billet options and simplify the assembly process for the at-home builder.
M4E1 LOWER RECEIVER IMPROVEMENTS:
- Threaded Bolt Catch Roll Pin - Allows for simple installation of the bolt catch and virtually eliminates the chance to damage the finish during installation (pin included). 1/16" Hex Key required for assembly.
- Integrated Trigger Guard - Eliminates the possibility of breaking the trigger guard tabs by integrating the trigger guard into the lower, creating a stronger more rigid platform to build upon.
- Upper Tension Screw - Allows users to fine tune the fit of the upper and lower receiver using a nylon tipped tensioning set screw inserted in the grip tang of the lower receiver. This provides a tight fit with any standard AR15 upper receiver.
- Threaded Takedown Pin Detent Recess - Allows user to easily install the Takedown Pin detent and spring with the use of a 4-40 set screw (no more launching detents across the room).
- Increased Magwell Flare - Increased the flare of the magwell to aid in quick and efficient magazine changes.
- Marked and milled to accept short-throw safety selectors, but will work with standard selectors as well.
SPECS
- Platform: AR15
- Material; Machined from 7075-T6 forged aluminum
- Markings: "Cal Multi", "M4-" Serial Number Designation
- Compatibility: Works with standard AR15 components and magazines
- Weight(s): 8.61 oz
- Other: Rear takedown pin detent hole is threaded for a 4-40 set screw. Threaded Bolt Catch Roll Pin (Included).
INCLUDES:
- Stripped M4E1 Lower Receiver
- Nylon tipped tensioning set screw
- Threaded Bolt Catch Pin
Color:
O.D. Green
Hand:
Cartridge:
Multi
Finish:
Cerakote
Material:
Aircraft Aluminum
Item Weight (lbs):
0.538
Kit:
Make Model Fit:
AR-15.Universal
Quantity:
1
Receiver Style:
Stripped
Model Number:
FFL Required:
Yes
Age restriction:
21 and above
Shop All ED BROWN
M4E1 Stripped Lower Receiver for AR-15 ODG Cerakote
MAP:
159.990000000
Your Price
$2,299.99 *
Crow # 430103050
MFR # APAR600070C
UPC 840014618293
