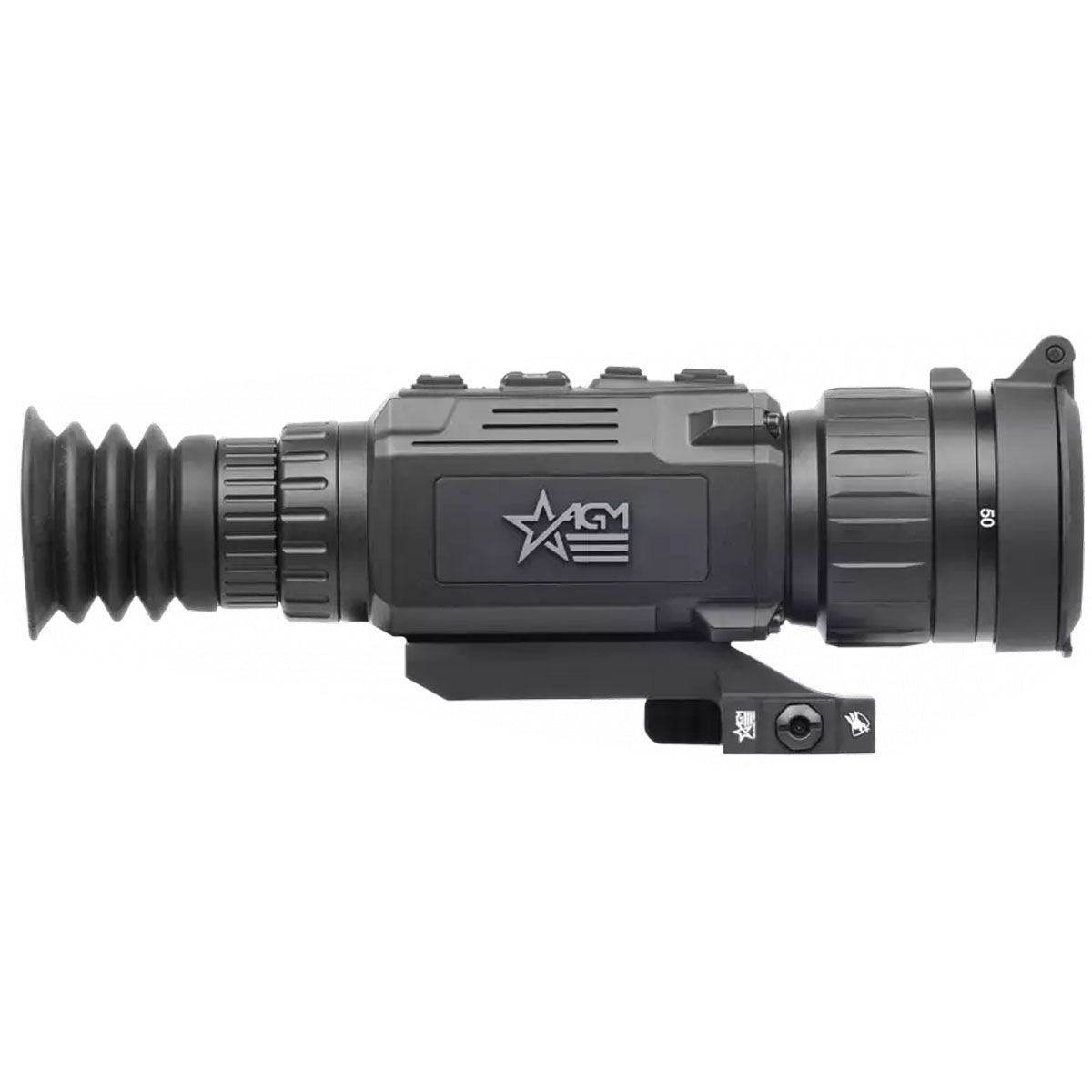

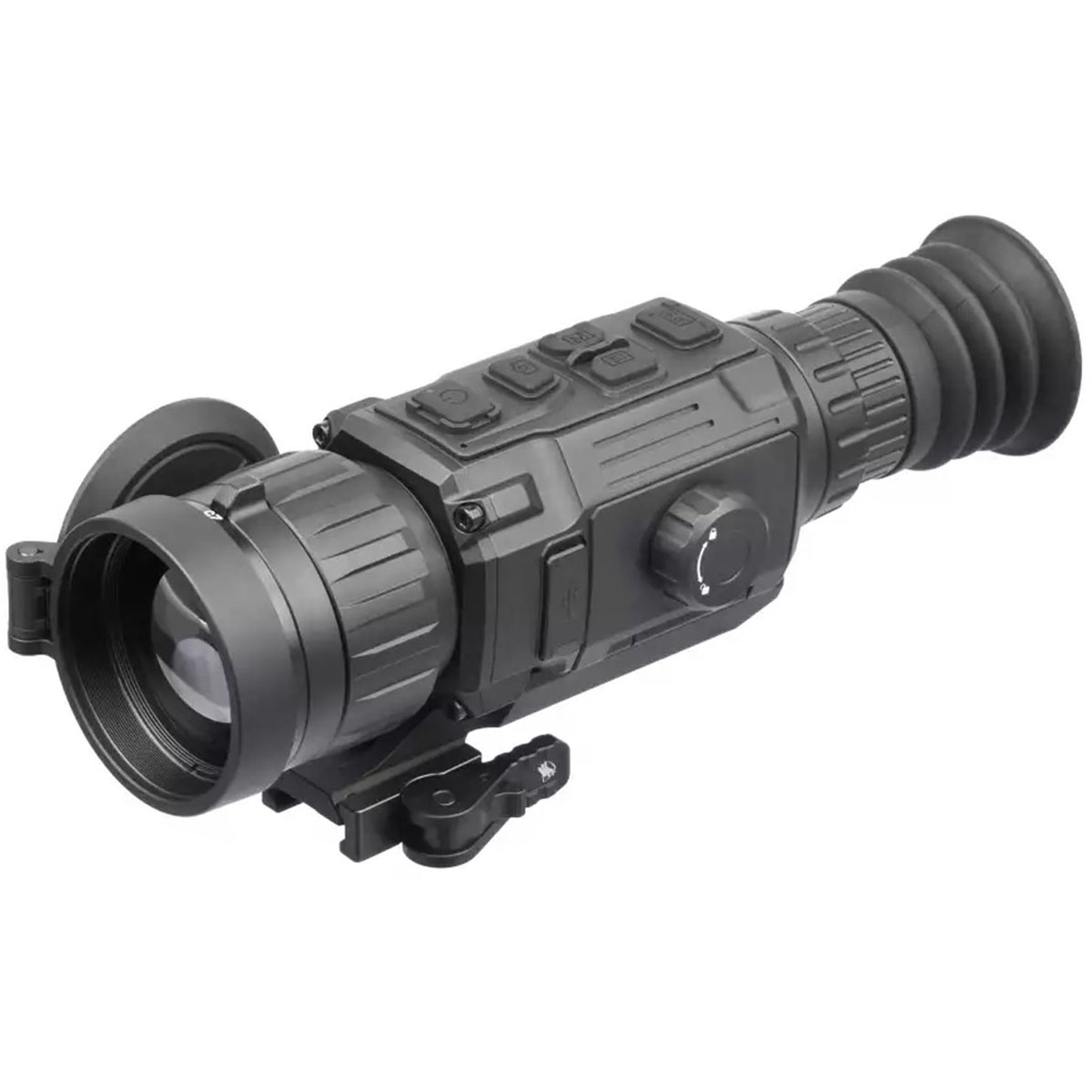

AGM GLOBAL VISION Clarion 384 Dual Focus 25/50mm 2-16x/4.5-36x Mag 384x288 SKU: 430111892

Description

CLARION 384 DUAL FOCUS 25/50MM 2-16X/4.5-36X THERMAL RIFLE SCOPE

The NEW Clarion dual base magnification thermal scope is one of the most technologically advanced thermal scopes in the world. The new Clarion scopes were meticulously designed to solve one of the biggest problems many night hunters face, which is selecting which lens size/sensor configuration will provide the optical base magnification and field of view for each hunter’s primary application. The Clarion alleviates this concern by incorporating a dual-lens optical system that has the ability to mechanically alternate between a 25mm lens or a 50mm lens. This feature alters the base magnification and field of view with no degradation of the image resolution!

With the Clarion 384, Night Hunters can now use the benefits of a 25mm lens with a base magnification of 2x and a wider FOV (10.5° × 7.9° or 53 ft @ 100 yards) then quickly switch to a 50mm lens with a base magnification of 4.5x and a narrower FOV (5.3° × 4.0° or 27 ft @ 100 yards) to really make sure your positive identification and shot placement is on point!

This dual base magnification flexibility is a new evolution in electro-optics and it will provide hunters with the versatility to optimize their optic for the specific geography and animals which they are hunting whether it be hogs in the eastern fields, or coyotes in the western deserts!

This new design is also paired with the most sensitive thermal sensor temperature rating in its class, coming it at a mind-bending sub-20 milikelvin.

Although the Clarion implements an advanced new optical system, they didn’t cut any corners with any of the design elements that hunters have come to expect from the AGM brand, including: high-quality 384x288 12-micron thermal sensor, removable rechargeable battery, up to 11 hours of continuous battery life on a single charge (2 batteries included), 10 internal reticle options, 5 different customizable zeroing profiles, 10 different brightness and contrast settings, wifi hotspot capability, built-in recording w/sound and image capture storage, AGM Connect app compatibility, 4 different reticle colors, 4 color palettes, 5 image sharpness settings and a high-quality American Defense mount which work well with both AR and bolt-action shooting platforms.

Warning: California's Proposition 65

FEATURES:

Dual focus objective lens - 25mm/50mm
12μm thermal detector
Superior sub-20 milikelvin thermal sensitivity
Fast 50Hz imaging
High resolution OLED display
Adjustable color palettes
Various reticle types and colors
1x, 2x, 4x, 8x digital zoom
On-board video/audio recording and image capture
Built-in EMMC storage (16 GB)
Shot Activated Recording (SAR)
Wi-Fi data transmission
Stadiametric rangefinder
Standby mode
11 hours battery life (depending on model)
External power supply compatibility
Waterproof & shockproof
5-year warranty

SPECIFICATIONS:

Dimensions: 241 × 73 × 67 mm (9.5 × 2.9 × 2.6 in)
Palettes: Black hot, White hot, Red hot, Fusion
Exit Pupil Diameter: 6 mm
Reticle: 10 types, 4 colors, on/off
Boresight Adjustment: Digital Controlled
Distance Measurement: Yes (Stadiametric)
Scene Mode: Cold, Warm
Picture In Picture Mode (PIP): Yes
Video Recording: Yes
Magnification: 2× - 16× / 4.5× - 36×
Detector type: 12μm VOx Uncooled Focal Plane Array
FFC (Flat Field Correction): Yes
Standby Mode: Yes
Refresh rate: 50 Hz
Resolution: 384 × 288
Detection Range (6' object): 1200 m/yd / 2600 m/yd
Lens system: 25 mm; F0.8 / 50 mm; F1.0
NETD: Less than 20 mK (25°C, F# = 1.0)
Protection level: IP67
Field of view (H × X): 10.5° × 7.9° / 5.3° × 4.0°
Digital zoom: 1×, 2×, 4×, 8×
Diopter adjustment range: -5 to +5 diopters
Focusing range: 4 m to infinity / 10 m to infinity
Hot Track: Yes
Eye relief: 45 mm
Display: 0.39-inch, OLED, 1024×768
Storage: Built-in EMMC (16 GB)
Capture Snapshot: Yes
Battery Type: Replaceable and Rechargeable Li-ion Battery
Wi-Fi: Yes
Battery Life (Operating): ≥ 11 h (25°C, hotspot off)
External power supply: 5 VDC, 2 A, USB Type-C
Weight: 0.75 kg (1.65 lb)

INCLUDED IN BOX:

Thermal Imaging Rifle Scope
Mount
Two Rechargeable Battery
Charger
USB Cable
Lens Cloth
Manual
Carrying Case

Specifications

Battery Type:

Rechargeable

Battery Life (Maximum):

11

Item Width (Inches):

2.600

Battery Life (Minimum):

Max Magnification:

36

Color:

Black

Quantity:

1

Frame Rate:

50

Model Number:

Item Length (Inches):

9.500

Thermal Range; Recognition:

Item Height (Inches):

2.900

Optic Resolution:

384x288

Min Magnification:

2

Thermal Range; Identification:

Item Weight (lbs):

1.680

Thermal Range; Detection:

2600

Objective Size:
