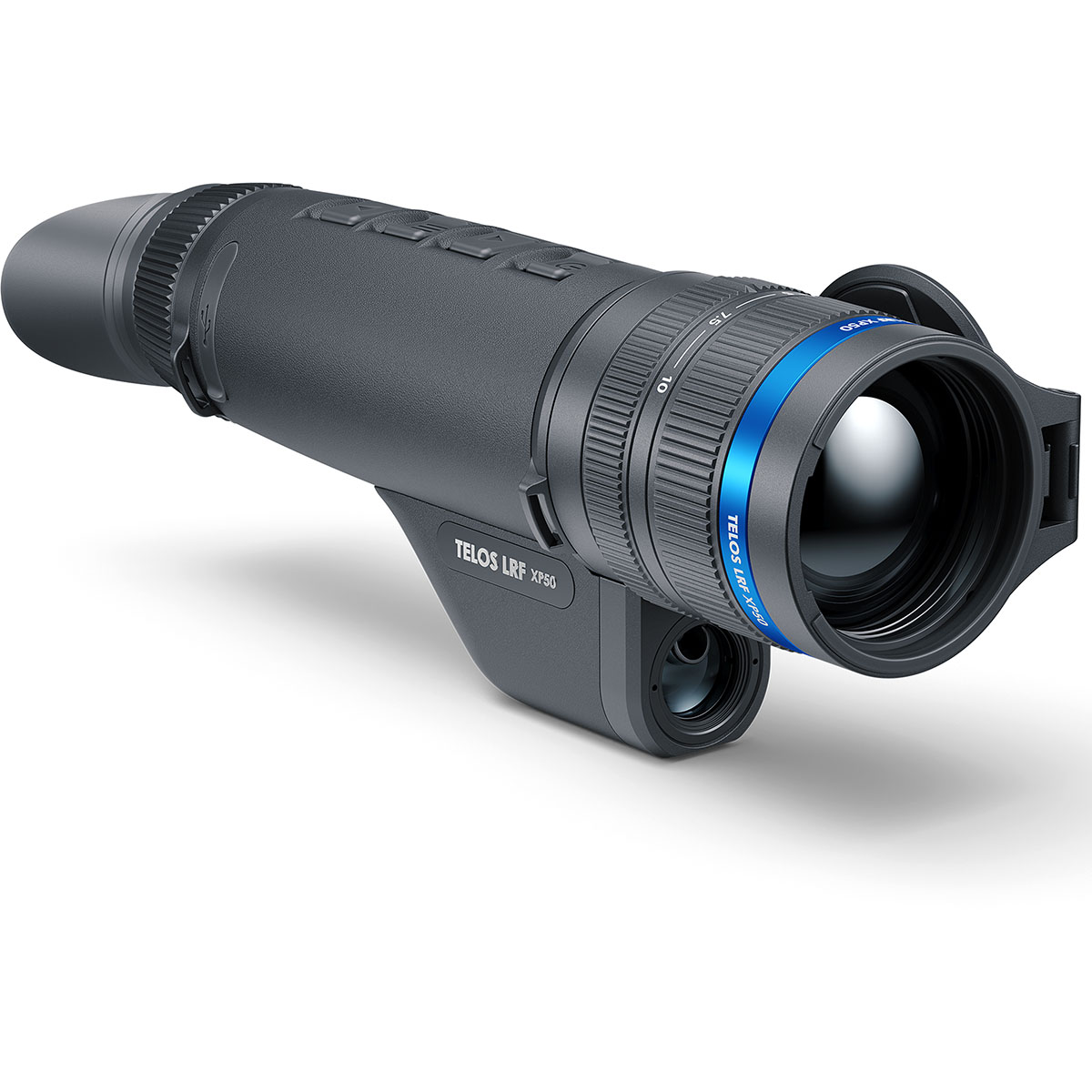

PULSAR Telos LRF XP50 2.5-10 Mag 17-Micron 640x480 Res 50Hz w/Laser SKU: 430112015

Description

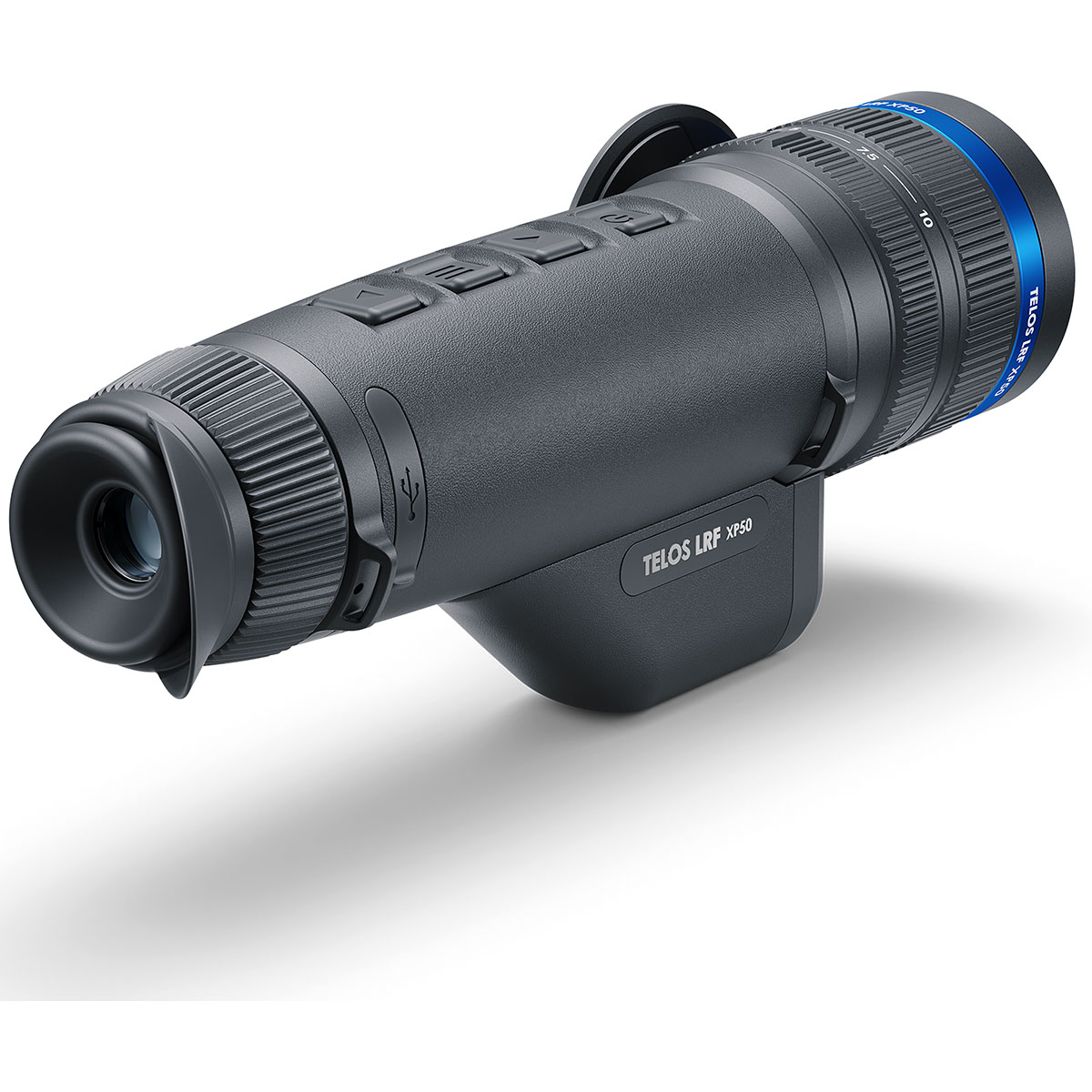

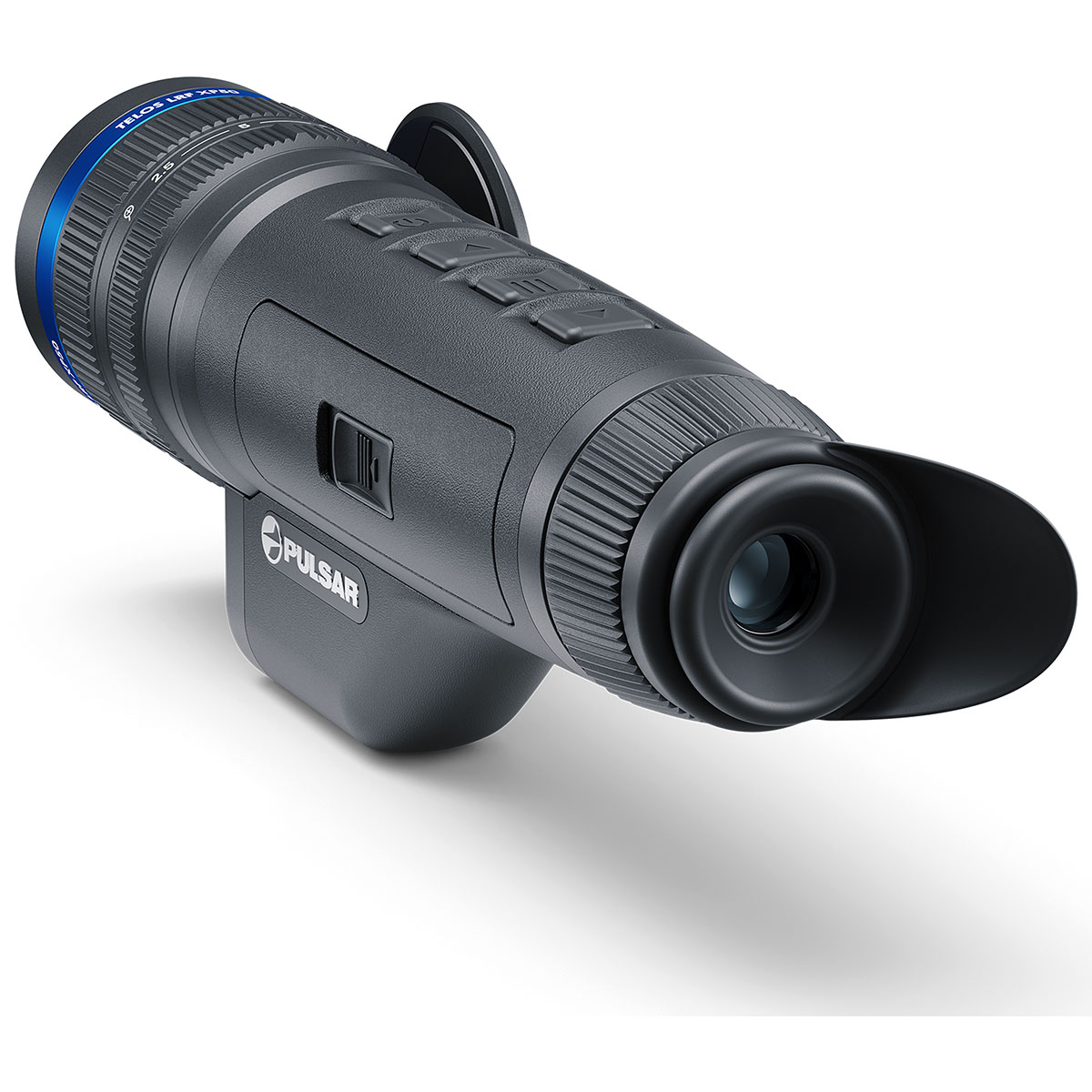

Pulsar is once again at the forefront of innovation with the new Telos LRF XP50 digital thermal monocular. The rapid rate of technological advancement in today’s world requires modularity and precision. Pulsar has designed its new Telos LRF XP50 with this in mind. With components and parts that are capable of being upgraded and customized according to the user’s needs, the new Telos LRF XP50 ensures cutting-edge thermal technology is at your fingertips for years to come.

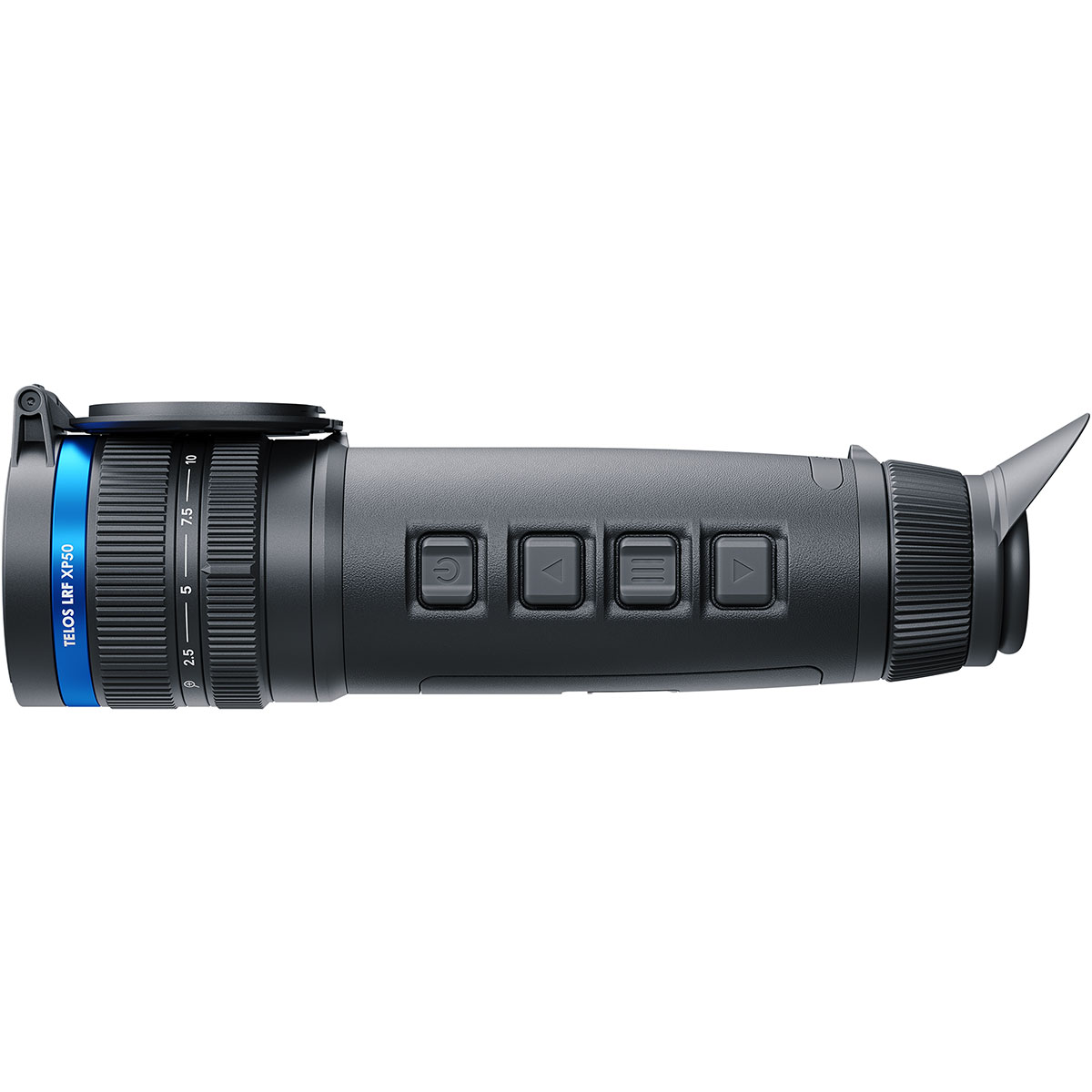

The Telos LRF XP50 stands as an extremely powerful optic. With an industry leading <18mk netd sensor and enhanced image processing algorithms, this extremely powerful thermal monocular gives users highly refined details, even in the toughest conditions. for the first time in a pulsar product, the telos lrf xp50’s adjustment rings allow users to gradually zoom in and focus in one fluid motion. this fine camera-like digital control system allows smooth magnification adjustments and pristine quality even at high magnifications.>

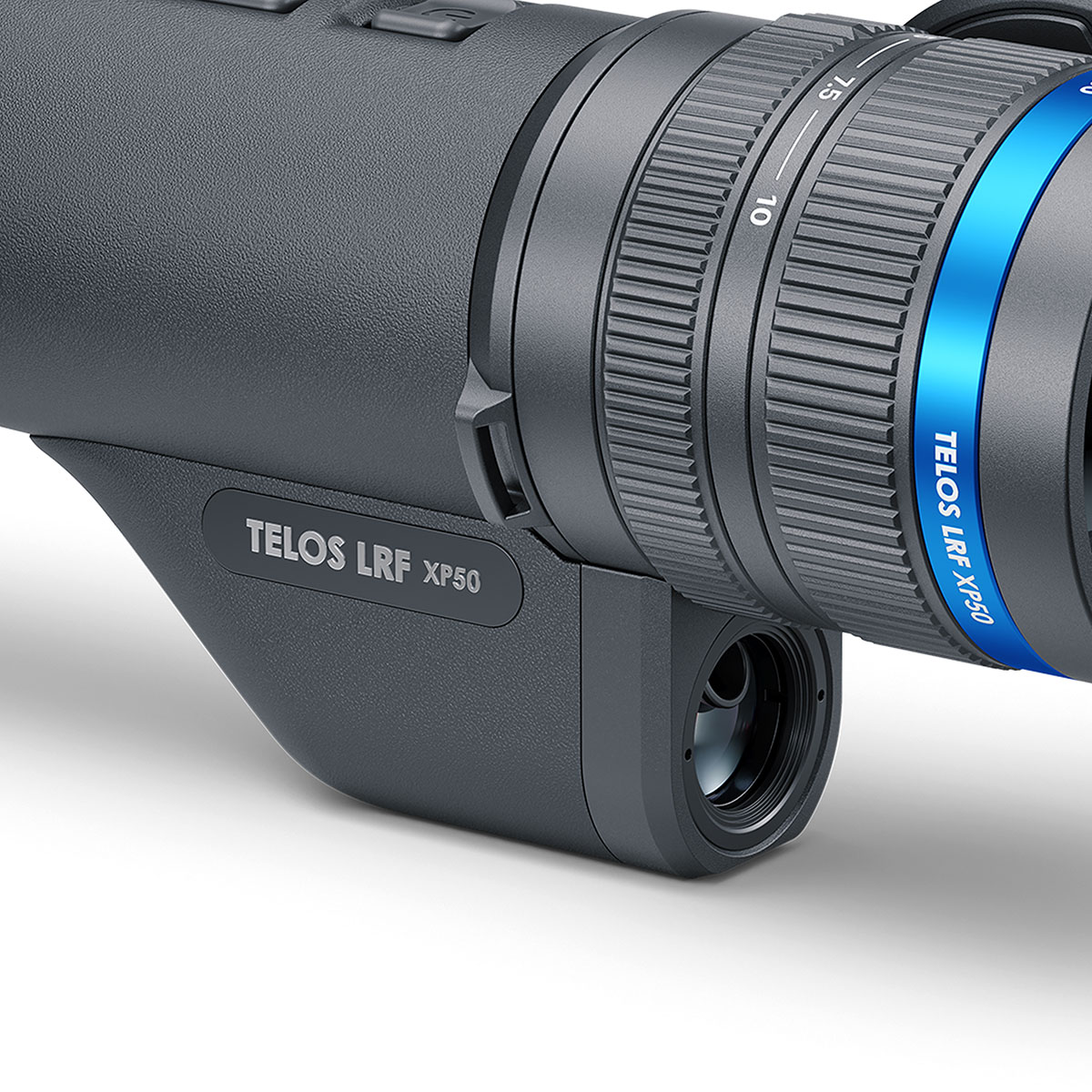

Further enhancing its long-range viewing abilities, the Telos LRF XP50 has a detection range of more than 1,900 yards, capable of detecting human-sized heat sources in the harshest weather. Its built-in laser rangefinder has a range of 1,000 yards, helping users survey areas and target objects within a practical accuracy of 1 yard.

The Telos LRF XP50 pro is also built to last. From arctic conditions to wetland swamps, this unit continuously provides reliable heat detection. With a temperature resistance of -13° to 104° F, the Telos can survive anywhere from the snowfields of Alaska to the rocky wastes of the Mojave. Outfitted with a brand new LPS 7i quick-charge Lithium-ion battery, the Telos LRF has more than 8 hours of battery life and can be charged with any USB-C compatible charging device, including common cellphone chargers. The LPS 7i also supports wireless charging.

Designed for longevity and crafted with care and precision, Pulsar’s Telos LRF XP50 is the only thermal monocular you will ever need.

MAIN

Sensor: 640x480 pix. @ 17 µm (NETD <18 mk)>
Objective lens: F50 / 1.0
Magnification: x2.5 – 10 (x4 digital zoom)
Field of view (HxV), degrees / m @ 100 m: 12.4x9.3 / 21.8x16.3
Detection range: 1800 m

SENSOR

Type: uncooled
Resolution, pixels: 640x480
Pixel pitch, µm: 17
NETD, mK: <18>
Frame rate, Hz: 50

OPTICS

Objective lens: F50 / 1.0
Magnification: x2.5 – 10 (x4 digital zoom)
Field of view (HxV), degrees / m @ 100 m: 12.4x9.3 / 21.8x16.3
Eye relief, mm: 14

DISPLAY

Type: AMOLED HD
Resolution, pixels: 1024x768

RANGE PERFORMANCE

Detection range: 1800 m

LASER RANGEFINDER

Safety class for laser equipment according to IEC 60825-1:20141
Wavelength, nm: 905
Max. measuring range, m: 1000
Measurement accuracy, m: ±1

VIDEO RECORDER

Video / photo resolution, pixels: 1024x768
Video / photo format: .mp4 / .jpg
Built-in memory, GB: 64

WI-FI

Wireless Protocol: Wi-Fi
Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz: 2.4 / 5

ENVIRONMENTAL CHARACTERISTICS

Degree of protection, IP code (IEC60529): IPХ7 (waterproof)
Operating temperature range, °С: -25 – +40

CONNECTIONS AND COMPATIBILITIES

Mount, type: 1/4"
Supported Application: Stream Vision 2

POWER SUPPLY

Output voltage, V: 3.0 – 4.2
Battery type: LPS 7i Li-Ion Battery Pack
Capacity, mAh: 6400
Operating time on battery pack (at t=22°C), h: 8.5
External power supply, V: 5V, 9V (USB Type-C Power Delivery)

WEIGHT & SIZE

Body material: rubber armored reinforced plastic
Dimensions, mm: 238x72x90
Weight, kg: 0.58 (w/o battery) / 0.72 (with the LPS7i battery)

Specifications

Battery Life (Minimum):

Battery Life (Maximum):

8.5

Battery Type:

LPS 7i

Item Width (Inches):

7.500

Frame Rate:

50

Color:

Black

Item Weight (lbs):

2.100

Max Magnification:

10

Item Height (Inches):

4.000

Item Length (Inches):

12.000

Material:

Aluminum

Objective Size:

Min Magnification:

2.5

Model Number:

TELOS LRF XP50

Thermal Range; Identification:

Quantity:

1

Optic Resolution:

640x480

Thermal Range; Detection:

1970

Thermal Range; Recognition:
