PULSAR Thermion Duo DXP55 2-16x/4-32x Mag 640x480/3840x2160 50Hz SKU: 430112013

Description

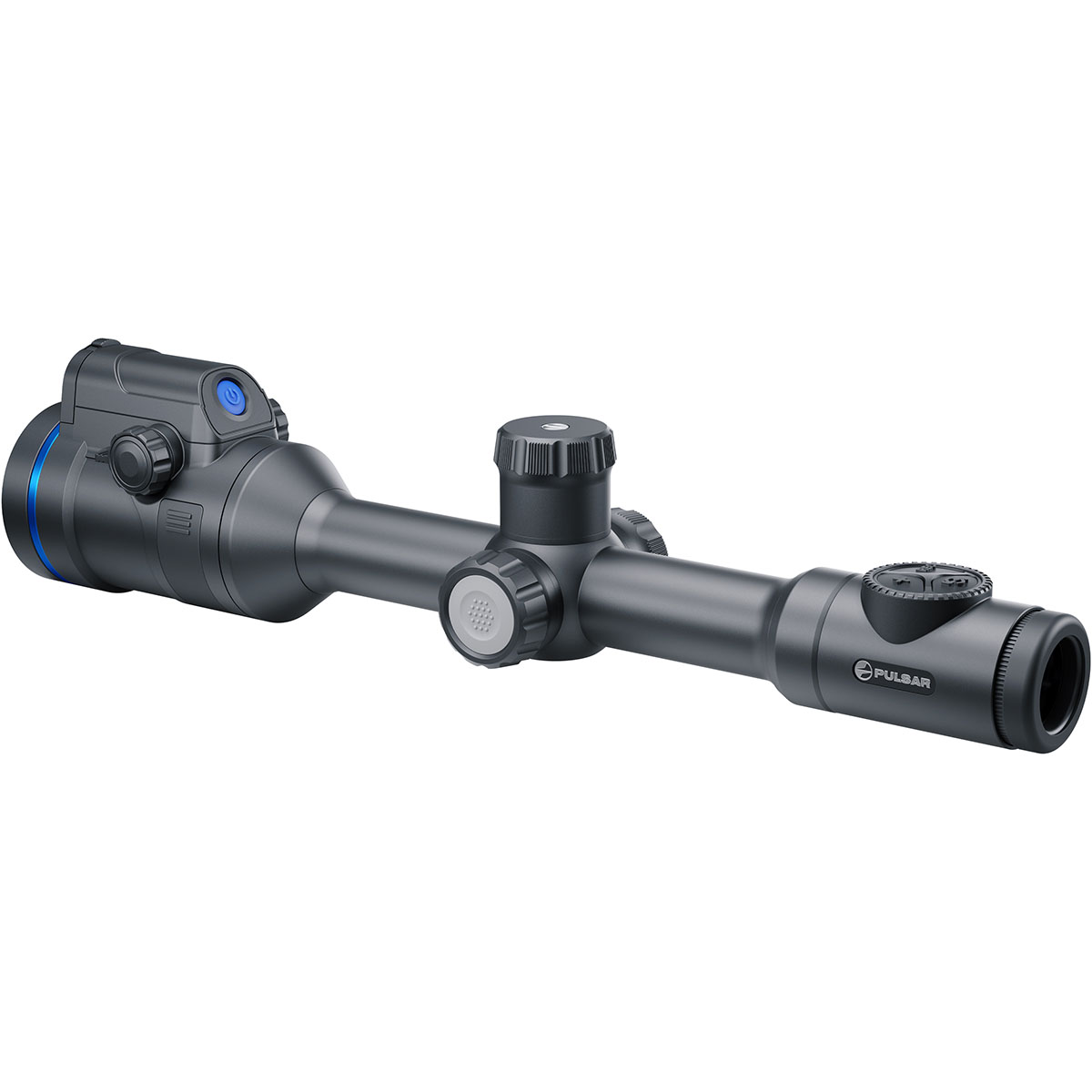

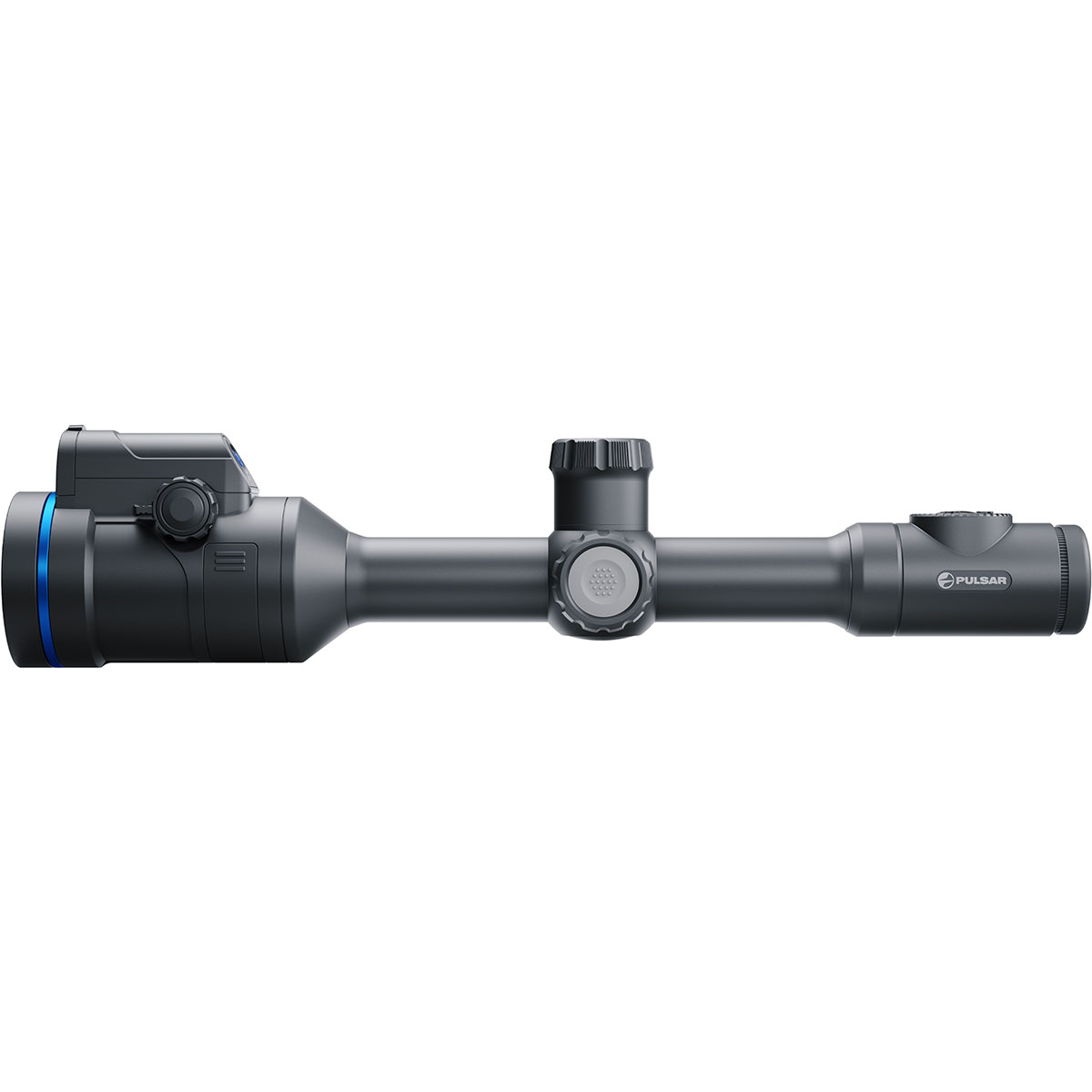

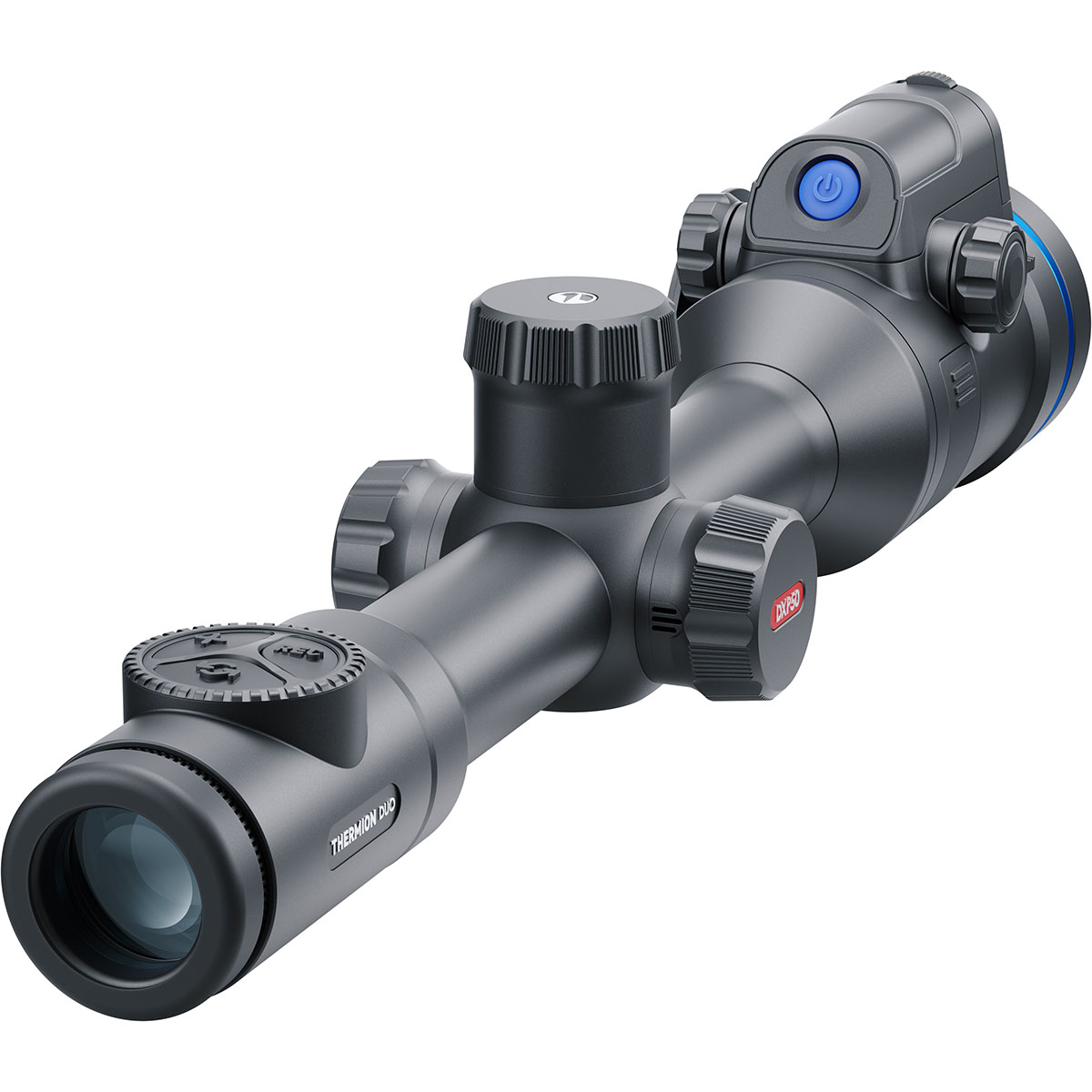

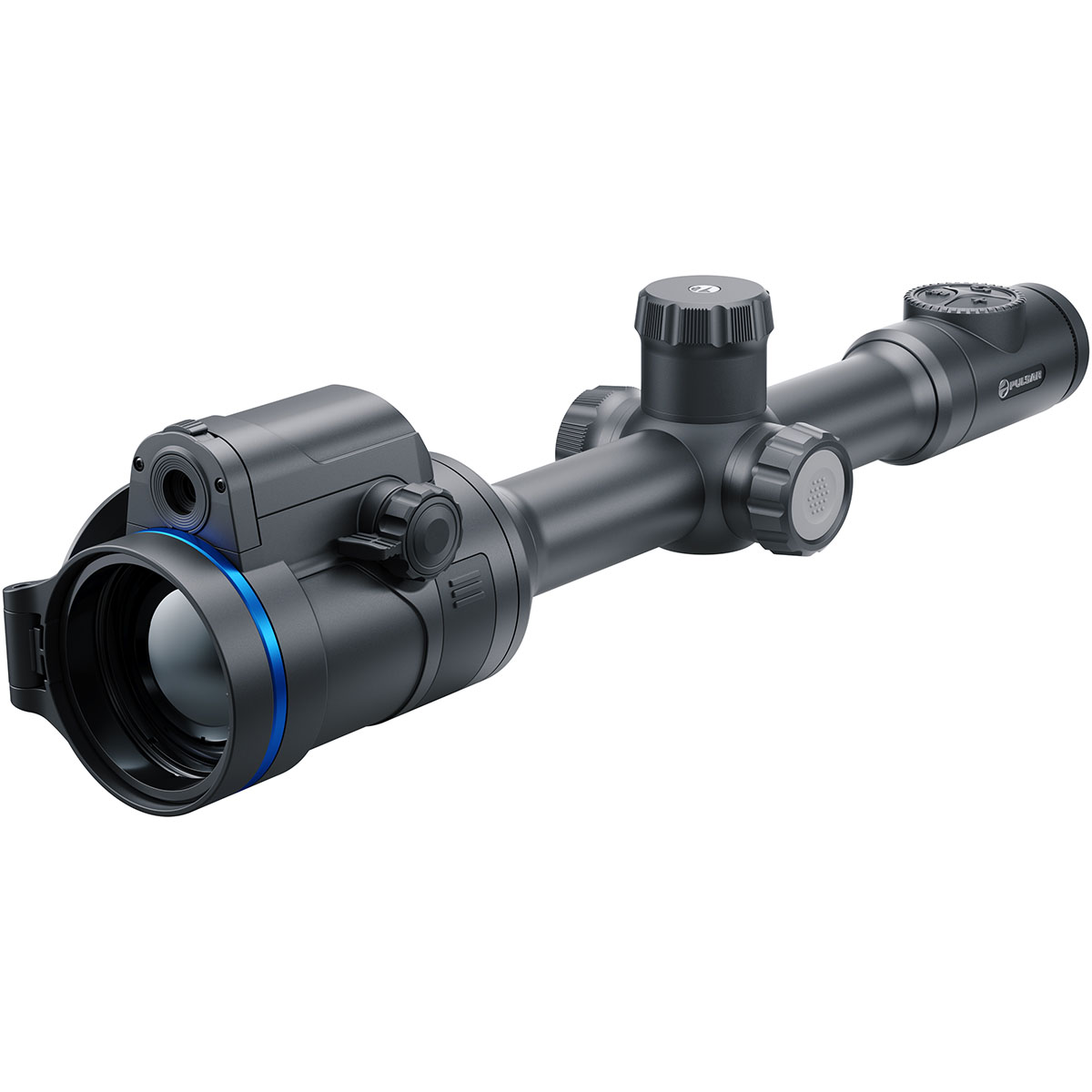

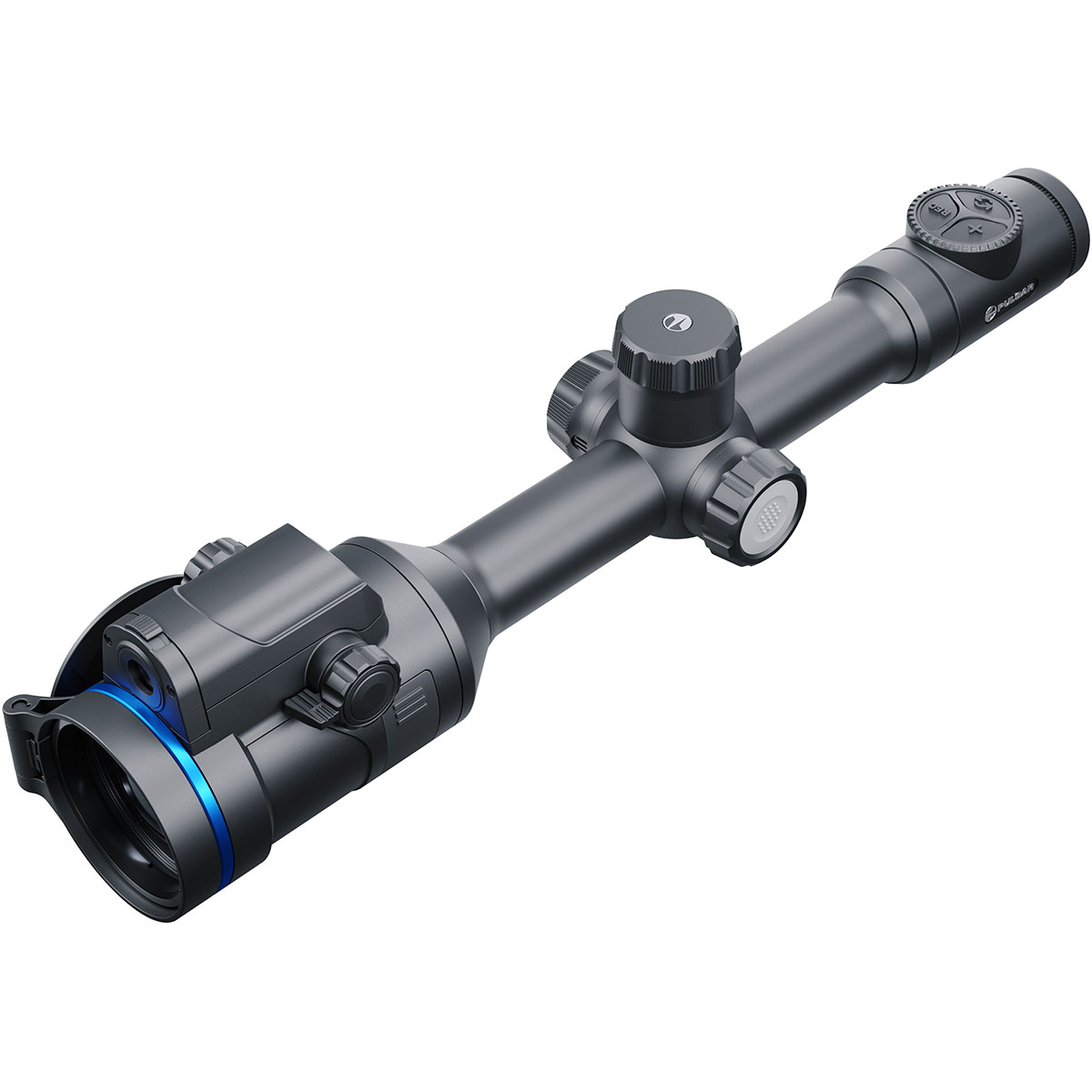

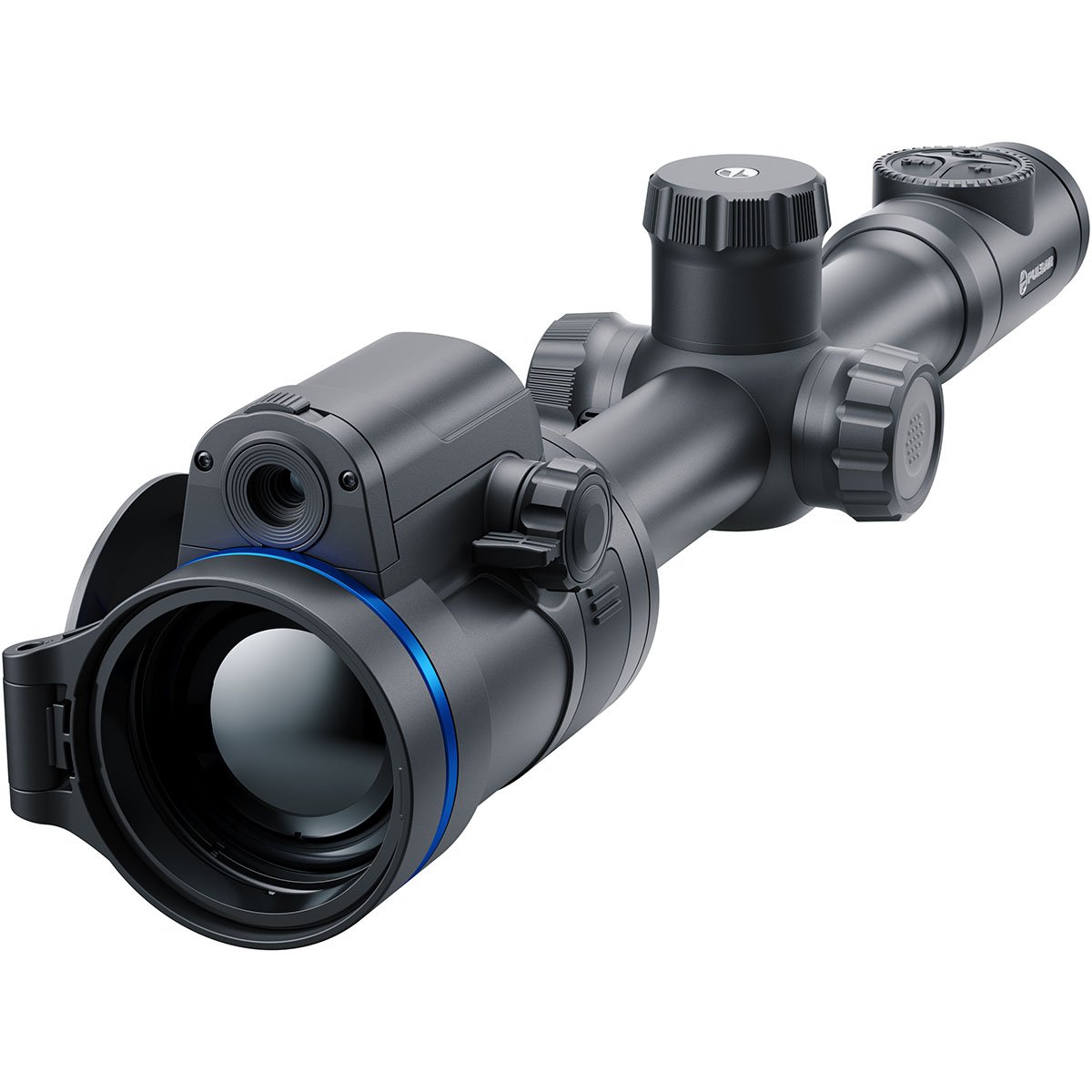

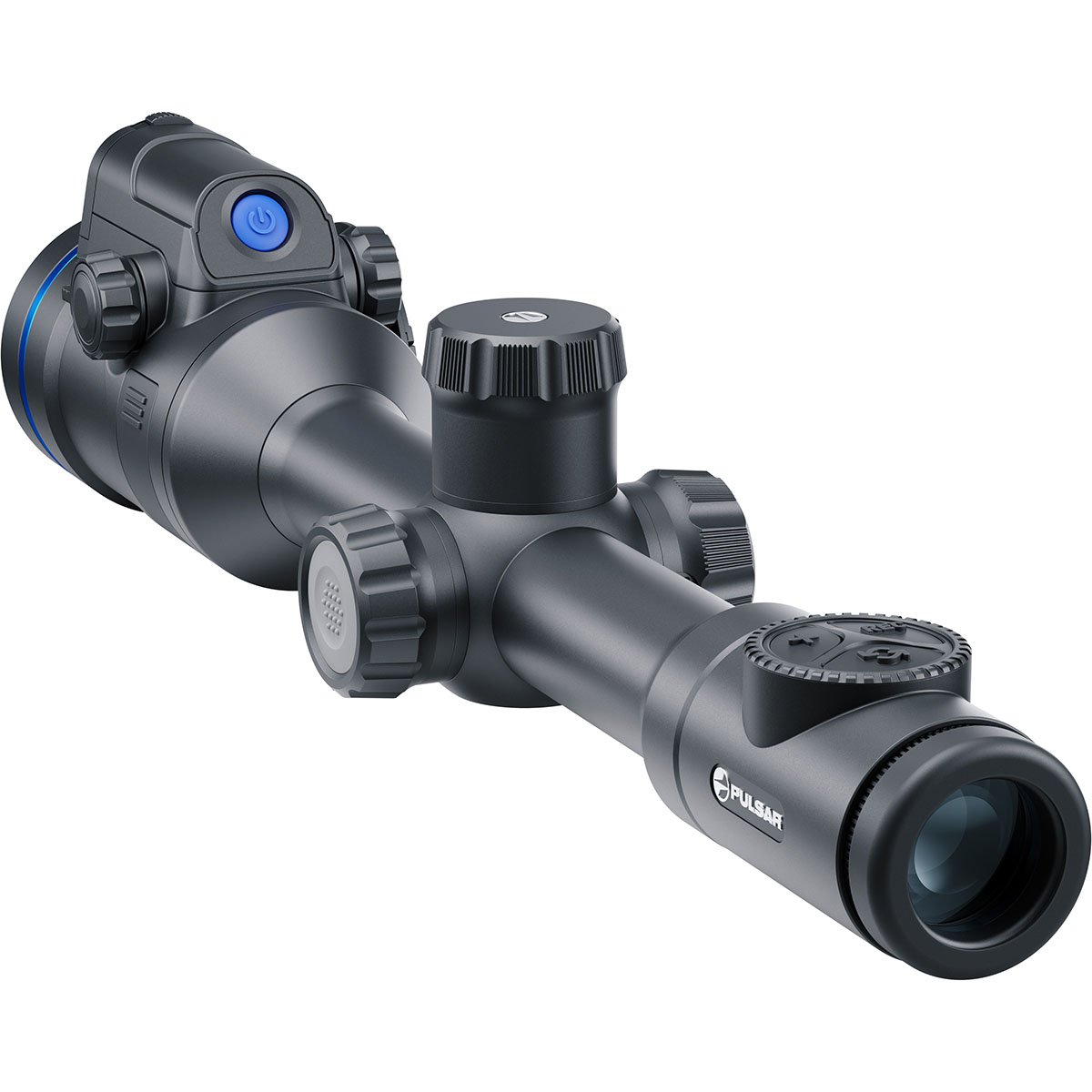

The Pulsar® Thermion Duo DXP55 Multispectral Thermal Rifle Scope gives you 640x480 resolution to reliably identify your target. See anatomical details and small landscape features. The sensor's size offers a wide field of view for easy observation for static or dynamic field use. The fast, high-aperture F/1.0 lens ensures maximum detection efficiency in all weather conditions, and at any time of day.

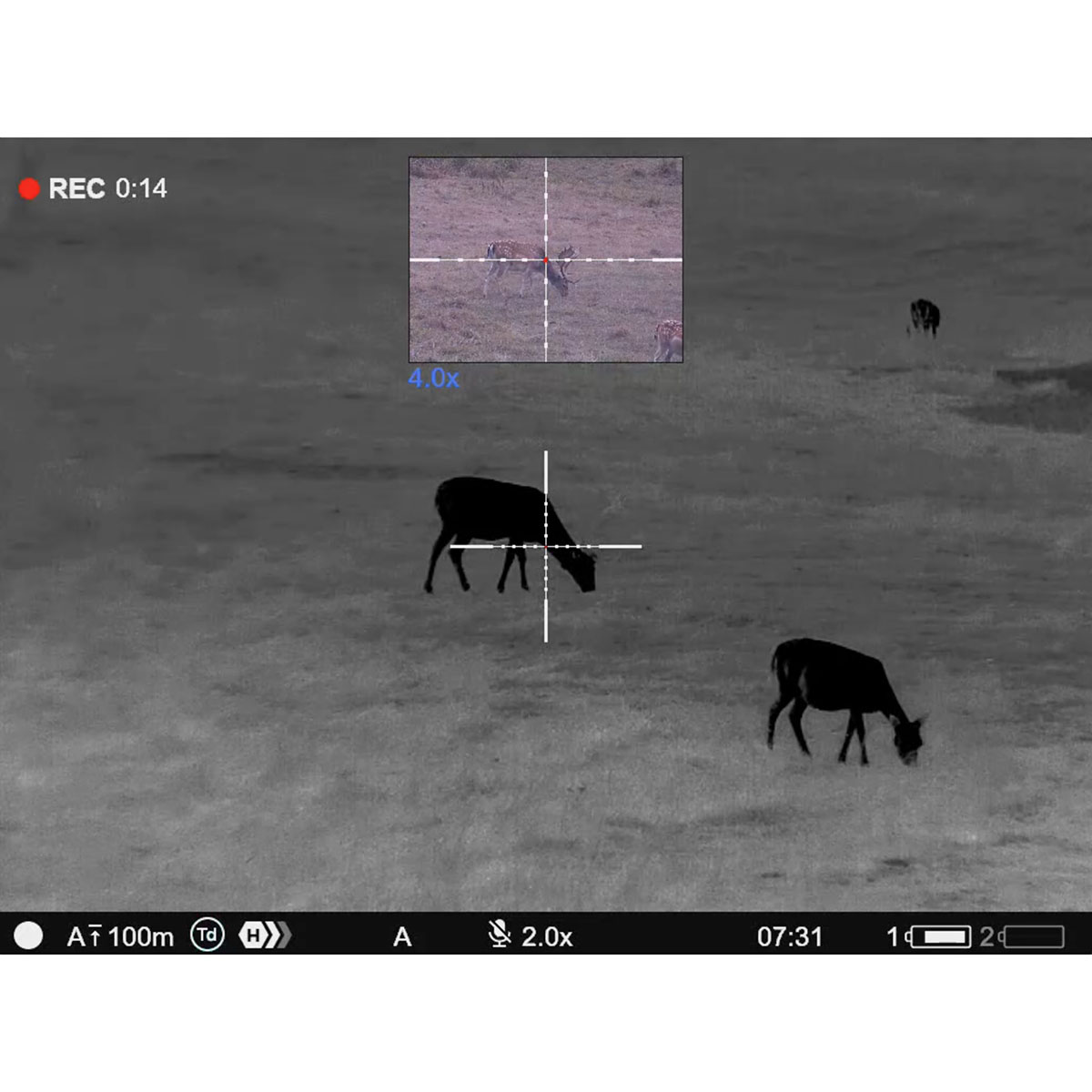

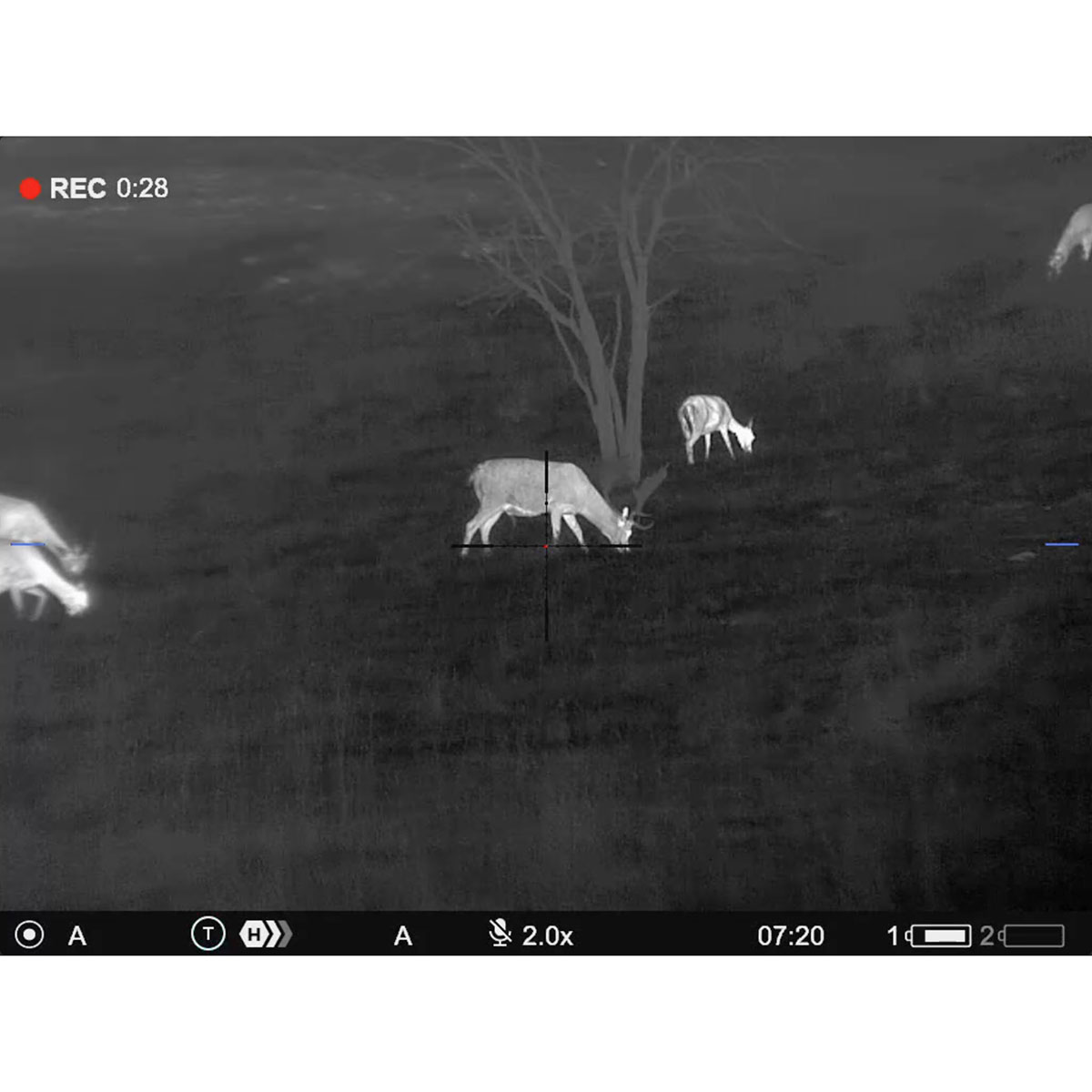

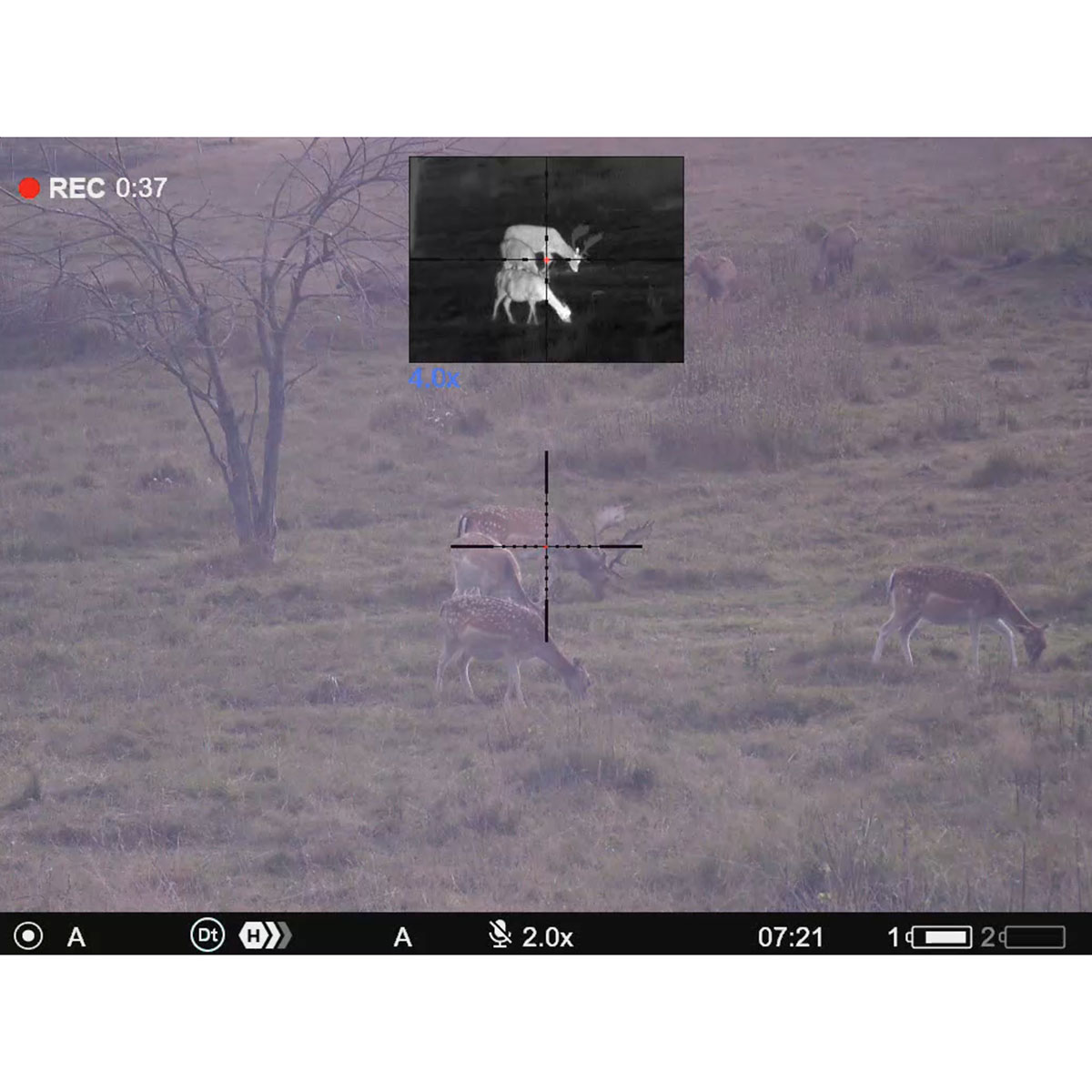

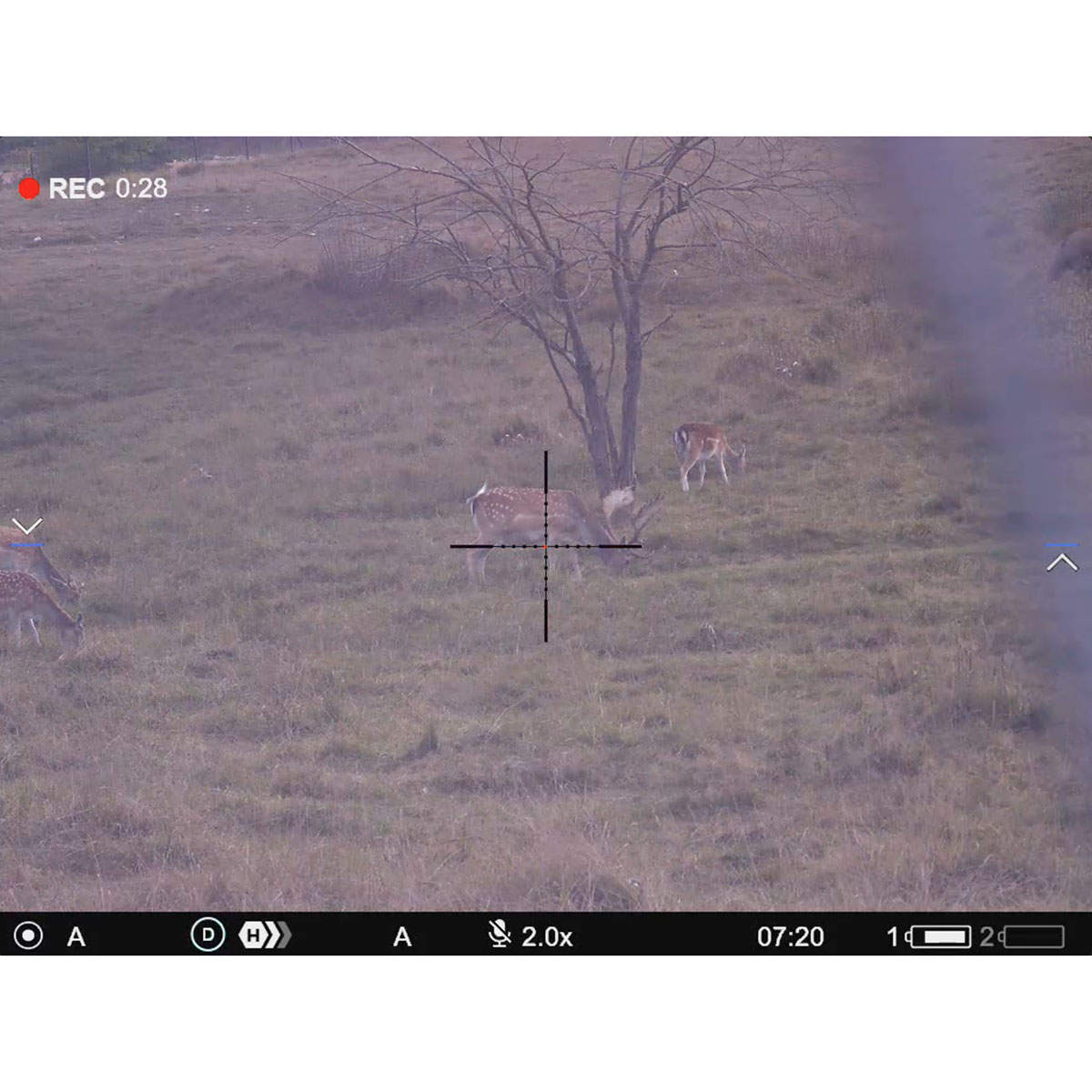

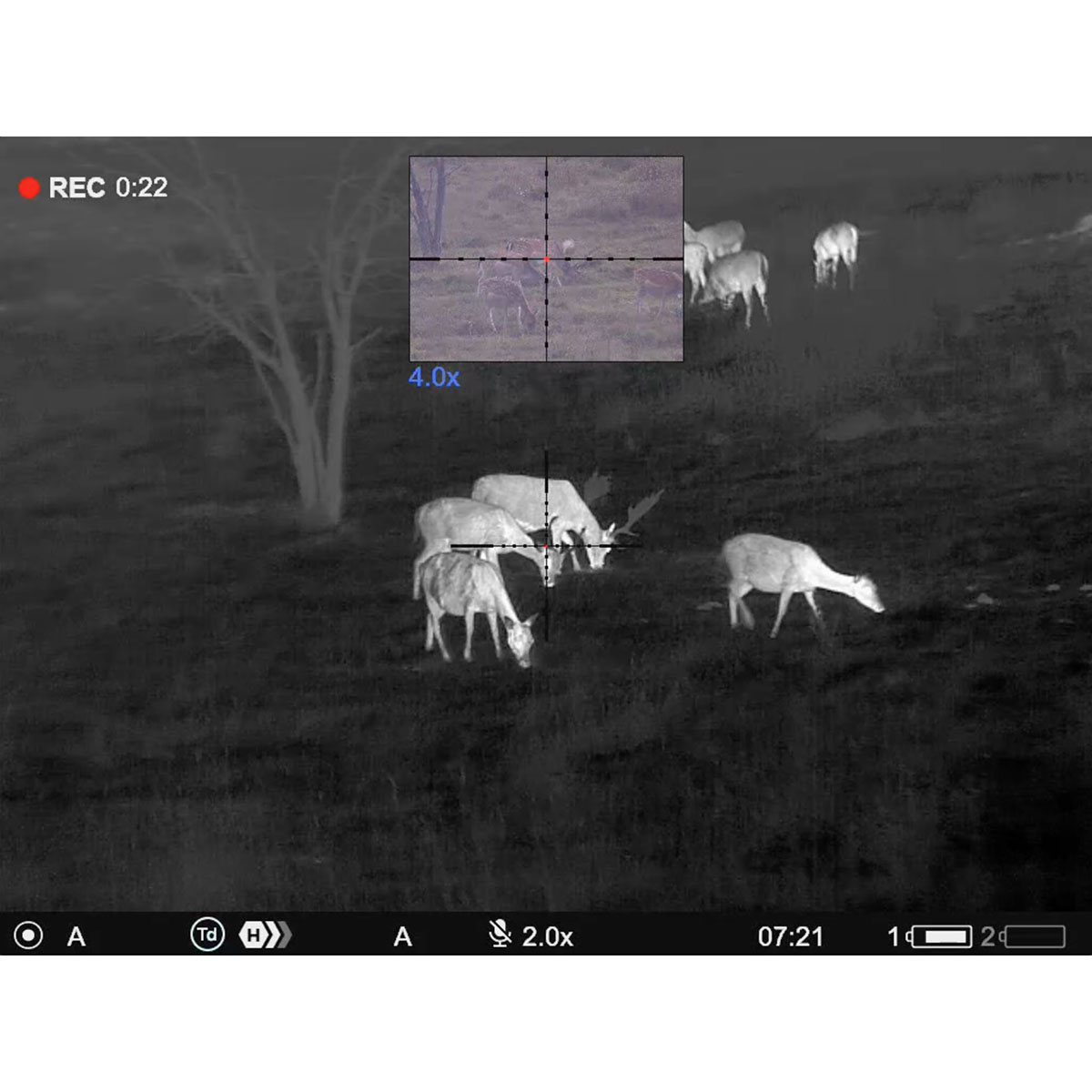

Use the digital image mode for daytime and the thermal mode for night or day for thermal assistance on hard-to-find targets. Picture-in-picture mode allows you to simultaneously see images from both channels with either one prioritized. An active sensor in the Thermion Duo senses when light decreases and switches to black and white mode.

10 reticle options and 9 different colors give the user a lot of customization for the perfect, tailored fit. 8 color palettes in thermal mode. 2-16x thermal and 4-32x digital magnification lets you reach out and discover more. This also works in PIP mode, so you can stay wide in one frame, while zoomed in inside the other frame.

1800 meter thermal detection range during day or night. Utilize the onboard Wi-Fi connectivity to link up to the Stream Vision 2 app. Save videos and images and share with friends later. 16GB internal memory lets you save hours of video and thousands of photographs.

MAIN

Sensor: 640x480 pix. @ 17 µm (thermal) | CMOS 3840x2160 (digital)
Objective lens: F50/1.0 (thermal) | F35/4.34 (digital)
Magnification: x2 – 16 (thermal) | 4 – 32 (digital)
Field of view (HxV), degrees / m @ 100 m: 12.4x9.3 / 21.8x16.4 (thermal channel on minimal magnification) | 6.1x4.6 / 10.6x8 (digital channel on minimal magnification)
Detection range: 1800 m (thermal detection)

SENSOR

Type: Uncooled (thermal) | Full-color CMOS (digital)
Resolution, pixels: 640x480 (thermal) | 3840x2160 (digital)
Pixel pitch, µm: 17 (thermal)
NETD, mK: <25>
Frame rate, Hz: 50

OPTICS

Objective lens: F50/1.0 (thermal) | F35/4.34 (digital)
Magnification: x2 – 16 (thermal) | 4 – 32 (digital)
Field of view (HxV), degrees / m @ 100 m: 12.4x9.3 / 21.8x16.4 (thermal channel on minimal magnification) | 6.1x4.6 / 10.6x8 (digital channel on minimal magnification)
Eye relief, mm: 50

DISPLAY

Type: AMOLED HD
Resolution, pixels: 1024x768
Range Performance
Detection range: 1800 m (thermal detection)

RETICLE

Click value, H/V, mm at 100 m: 21.25 / 21.25 (thermal channel) | 10.33 / 10.33 (digital channel)
Click range, H/V, mm at 100 m: 4250 / 4250 (thermal channel) | 2066 / 2066 (digital channel)
Number of preloaded reticles: 10

VIDEO RECORDER

Video / photo resolution, pixels: 1024x768
Video / photo format: .mp4 / .jpg
Built-in memory, GB: 16

WI-FI

Wireless Protocol: Wi-Fi
Wireless Standard: IEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz: 2.4 / 5

ENVIRONMENTAL CHARACTERISTICS

Degree of protection, IP code (IEC60529): IPX7
Operating temperature range, °С: -25 – +50

CONNECTIONS AND COMPATIBILITIES

Max. recoil power on rifled weapon (Eo), Joules: 6000
Shock resistance on the smooth-bore rifles, caliber: 12
Compatible mounts: Standard 30 mm rings
Supported Application: Stream Vision 2

POWER SUPPLY

Output voltage, V: 3.0 – 4.2
Battery type: Li-Ion Battery Pack АPS2 (external) + Li-Ion Battery Pack APS5 (internal)
Capacity, mAh: 2000 (external) + 4900 (internal)
Operating time on battery pack (at t=22°C), h: 6
External power supply, V: 5V, 9V (USB Type-C Power Delivery)

WEIGHT & SIZE

Body material: Aluminum alloy
Dimensions, mm: 420x78x83.5
Weight, kg: 0.96 (batteries included)

Specifications

Battery Life (Maximum):

6

Color:

Black

Battery Life (Minimum):

Min Magnification:

2

Item Height (Inches):

4.500

Model Number:

THERMION DUO DXP55

Battery Type:

APS 2

Objective Size:

Item Weight (lbs):

3.000

Quantity:

1

Frame Rate:

50

Thermal Range; Identification:

Item Length (Inches):

17.000

Item Width (Inches):

6.250

Material:

Aluminum

Max Magnification:

32

Optic Resolution:

640x480/3840x2160

Thermal Range; Detection:

1970

Thermal Range; Recognition:
