SWAMPFOX OPTICS Blade 1x25mm Amber BRC Reticle Prism Sight Black SKU: 100044126

Description

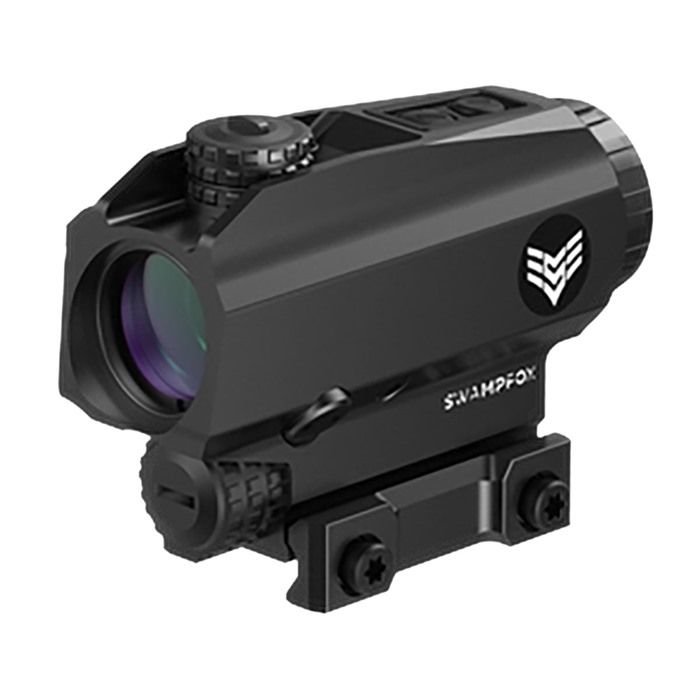

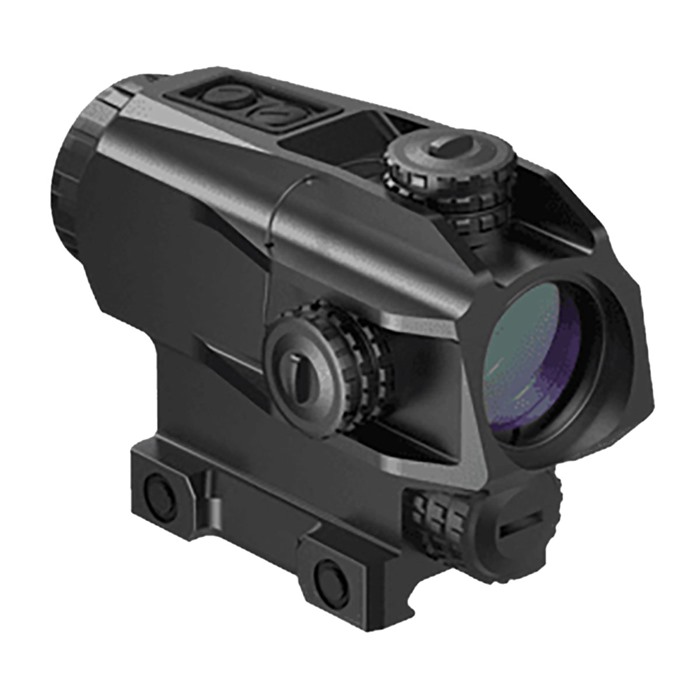

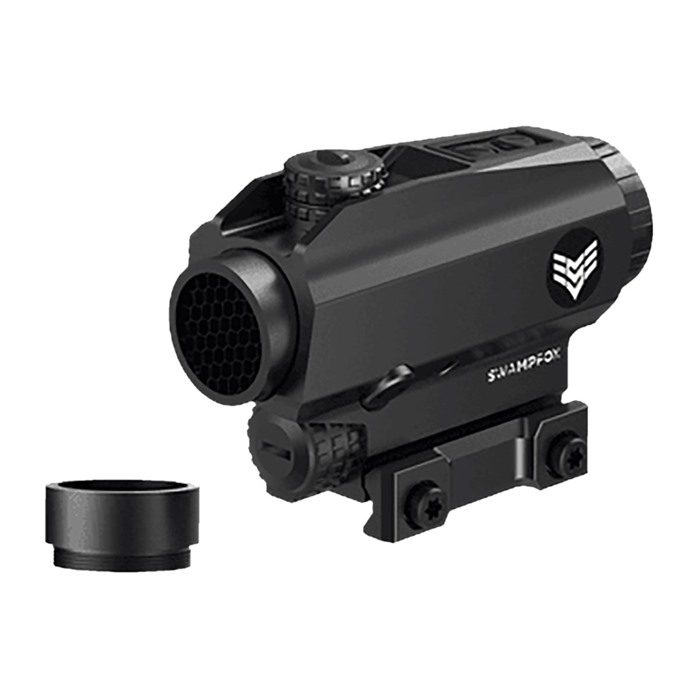

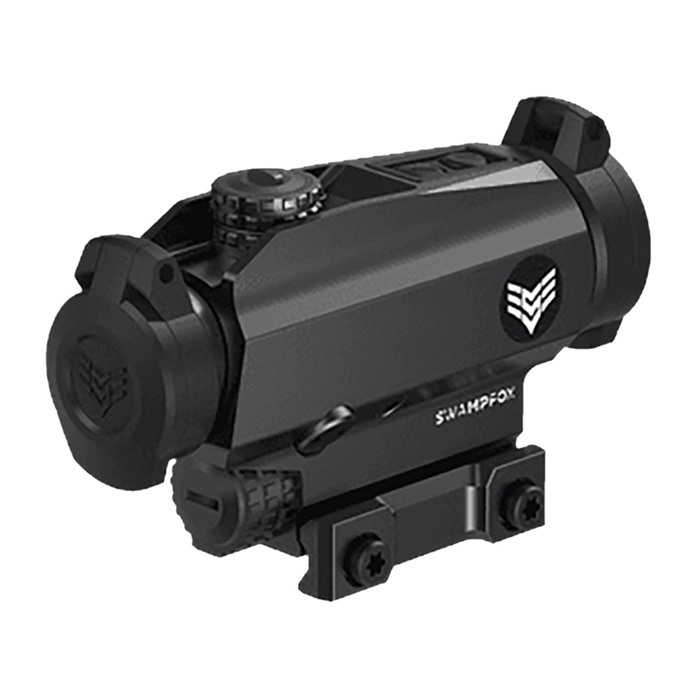

BLADE 1X25MM PRISM SIGHT

Blade by Swampfox is a 1x25mm prism optimized for CQB engagements. It features a Bullet Rise Compensating etched reticle that compensates for optic height over bore, making it ideal for 5, 10, and 15 yards on a 5.56 AR-15 style platform. Shake N’ Wake feature auto on/off will help conserve battery life, and the etched reticle provides a clear sight picture, benefiting shooters with astigmatism. Blade's design optimizes reliability and performance, making it a reliable and effective aiming device for any shooter.

FEATURES:

BULLET RISE COMPENSATION

As everyone knows, gravity has a downward effect on moving projectiles, the longer the distance, the greater the effect. When it comes to standard zeros, like the 50 to 200, short-range engagements become more difficult due to height over bore. Blade's BRC offers a solution with dedicated holds for 5, 10, and 15 yards when used on an AR-15 and similar platforms.

ILLUMINATION AND SHAKE N’ WAKE

Blade is available in red, green, or amber illumination variants. The two lowest settings offer NV device compatibility, while settings 3 through 8 offer indoor brightness settings, with 9 and 10 being daylight bright for direct overhead light environments.

Blade offers a true grab-and-go level of readiness with Shake N’ Wake. After 225 seconds without motion, reticle illumination shuts off to preserve battery life, leaving the etched reticle to remain in black. Any movement at all will wake up the optic, returning it to the previous illumination setting.

In a worst-case scenario, the etched reticle will always remain black if the battery were to malfunction or fail.

SHOOT FAST, MOVE FAST

Unlike typical red dots, prisms have constraints on eye relief and the eye box. To counteract this problem, we added a 13.5mm exit pupil, providing a forgiving and tremendous view. Once mounted, you will be able to set the rear diopter, allowing for a both-eyes-open shooting experience.

BLADES CUTTING EDGE

Having an etched reticle gives every user some sort of advantage, whether it is users who suffer from common astigmatism or someone who just wants to be ready for the end of the world. Blade has something to offer for everyone. Blade's chemically etched reticle and rear diopter make for an ideal sight picture for almost anyone, providing a fast and clear aiming tool.

RIGHT OUT OF THE BOX

Blade's all-in-one integrated 1913 Picatinny mounting system provides increased structural integrity, eliminating confusion about mounting. It’s tough and rugged 6061-T6 aircraft grade aluminum housing can withstand harsh conditions, making Blade a reliable and effective tool for any shooter, even in extreme environments.

SPECIFICATIONS:

Adjustment Click Value: 0.5 MOA
Reticle Type: CQB Bullet Rise Compensation
Magnification: 1x
Lens Diameter: 25mm
Illumination Positions: 10 total, 2 NV
Brightness Adjustments: Up/Down Digital Press
Shockproof G Forces: 800Gs
Waterproof: 1 Meter/ IPX7
Battery Type: CR123a (included)
Max Battery Life: 3,000 hours
Dimensions: 4.0”(length) * 2.44” (width) * 3.0” (height)
Weight: 13.1 ounces
Lens: Fully Multi Coated
Specialty Coatings: Anti-fog, hydrophobic, anti-scratch
Parallax: Parallax free @100 yards
Eye Relief: 3.8"
Exit Pupil: 13.5mm
Mount Type: Picatinny T25 Star Mount Bolts: 35 inch-pounds torque.
Chassis: 6061-T6 Aircraft grade aluminum
Windage/Elevation Movement Range (MOA): +/- 45MOA/ Total 90MOA Range

Specifications

Battery Life (Minimum):

3000

Click Value:

1/2 MOA

Battery Life (Maximum):

3000

Item Weight (lbs):

0.819

Battery Type:

CR-123A

Magnification:

1

Color:

Black

Night Vision Compatible:

Yes

Brightness Settings:

10 Settings

Material:

Aluminum

Finish:

Anodized

Reticle Color:

Amber

Electronic Sight Type:

Prism

Reticle Type:

Amber IR BRC

Item Height (Inches):

3.000

Model Number:

Blade

Item Length (Inches):

4.000

Sight Compatibility:

Item Width (Inches):

2.440

Mount Type:

Picatinny Rail

Quantity:

1

Restrictions

Prop 65 restriction:

Cancer & Reproductive Harm
