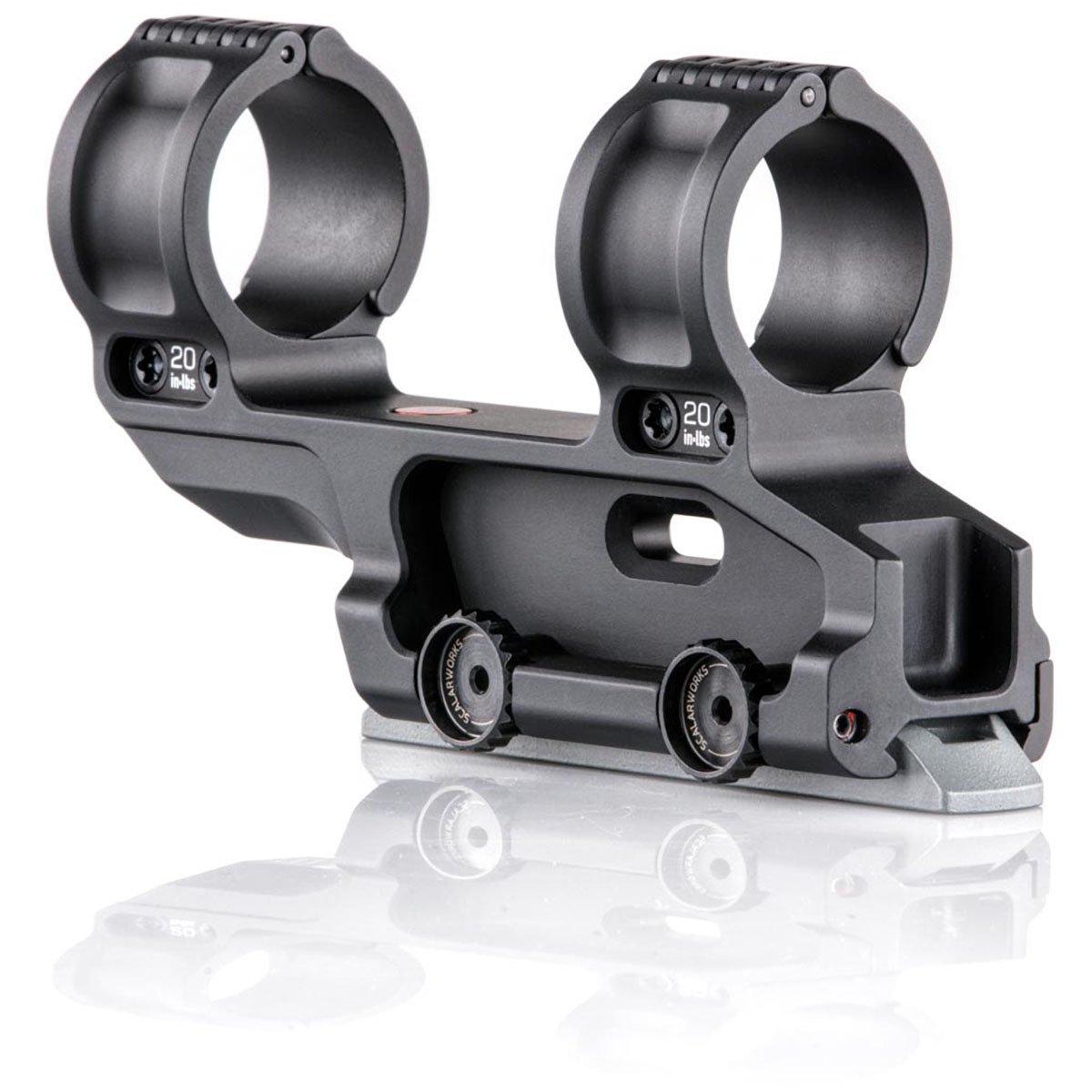

AR-15 30MM LEAP/08 QUICK DETACH RING MOUNT
State of the art 30mm scope mounts.

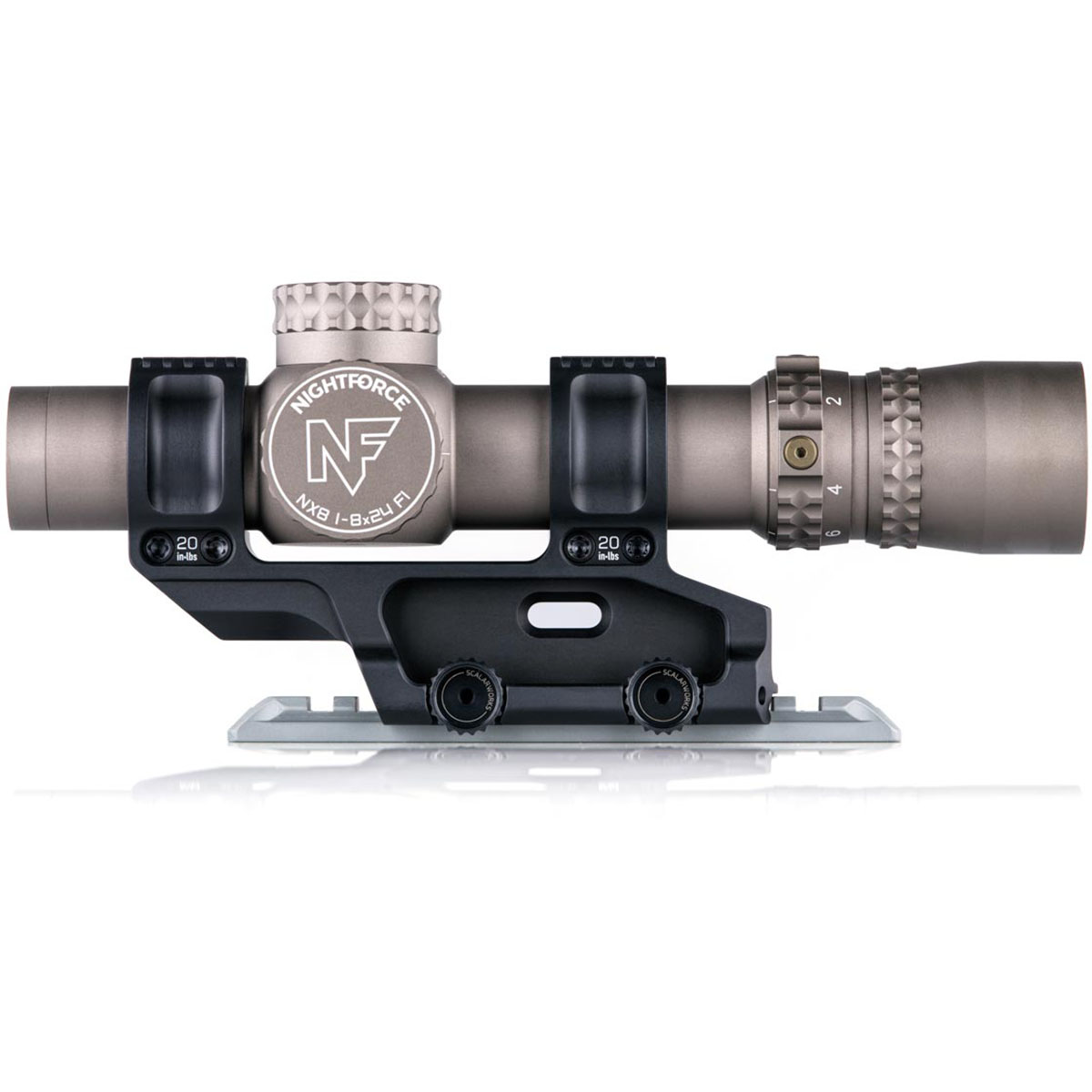

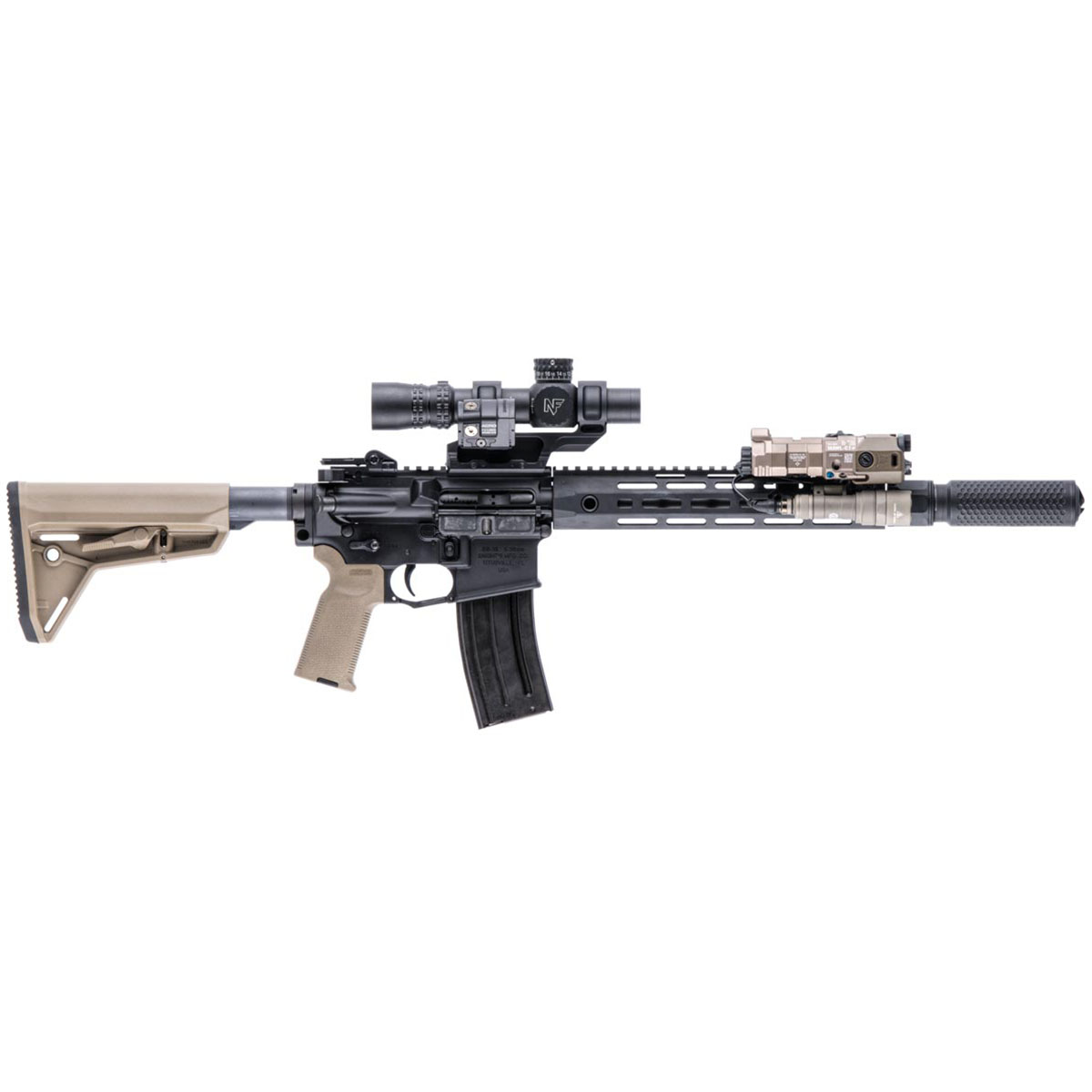

The lightest, stiffest, and easiest to use quick-detach scope mount available. LEAP/08 redefines the standard for mounting your 30mm LPVO or high-powered scope to your AR-15's Picatinny top rail. Available in 1.57”, and 1.93” optic heights.
The LEAP/08 base incorporates different structural elements to maximize overall performance.
A large diameter tubular section up front to resist torsion from side impacts, and a very wide I-beam bridge in the rear to resist recoil induced oscillations.
FEATURES:
Lightweight and Durable: Made from CNC machined 7075-T6 aluminum, it offers a high strength-to-weight ratio.
Quick-Detach Mechanism: The ClickDrive® system allows for easy attachment and detachment without tools, ensuring a secure fit.
LevelDrive®: This feature helps you quickly and accurately level your scope.
Smooth Design: No protruding levers or knobs, reducing the risk of snagging on gear or clothing.
Available Heights: Comes in 1.57” and 1.93” optic heights to suit different preferences.
Precision Engineering: The mount is CNC machined from a single piece of 7075-T6 aluminum billet, ensuring the ideal strength-to-weight ratio.
Side KICK Compatibility: You can add an offset red dot sight for a more versatile setup.
INCLUDED IN BOX:
- Mount: Scalarworks® Leap™
- Leveling system: LevelDrive™ screw
- Fasteners: M4x0.75 Nylok® treated (Torqued @ 20in*lbs)
- Drivers: T25 Torx driver bit
- Manuals: Scalarworks® Leap/08
SPECIFIACATIONS:
- Materials: 7075-T6 Aluminum / 4140H Steel
- Finishes: Type III Anodizing / Flash Nitride
- Center height over rail: 1.57" Or 1.93”
- Ring diameter: 30mm
- Cant: 0MOA
- Overhang: 2.0"
- Weight: 154g
- Origin: United States of America
COMPATIBILITY:
- Rails: MIL-STD-1913 Picatinny
- B&T: APC and SPC only.

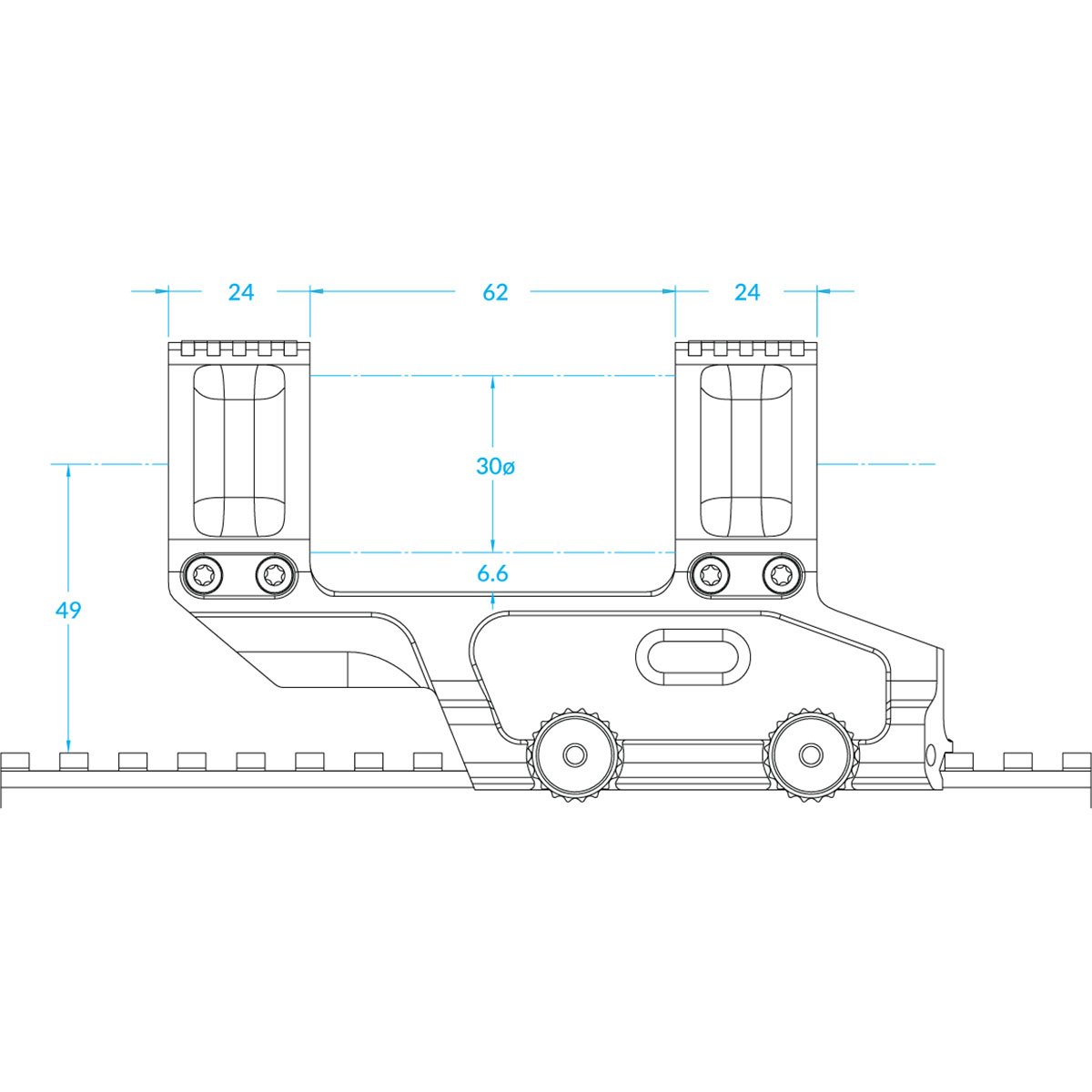

- 30mm: See technical drawing for details
Item Weight (lbs):
0.359
Attachment Type:
Picatinny
Action Length:
Ring Type:
Mount Type:
Quick Detach
Elevation:
0 MOA
Color:
Black
Item Height (Inches):
1.930
Quantity:
1
Item Length (Inches):
5.100
Finish:
Anodized
Item Width (Inches):
1.500
Material:
7075-T6 Aluminum
Ring Height:
1.93
Model Number:
1.93"
Scope Tube Diameter:
30mm
Prop 65 restriction:
Cancer & Reproductive Harm
Shop All ED BROWN
AR-15 30mm 1.93" LEAP/08 Quick Detach Ring Mount Black
MAP:
439.000000000
Your Price
$2,299.99 *
Crow # 430100489
MFR # SW0820
UPC 856481007423
