High-quality Ruger factory rings install easily and provide solid, zero-movement scope attachment to Ruger rifles and handguns with integral bases, No. 1 rifles with factory base, and No. 3 rifles with special factory bases available separately. Low, Medium, High, and Extra-High heights in blued carbon steel, natural stainless steel, or stainless with Ruger’s proprietary matte Target Grey® finish. Sold as single rings.
SPECS: Carbon steel, polished blue finish (BL), stainless steel, natural (SS), or Target Grey® (TG) finish. Ring heights measured from top of base to bottom of scope tube. Low - .325”. Medium (Med.) - .435”. High - .565”. Extra-High (X-High) - .680”. Offset Ring available in Medium height only. Use two to move scope eye relief back 1”. To move the scope Ѕ” to the rear, use one Offset ring and one #834-000-003 Medium height ring.
RINGS FOR: No. 1, No. 3, Mark II Pistol, 77/22®, 77/22® Mag., Mini-14® Ranch Rifle, Mini-Thirty®, Redhawk®
Available as single rings only. Order two (2) of the same ring for these firearm models.
RINGS FOR: M77®, M77 Mark II & Super Redhawk®
These models require front and rear scope rings of different heights. On M77/M77 Mark II, the shorter ring always mounts at the front of the receiver and the higher ring at the rear. On the Super Redhawk, the higher ring is always at the front of the frame and the lower ring at the rear.
Available as single rings only. Order one (1) FRONT and one (1) REAR ring from table below.
1" Rings for M77, M77 Mark II & Super Redhawk |
|||||
Stock # Front |
Ruger Part # Front |
Stock # Rear |
Ruger Part # Rear |
Height |
Finish |
#834-000-002 |
3B |
#834-000-003 |
4B |
Low/Med. |
BL |
#834-000-005 |
3K |
#834-000-006 |
4K |
Low/Med. |
SS |
#780-001-250 |
3KTG |
#780-001-248 |
4KTG |
Low/Med. |
TG |
#834-000-003 |
4B |
#834-000-004 |
5B |
Med./High |
BL |
#834-000-006 |
4K |
#834-000-007 |
5K |
Med./High |
SS |
#780-001-248 |
4KTG |
#780-001-249 |
5KTG |
Med./High |
TG |
#834-000-072 |
4BO |
#834-000-004 |
5B |
Med. Offset/High |
BL |
#834-000-004 |
5B |
#834-003-002 |
6B |
High/X-High |
BL |
#834-000-007 |
5K |
#834-000-008 |
6K |
High/X-High |
SS |
#780-001-249 |
5KTG |
#780-001-251 |
6KTG |
High/X-High |
TG |
30mm Rings for M77, M77 Mark II & Super Redhawk |
|||||
Stock # Front |
Ruger Part # Front |
Stock # Rear |
Ruger Part # Rear |
Height |
Finish |
#834-008-001 |
4B30 |
#834-008-002 |
5B30 |
Med./High |
BL |

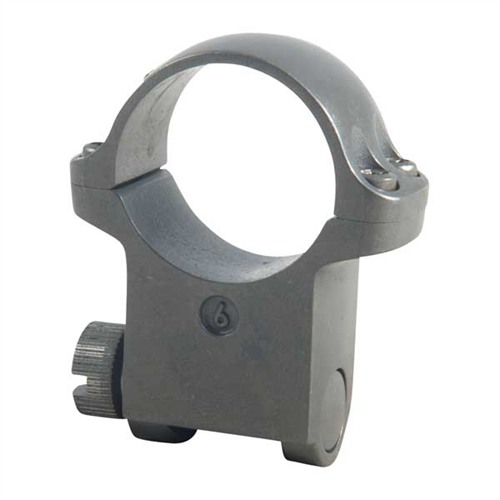

1" Scope Ring, 6KTG, X-High, Target Gray
