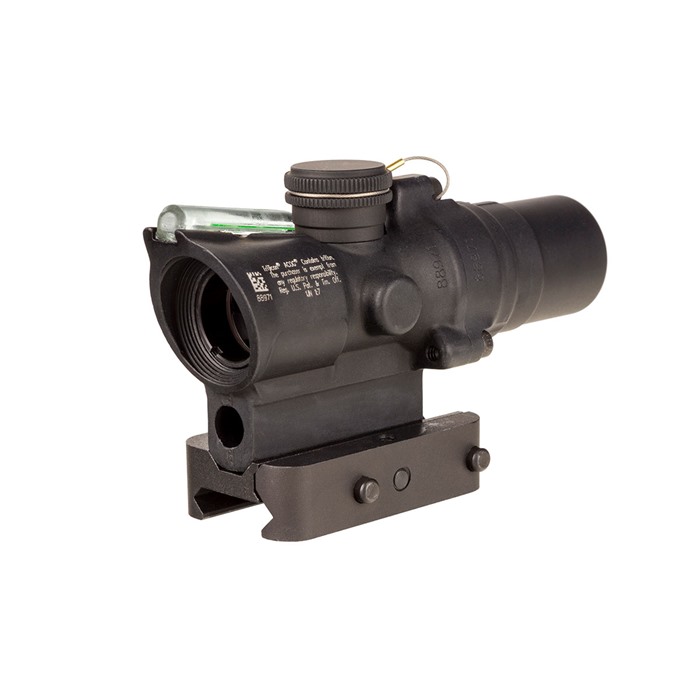

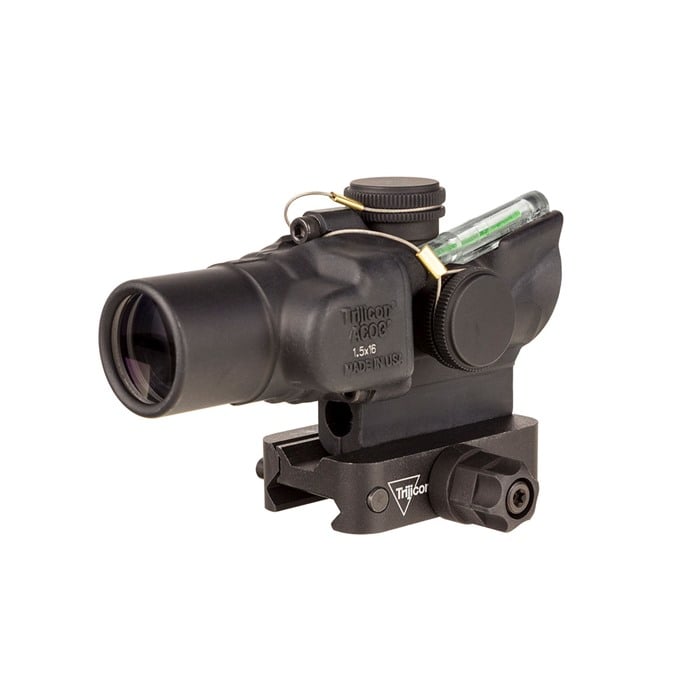

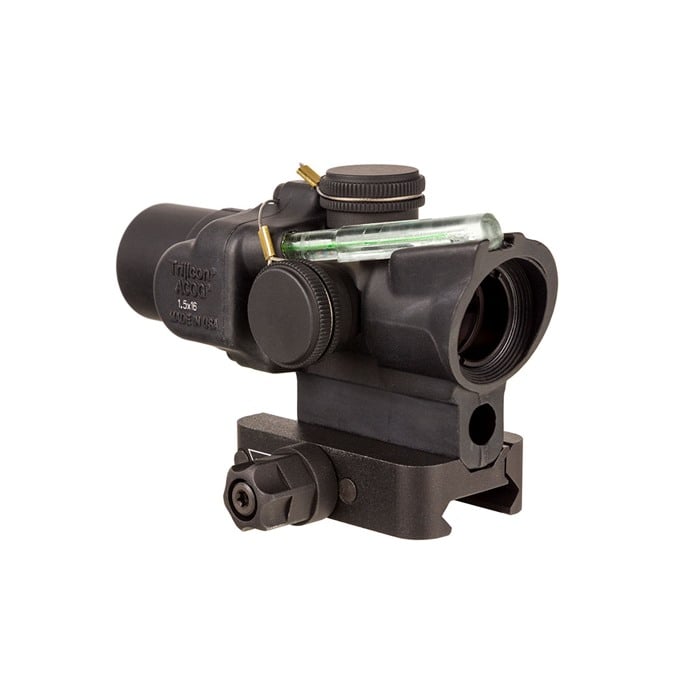

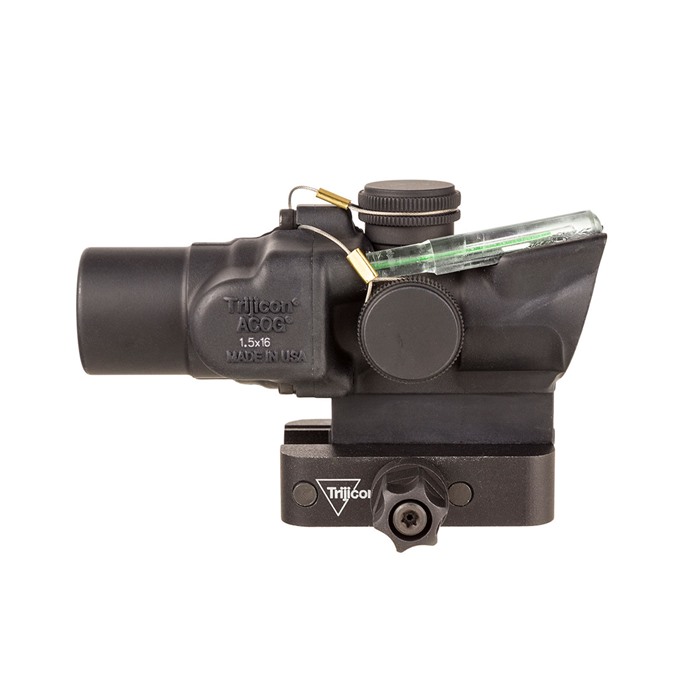

COMPACT ACOG 1.5X16S FIXED RIFLE SCOPE

The Trijicon ACOG 1.5x16S Scope is a fixed magnification riflescope with an illuminated reticle pattern for use in any lighting conditions. Dual illumination provides two sources of battery-free illumination – fiber optics and tritium. The fiber optics use ambient light to automatically adjust the brightness level and contrast of the reticle to available light conditions. The tritium-phosphor lamp glows in low-light conditions. The ACOG body is designed to be extremely rugged and reliable. Wrapped in a smaller package, at 5.1 ounces (without mount), this ACOG is perfect for fast-moving tactical teams operating in close quarters or for speed-oriented competition venues. The forged 7075-T6 aircraft-grade aluminum alloy housing provides for a nearly indestructible sighting system. No other magnified optic has been used more in combat than the Trijicon ACOG. No tools are needed for windage and elevation adjustments because the ACOG features external adjusters. All adjuster caps are provided with a lanyard assembly to minimize the loss of caps. This model provides weapons like the M16/M4 with excellent fire control capability. Targets are easier and quicker to acquire through the 1.5x16 models because of the larger field of view (7.4 degrees) and eye-friendly design.

The Trijicon Compact ACOG Mount w/ Q-LOC™ Technology features a Mil-Spec drop test rated 6061-T6 aluminum design, with an easy to use one handed tool less mounting system.The spring-loaded design allows for constant retention and maintaining of zero even if the knobs are not tightened.

The mount boasts a low weight and low profile design with superior return to zero performance and is compatible with any Mil-Spec or NATO Picatinny rail.

Matte black anodized finish

Made in the US.A

Torque Spec (to rail):

• Spring Tension Only: 12-16 in. / lbs.
• Can be Tightened To: 44-66 in. / lbs.

FEATURES:

ALWAYS ON, ALWAYS READY

Most ACOG® models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.

TAKE CONTROL

Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.

RUGGED, RELIABLE HOUSING DESIGN

Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.

“BOTH EYES OPEN” DESIGN

“Both eyes open” shooting using Trijicon's Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.

OUTSTANDING CLARITY

The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.

EXACT TARGET DISTANCES & HOLDS

Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.

COMBAT PROVEN

No other magnified optic has been used more in combat than the ACOG.

SHOCK-RESISTANT

Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.

WATERPROOF

Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.

INCLUDED IN BOX:

• Trijicon Q-LOC™ Technology Mount
• Scopecoat
• LENSPEN (TA56)
• Trijicon Logo Sticker (PR15)
• ACOG Manual
• Warranty Card

SPECIFICATIONS:

• LENGTH: 4.0”
• WIDTH: 2.10”
• HEIGHT: 2.58”
• MAGNIFICATION: 1.5x

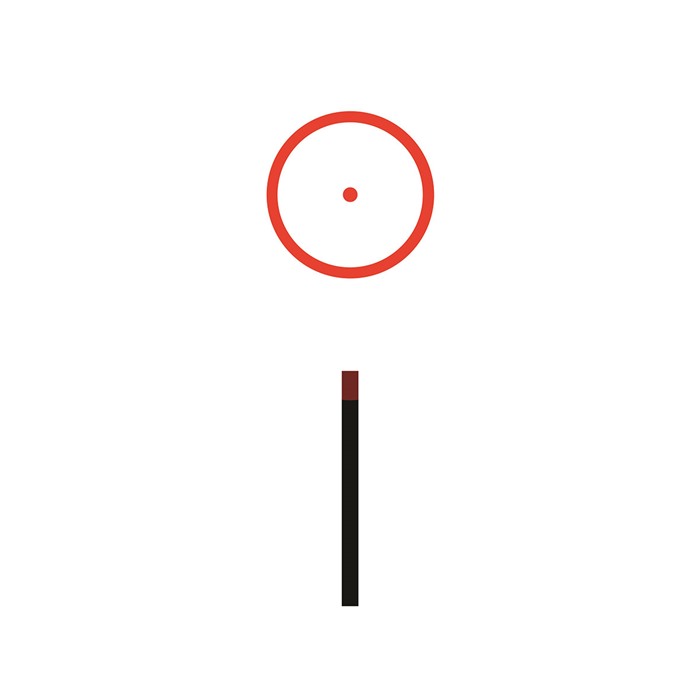

• RETICLE PATTERN: Circle Dot
• ILLUMINATION SOURCE: Fiber Optics & Tritium
• EXIT PUPIL: 0.42 in. (10.67mm)
• HOUSING MATERIAL: Forged Aluminum
• WEIGHT: 7.2 oz. (204.12g)
• OBJECTIVE SIZE: 16mm
• DAY RETICLE COLOR: Green
• NIGHT RETICLE COLOR: Green
• EYE RELIEF: 2.4 in. (60.96mm)
• FIELD OF VIEW (degrees): 7.4° - 39°
• FINISH: Matte Black
• POWER SOURCE: Fiber Optics & Tritium
• ADJUSTMENT: 0.5 MOA per click
• MOUNT: Trijicon Q-LOC™ Technology Mount
