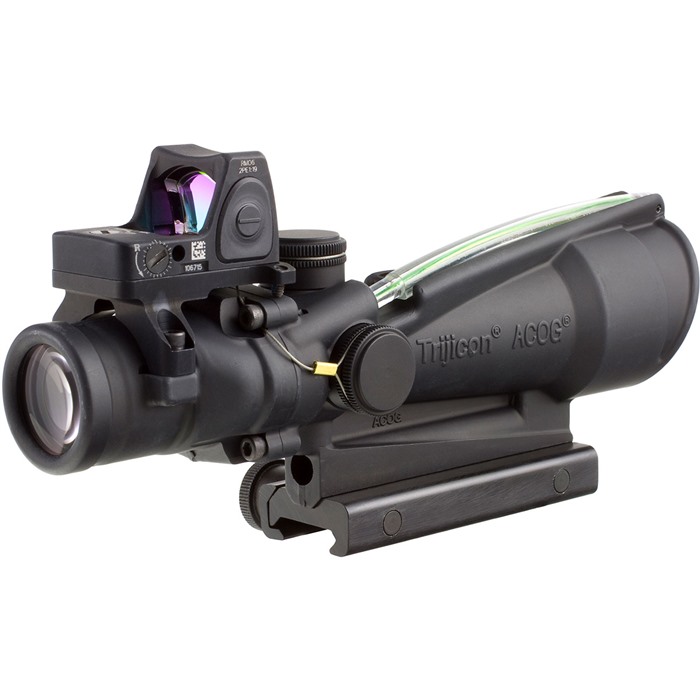

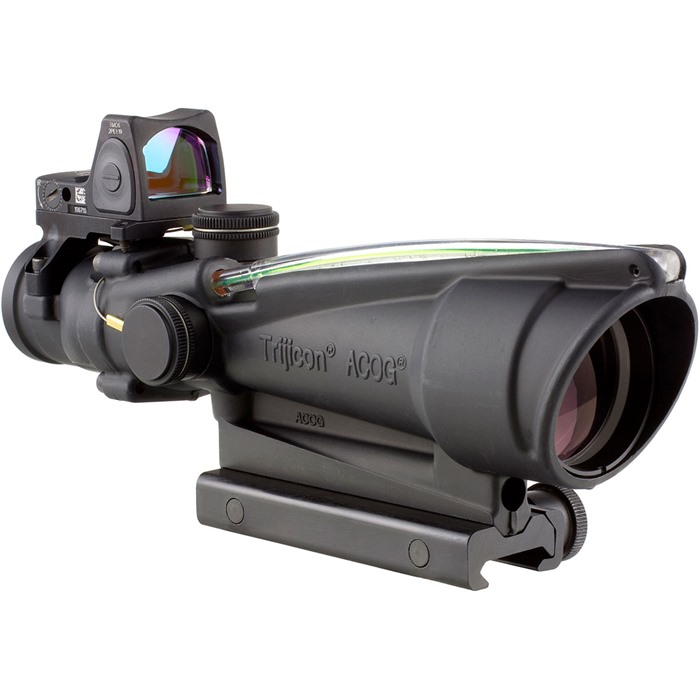

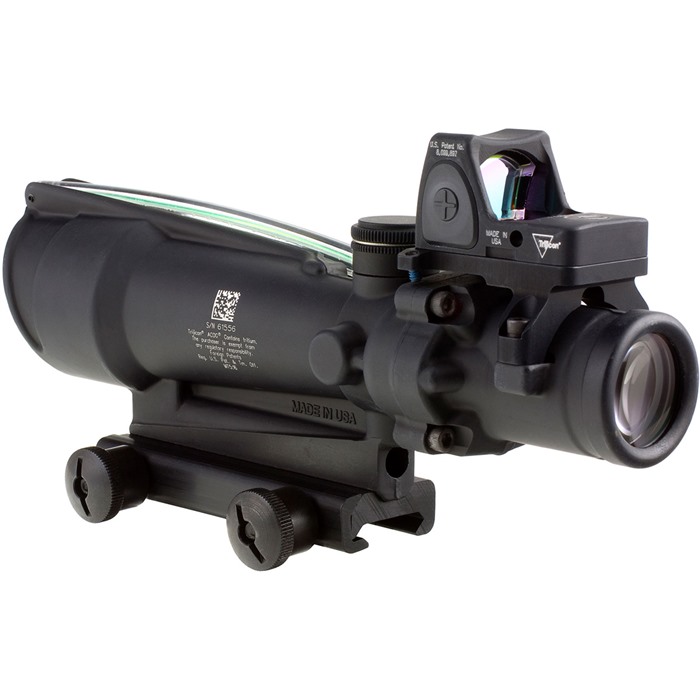

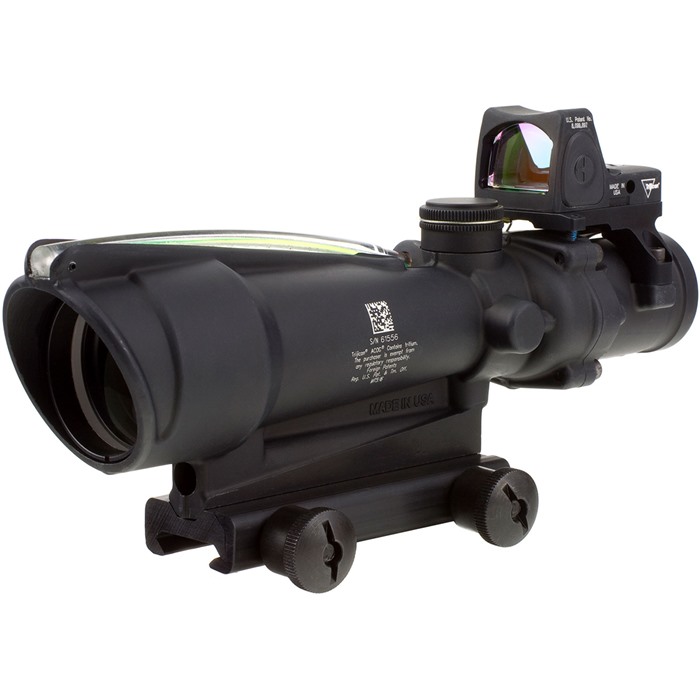

ACOG BAC 3.5X35MM FIXED RIFLE SCOPE WITH RM06 RMR

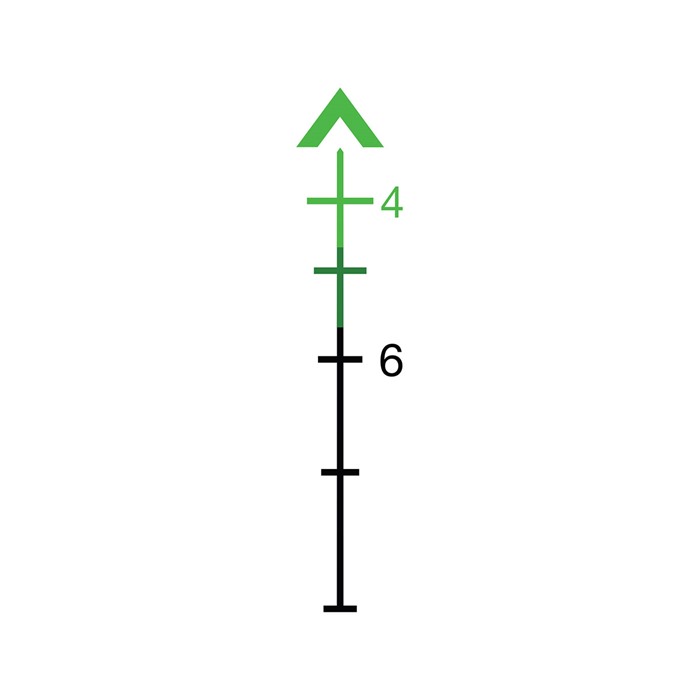

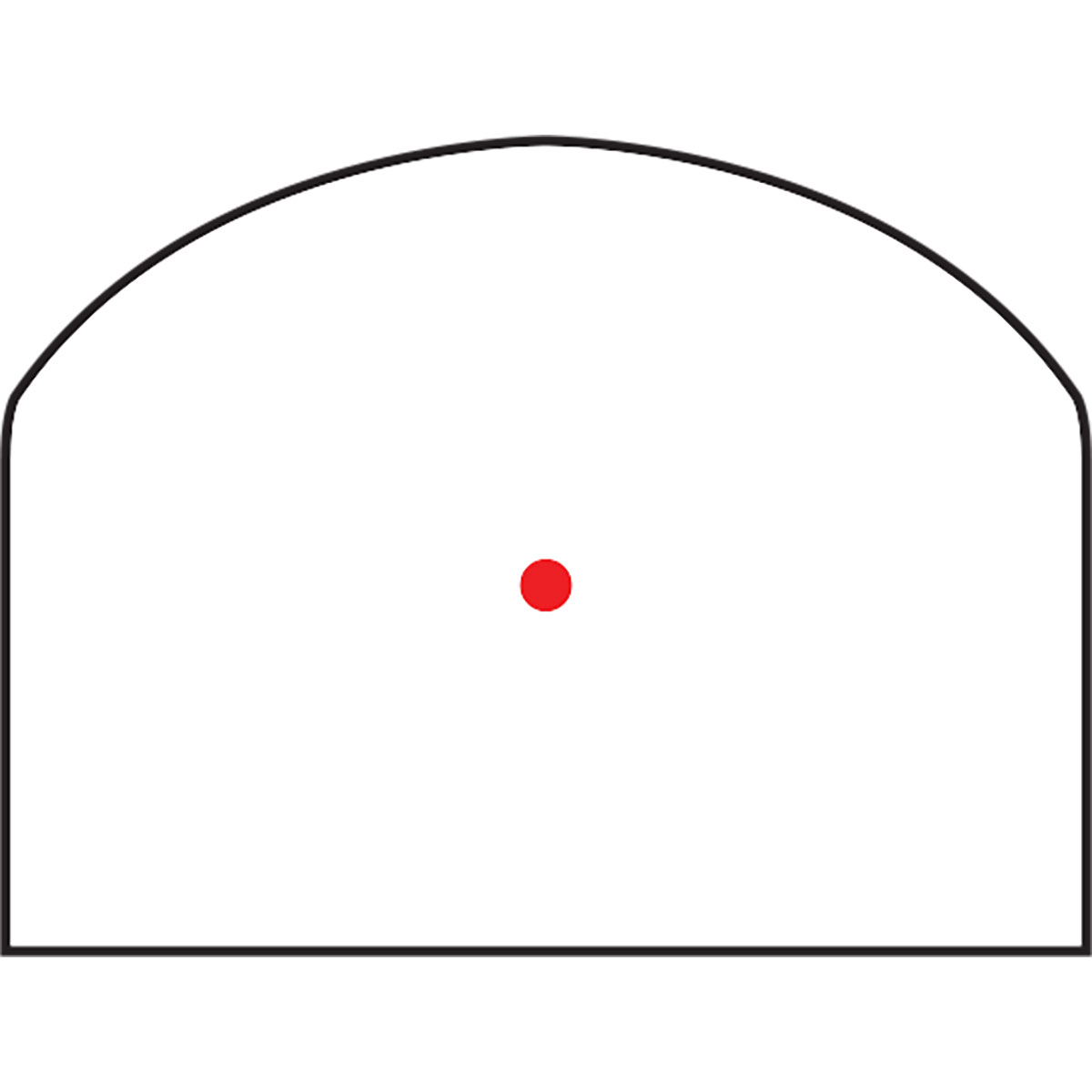

ACOG® 3.5x35 scope with green chevron reticle—the ranging reticle is calibrated for 5.56 (.223 cal) flat-top rifles to 1000 meters. Includes Flat Top Adapter. Daytime illumination is provided by fiber optics and tritium illuminates the scope at night. The TA11-C-100565 combines the technology of the 3.5x35 Trijicon ACOG gun sight with the 3.25 MOA Trijicon RMR® Type 2 red dot sight. This provides the shooter with the option of quick acquisition close range sighting with the Trijicon RMR Type 2 sight and the precision for longer range shooting with the Trijicon ACOG® 3.5x35.

FEATURES:

ALWAYS ON, ALWAYS READY

Most ACOG® models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.

TAKE CONTROL

Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.

RUGGED, RELIABLE HOUSING DESIGN

Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.

“BOTH EYES OPEN” DESIGN

“Both eyes open” shooting using Trijicon's Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.

OUTSTANDING CLARITY

The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.

EXACT TARGET DISTANCES & HOLDS

Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.

COMBAT PROVEN

No other magnified optic has been used more in combat than the ACOG.

SHOCK-RESISTANT

Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.

WATERPROOF

Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.

INCLUDED IN THE BOX:

• 3.25 MOA Trijicon Adjustable RMR Type 2
• Thumbscrew Flattop Adapter (TA51)
• LENSPEN (TA56)
• Lanyard Assembly for Adjuster Caps (TA71E)
• Trijicon Logo Sticker (PR15)
• ACOG BAC Manual
• Warranty Card

SPECIFICATIONS:

• Length x Width x Height - 8 in x 2.1 in x 2.9 in (203.2mm x 53.34mm x 73.66mm)
• Weight – 17.6oz (498.95g)
• Magnification – 3.5x
• Objective Size - 35mm
• Reticle Pattern – Chevron
• Day Reticle Color – Green
• Night Reticle Color – Green
• Bullet Drop Compensating (BDC) - Yes
• Bindon Aiming Concept™ (BAC) – Yes
• Illumination Source – Fiber Optic & Tritium
• Power Source – Fiber Optic & Tritium
• Adjustment – 0.5 MOA Per Click
• Eye Relief – 2.4 in. (60.96mm)
• Exit Pupil - 0.39 in. (9.91mm)
• Field of View (degrees) – 5.5°
• Field of View (feet) – 28.9 ft. @ 100 yds. (9.63m @ 100m)
• Mount – Flattop Thumbscrew Mount (TA51)
• Housing Material - Forged Aluminum
• Finish – Matte Black
