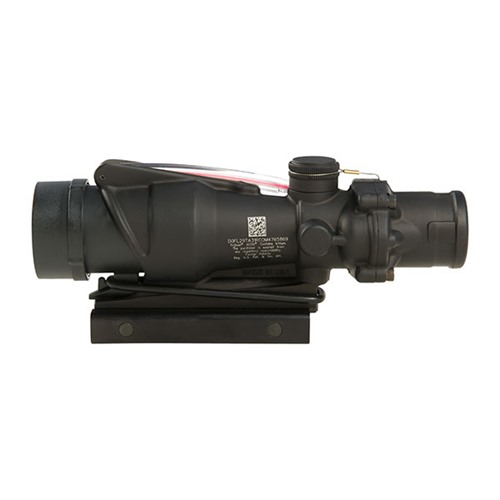

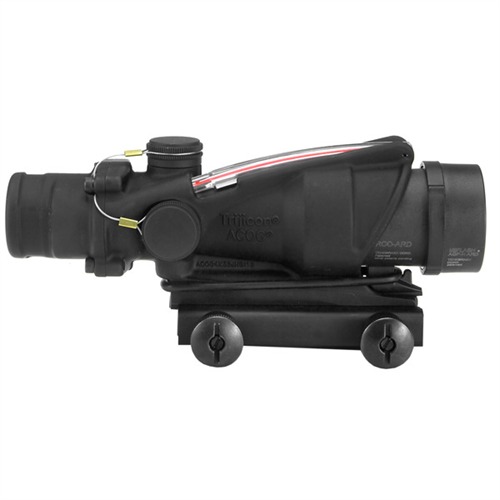

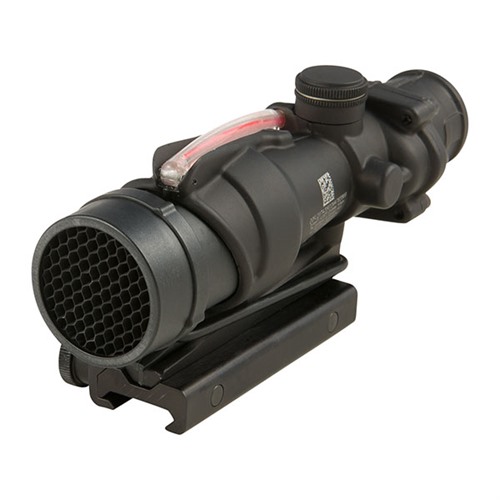

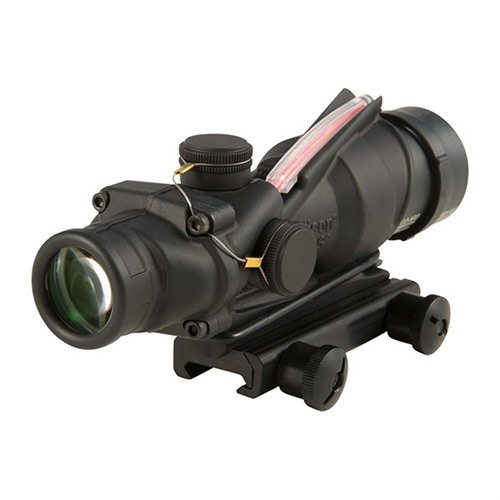

ACOG USMC RCO M4/M4A1 4X32MM FIXED RIFLE SCOPE

The TA31RCO is an Advanced Combat Optical Gunsight (ACOG) designed for the M4 and M4A1 weapon system (14.5" barrel). It incorporates dual illumination technology using a combination of fiber optics and self-luminous tritium. This allows the aiming point to always be illuminated without the use of batteries. The tritium illuminates the aiming point in total darkness, and the fiber optic self-adjusts reticle brightness during daylight according to ambient light conditions. This allows the operator to keep both eyes open while engaging targets and maintaining maximum situational awareness. Designed to the exact specifications of the United States Marine Corps, the unique reticle pattern provides quick target acquisition at close combat ranges while providing enhanced target identification and hit probability out to 800 meters utilizing the Bullet Drop Compensator. No tools are needed for windage and elevation adjustments because the TA31RCO features external adjusters, making it waterproof up to 11m without the caps. Mounting bosses are integrated into the housing by the eyepiece to allow the easy addition of a Trijicon RMR® (not included).

FEATURES:

ALWAYS ON, ALWAYS READY

Most ACOG® models are battery free, featuring a tritium/fiber optic illuminated reticle that automatically adjusts the brightness based on available light.

TAKE CONTROL

Several ACOG models are designed with a user adjustable brightness setting powered by a single AA battery. The 3.5x35 LED and 4x32 LED models both offer six adjustable brightness settings.

RUGGED, RELIABLE HOUSING DESIGN

Fixed-power design allows for minimal moving parts to create a nearly indestructible sighting system.

“BOTH EYES OPEN” DESIGN

“Both eyes open” shooting using Trijicon's Bindon Aiming Concept™ (BAC) feature allows for improved situational awareness.

OUTSTANDING CLARITY

The quality of the glass and multi-coated lenses maximize light-gathering capabilities and clear field of view with zero distortion.

EXACT TARGET DISTANCES & HOLDS

Most ACOG models feature a bullet drop compensating and target-ranging reticle for decisive aiming.

COMBAT PROVEN

No other magnified optic has been used more in combat than the ACOG.

SHOCK-RESISTANT

Proven to withstand recoil from a .22LR to a .50BMG and everything in between. Easily passes U.S. Military drop test requirements.

WATERPROOF

Exceptional waterproof performance that exceeds military standards. Dry nitrogen-filled to eliminate fogging. This optic is tested to withstand and perform in extreme cold and heat with dry-nitrogen filled housing that mitigates fogging.



INCLUDED IN BOX:

  • Thumbscrew Flattop Adapter (TA51)
  • killFlash Anti-Reflection Device (TA91)
  • Scopecoat (TA96)
  • LENSPEN (TA56)
  • Lanyard Assembly for Adjuster Caps (TA71E)
  • Trijicon Logo Sticker (PR15)
  • RCO Manual
  • Warranty Card



SPECIFICATIONS:


  • LENGTH: 5.98”
  • WIDTH: 2.0”
  • HEIGHT: 2.3”
  • MAGNIFICATION: 4x

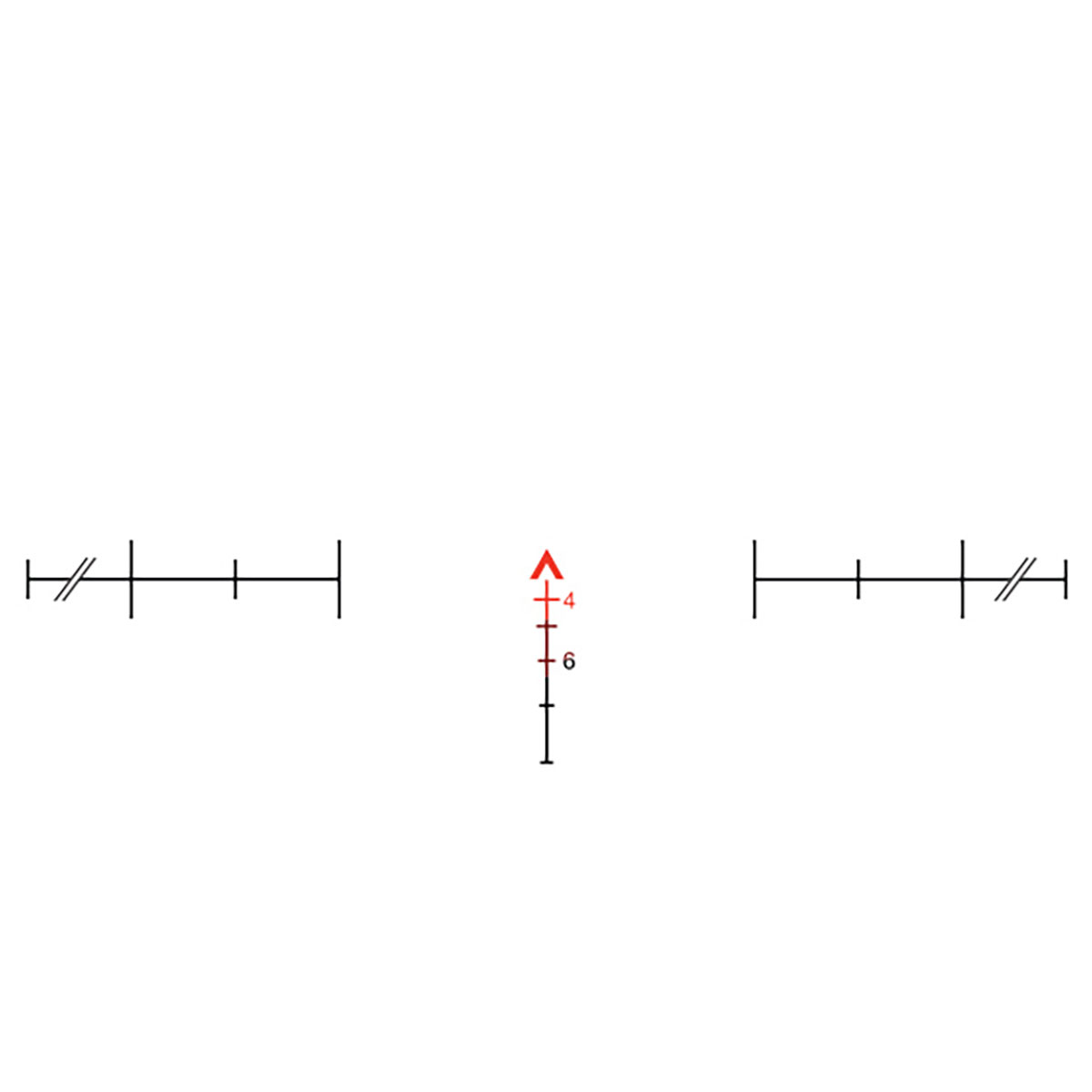

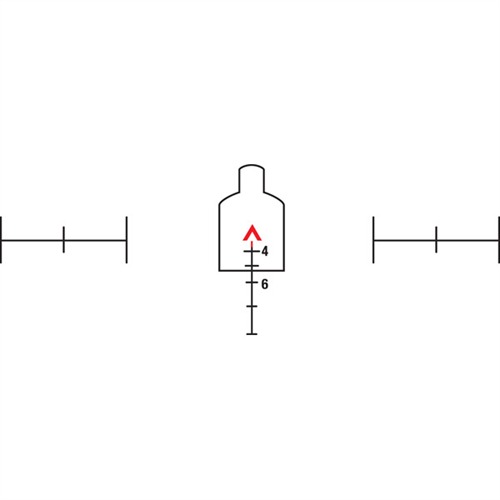

  • RETICLE PATTERN: Chevron
  • ILLUMINATION SOURCE: Fiber Optics & Tritium
  • EXIT PUPIL: 0.32 in. (8.13mm)
  • FIELD OF VIEW (feet): 36.8 ft. @ 100 yds. (12.27m @ 100m)
  • HOUSING MATERIAL: Forged Aluminum
  • WEIGHT: 14.9 oz. (422.41g)
  • OBJECTIVE SIZE: 32mm
  • DAY RETICLE COLOR: Red
  • EYE RELIEF: 1.5 in. (38.1mm)
  • FIELD OF VIEW (degrees): 7°
  • FINISH: Matte Black
Available options: 892000039

Hand:
Ambidextrous
Battery Type:
No
Click Value:
1/2 MOA
Item Height (Inches):
2.300
Max Magnification:
4
Cartridge:
223 Remington,5.56x45 NATO
Finish:
Matte
Item Width (Inches):
2.000
Model Number:
TA31RCO-M4CP
Color:
Black
Item Length (Inches):
5.980
Min Magnification:
4
Material:
Aluminum
Eye Relief (Maximum Inches):
1.5
Quantity:
1
Mount Type:
Mount
Reticle Type:
Red Chevron USMC
Eye Relief (Minimum Inches):
1.5
Scope Tube Diameter:
NA
Focal Plane:
Fixed
Illumination:
Yes
Item Weight (lbs):
0.988
Objective Size:
32

Oversea shipping:
No
Shop All ED BROWN

ACOG USMC RCO M4/M4A1 4x32mm Fixed Red Chevron W/TA51 Mount

Your Price
$2,299.99 *
Crow # 892000039
MFR # TA31RCO-M4CP
UPC 719307302075
