USMC-SCO VCOG 1-8X28MM FFP ILLUMINATED RIFLE SCOPE W/STD MOUNT

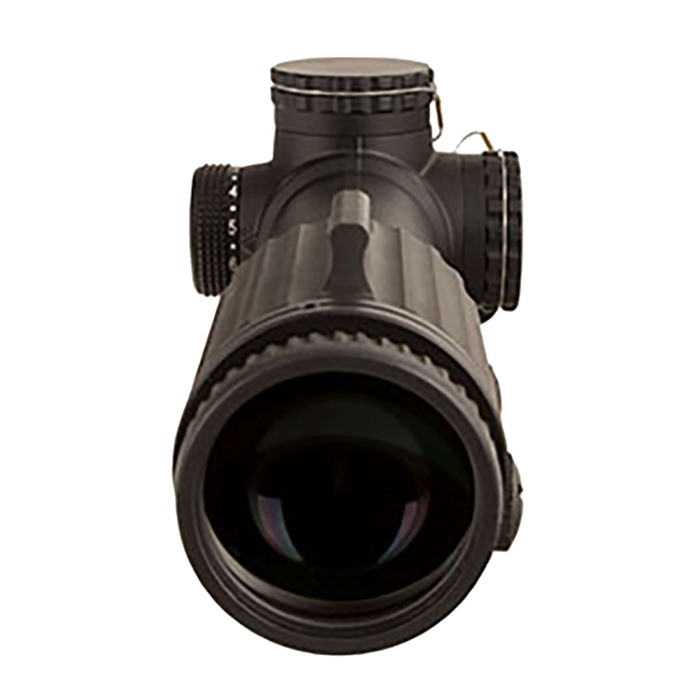

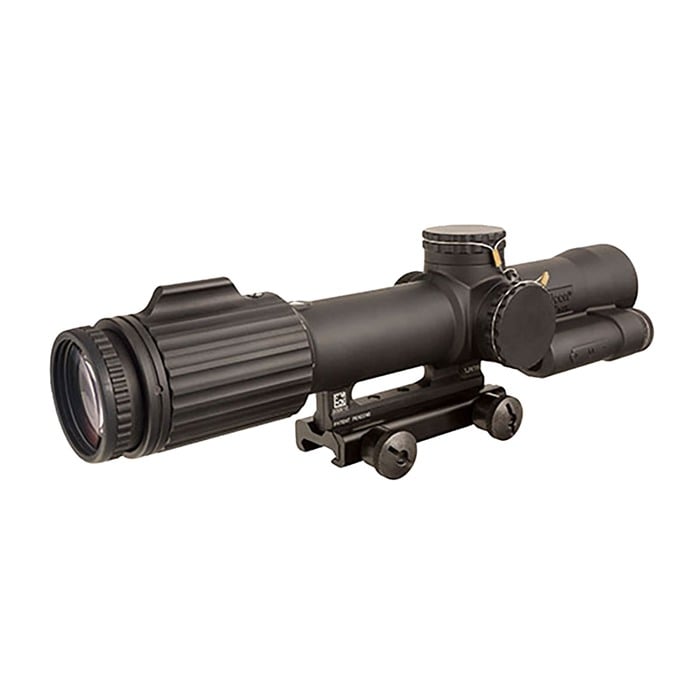

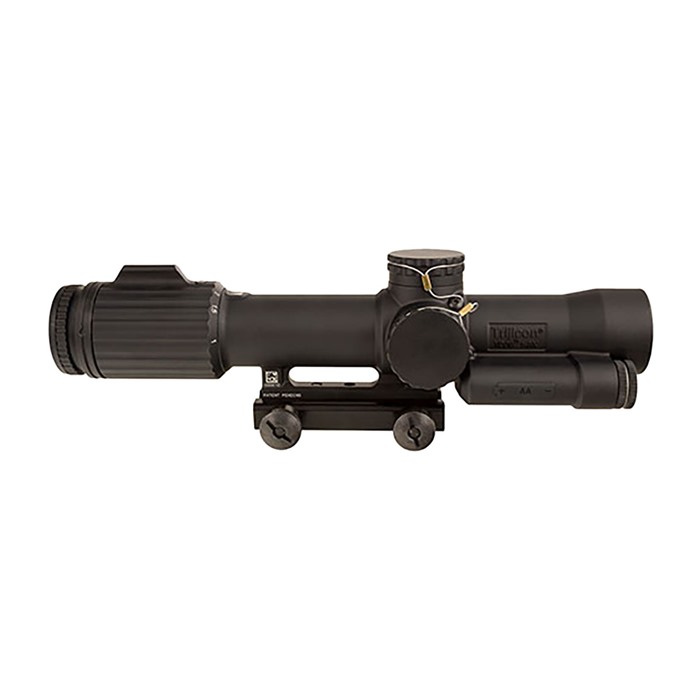

The Trijicon 1-8x28 VCOG® (Variable Combat Optical Gunsight) Commercial SCO is a highly rugged, variable magnification riflescope designed for close quarter battle (CQB) and long distance marksmanship. This offering is functionally identical to the USMC Squad Common Optic (SCO) VCOG. With a forged aircraft-grade 7075-T6 aluminum housing, the VCOG® is nearly indestructible. Superior glass provides exceptional clarity and color with zero distortion. The universal segmented circle / MRAD crosshair dot with wind holds reticle is designed for multi-platform use, accommodating multiple calibers, ammunition weights, and barrel lengths. The first focal plane reticle allows subtensions and drops to remain true at any magnification, allowing the shooter to quickly and accurately apply the correct hold. With ruggedized electronics, the LED reticle is robust enough for any application. Powered by a lithium AA battery (provided), the 1-8x28 VCOG offers a battery life of 633 hours at setting 6. Choose from 11 user-selectable brightness settings, 2 night vision settings, 8 day settings, and 1 super-bright setting. An integrated dial fin allows easy rotation through the magnification range, and a near-constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).
The Trijicon 1-8x28 VCOG® (Variable Combat Optical Gunsight) Commercial SCO is a highly rugged, variable magnification riflescope designed for close quarter battle (CQB) and long distance marksmanship. This offering is functionally identical to the USMC Squad Common Optic (SCO) VCOG. With a forged aircraft-grade 7075-T6 aluminum housing, the VCOG® is nearly indestructible. Superior glass provides exceptional clarity and color with zero distortion. The universal segmented circle / MRAD crosshair dot with wind holds reticle is designed for multi-platform use, accommodating multiple calibers, ammunition weights, and barrel lengths. The first focal plane reticle allows subtensions and drops to remain true at any magnification, allowing the shooter to quickly and accurately apply the correct hold. With ruggedized electronics, the LED reticle is robust enough for any application. Powered by a lithium AA battery (provided), the 1-8x28 VCOG offers a battery life of 633 hours at setting 6. Choose from 11 user-selectable brightness settings, 2 night vision settings, 8 day settings, and 1 super-bright setting. An integrated dial fin allows easy rotation through the magnification range, and a near-constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).
FEATURES:
SUPERIOR QUALITY GLASS
Multi-coated lenses provide superior clarity and light-gathering capabilities with zero distortion
VIRTUALLY INDESTRUCTIBLE
Tested to MIL-STD-810G, a series of tests approved by the U.S. Department of Defense to simulate conditions in the field.
RAPID TARGET ACQUISITION
First focal plane reticle allows user to rapidly acquire target and apply correct hold throughout magnification range.
BRIGHT, CRISP ILLUMINATION
Brilliantly illuminated reticle is powered by a single AA battery.
QUICK, ACCURATE RANGING RETICLES
1-6x24 offers BDC or Universal MRAD and MOA reticles; 1-8x28 offers Universal MRAD and MOA reticles.
EASY-TO-SET ADJUSTERS
Allows user to easily adjust windage and elevation.
NO RINGS NEEDED
The need for conventional ring mounts is eliminated with the integrated mounting adapter that provides quick and easy mounting to any rail system. Compatible with many rails in the marketplace designed to fit the Trijicon ACOG®.
ADJUSTABLE BRIGHTNESS SETTINGS
Multiple brightness settings with an “off” between each setting. 1-8x28 models feature 11 brightness settings, 1-6x24 models feature 6 brightness settings.
QUICK MAGNIFICATION ADJUSTMENTS
Integrated dial fin allows easy rotation through magnification settings.
INCLUDED IN THE BOX:
- Mount
- Lithium AA Battery
- LENSPEN® (TA56)
- Trijicon Logo Sticker (PR15)
- Manual
- Warranty Card
SPECIFICATIONS:
- Length –10.93 in (274.32mm – 277.62mm)
- Width –2.91 in (71.12mm – 73.91mm)
- Height – 2.8 iN (71.12mm – 83.82mm)
- Weight – 28oz
- Magnification – 1-8x
- Objective Size - 28mm

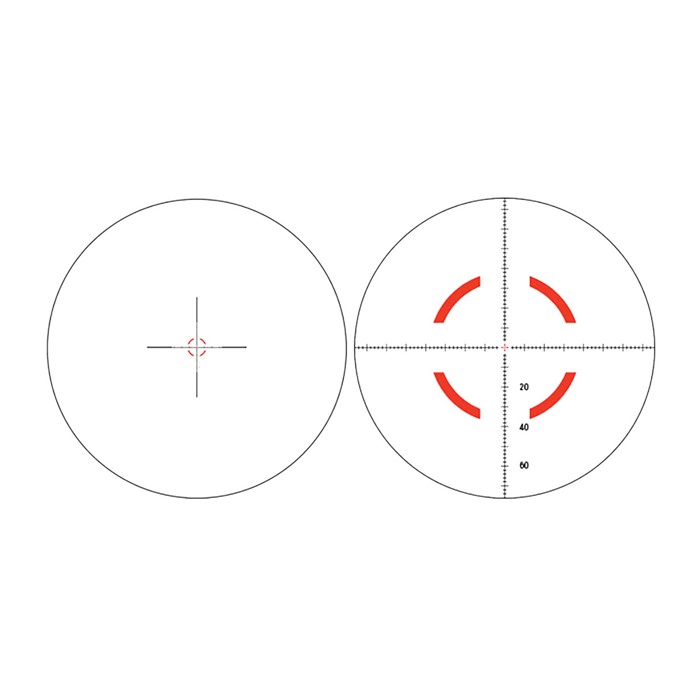

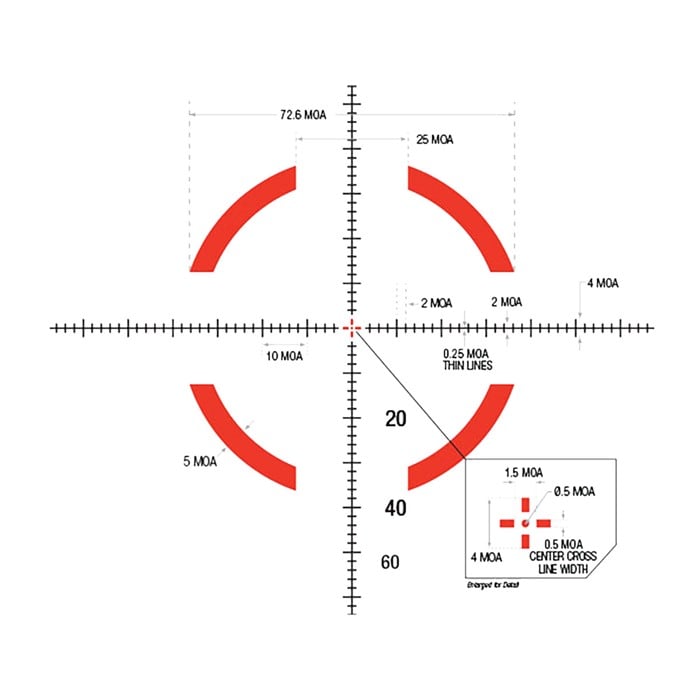

- Reticle Pattern – Segmented Circle/Crosshair
- Day Reticle Color – Red
- Night Reticle Color – Red
- Focal Plane - First
- Bullet Drop Compensating (BDC) - No
- Bindon Aiming Concept™ (BAC) – Yes
- Illumination Source – LED
- Illumination Settings - 11 Total Settings: 2 Night Vision, 8 Day, and 1 Super-Bright Setting
- Power Source – AA Lithium or Alkaline Battery
- Battery Life - 633 hours (26.4 days) at setting 6
- Adjustment – 0.1 MRAD Per Click
- Eye Relief – 4 in.
- Exit Pupil - 0.40 in. - 0.14 in. (10.16mm - 3.56mm)
- Field of View (degrees) – 20° - 2.5°
- Field of View (feet) – 109.2 ft. - 13.1 ft. @ 100 yds. (36.4 - 4.37m @ 100m)
- Mount – Larue Tactical LT799 Mount or Flattop Thumbscrew Mount (TA51)
- Housing Material - Forged Aluminum
- Finish – Matte Black
- Submersion Depth – 66 ft (20m)
Battery Type:
AA
Click Value:
1/4 MOA
Eye Relief (Maximum Inches):
4
Color:
Black
Cartridge:
Focal Plane:
First
Finish:
Matte
Hand:
Right
Eye Relief (Minimum Inches):
3.9
Item Width (Inches):
2.800
Item Length (Inches):
10.800
Item Height (Inches):
2.800
Illumination:
Yes
Max Magnification:
8
Material:
Aluminum
Item Weight (lbs):
1.969
Min Magnification:
1
Scope Tube Diameter:
NA
Model Number:
VC18-C-2400001
Mount Type:
TA51
Objective Size:
28
Reticle Type:
Red MOA Crosshair Dot
Quantity:
1
Oversea shipping:
No
Shop All ED BROWN
VCOG 1-8x28mm FFP Illum Red MOA Crosshair Dot BLK W/TA51 MNT
Your Price
$2,299.99 *
Crow # 892000275
MFR # VC18-C-2400001
UPC 719307313088
Iowa Warehouse
North Carolina Warehouse
