VCOG 1-6X24MM FFP ILLUMINATED RIFLE SCOPE

The Trijicon 1-6x24 VCOG® (Variable Combat Optical Gunsight) is a rugged variable powered riflescope that accommodates close quarter battle (CQB) and long distance marksmanship. It features superior glass quality and light gathering capabilities with zero distortion. The bullet drop compensating and ranging reticles allow for the shooter to quickly and accurately estimate range and apply the correct hold. The first focal plane reticle allows the subtensions and drops to remain true at any magnification. With a forged 7075-T6 aircraft-aluminum-alloy housing, the VCOG® is an exceptionally durable and nearly indestructible sighting system. Robust enough for any application, the VCOG® utilizes a single AA battery, commonly found across the globe and offers 6 adjustable brightness settings for the LED reticle. When powered by a lithium AA battery (like the one provided), it boasts a considerable battery life of 700 hours at setting 4 (constant on). An integrated dial fin allows easy rotation through the magnification range and a constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).

FEATURES:

SUPERIOR QUALITY GLASS

Multi-coated lenses provide superior clarity and light-gathering capabilities with zero distortion

VIRTUALLY INDESTRUCTIBLE

Tested to MIL-STD-810G, a series of tests approved by the U.S. Department of Defense to simulate conditions in the field.

RAPID TARGET ACQUISITION

First focal plane reticle allows user to rapidly acquire target and apply correct hold throughout magnification range.

BRIGHT, CRISP ILLUMINATION

Brilliantly illuminated reticle is powered by a single AA battery.

QUICK, ACCURATE RANGING RETICLES

1-6x24 offers BDC or Universal MRAD and MOA reticles; 1-8x28 offers Universal MRAD and MOA reticles.

EASY-TO-SET ADJUSTERS

Allows user to easily adjust windage and elevation.

NO RINGS NEEDED

The need for conventional ring mounts is eliminated with the integrated mounting adapter that provides quick and easy mounting to any rail system. Compatible with many rails in the marketplace designed to fit the Trijicon ACOG®.

ADJUSTABLE BRIGHTNESS SETTINGS

Multiple brightness settings with an “off” between each setting. 1-8x28 models feature 11 brightness settings, 1-6x24 models feature 6 brightness settings.

QUICK MAGNIFICATION ADJUSTMENTS

Integrated dial fin allows easy rotation through magnification settings.

INCLUDED IN THE BOX:

• Thumb Screw Mount (TA51)
• Lithium AA Battery
• LENSPEN® (TA56)
• Trijicon Logo Sticker (PR15)
• Manual
• Warranty Card

SPECIFICATIONS:

• Length – 10.05 in (255.27mm)
• Width – 2.51 in (63.75mm)
• Height – 2.73 in (69.34mm)
• Weight – 23.2 oz (657.71g)
• Magnification – 1-6x
• Objective Size - 24mm

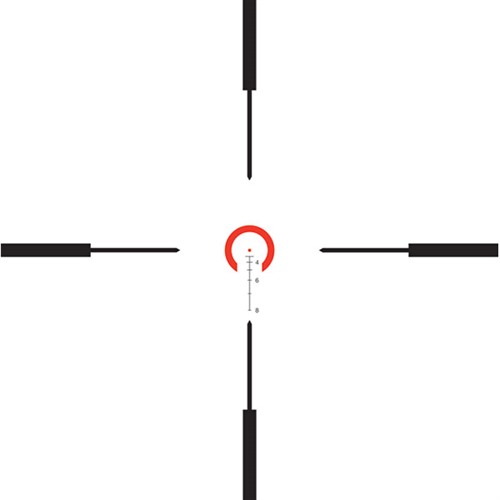

• Reticle Pattern – Segmented Circle/Crosshair, Horseshoe Dot
• Day Reticle Color – Red or Green
• Night Reticle Color – Red or Green
• Focal Plane - First
• Bullet Drop Compensating (BDC) - Yes
• Bindon Aiming Concept™ (BAC) – Yes
• Illumination Source – LED
• Power Source – AA Lithium or Alkaline Battery
• Battery Life - 700 hours continuous use at brightness setting 4 of 6
• Adjustment – 0.1 MIL or 0.5 MOA Per Click
• Adjustment Range - Elevation: 90 MOA total travel; Windage: 90 MOA total travel; Per Revolution: 35 MOA OR Elevation: 26.2 MIL total travel; Windage: 26.2 MIL total travel; Per Revolution: 8 MIL
• Eye Relief – 4 in. (101.6mm)
• Exit Pupil - 0.40 in. - 0.15 in. (10.16mm - 3.81mm)
• Field of View (degrees) – 18° - 3°
• Field of View (feet) – 95 ft. - 15.9 ft. @ 100 yds. (31.67 - 5.3m @ 100m)
• Mount – Flattop Thumbscrew Mount (TA51)
• Housing Material - Forged Aluminum
• Finish – Matte Black
• Submersion Depth – 66 ft (20m)
