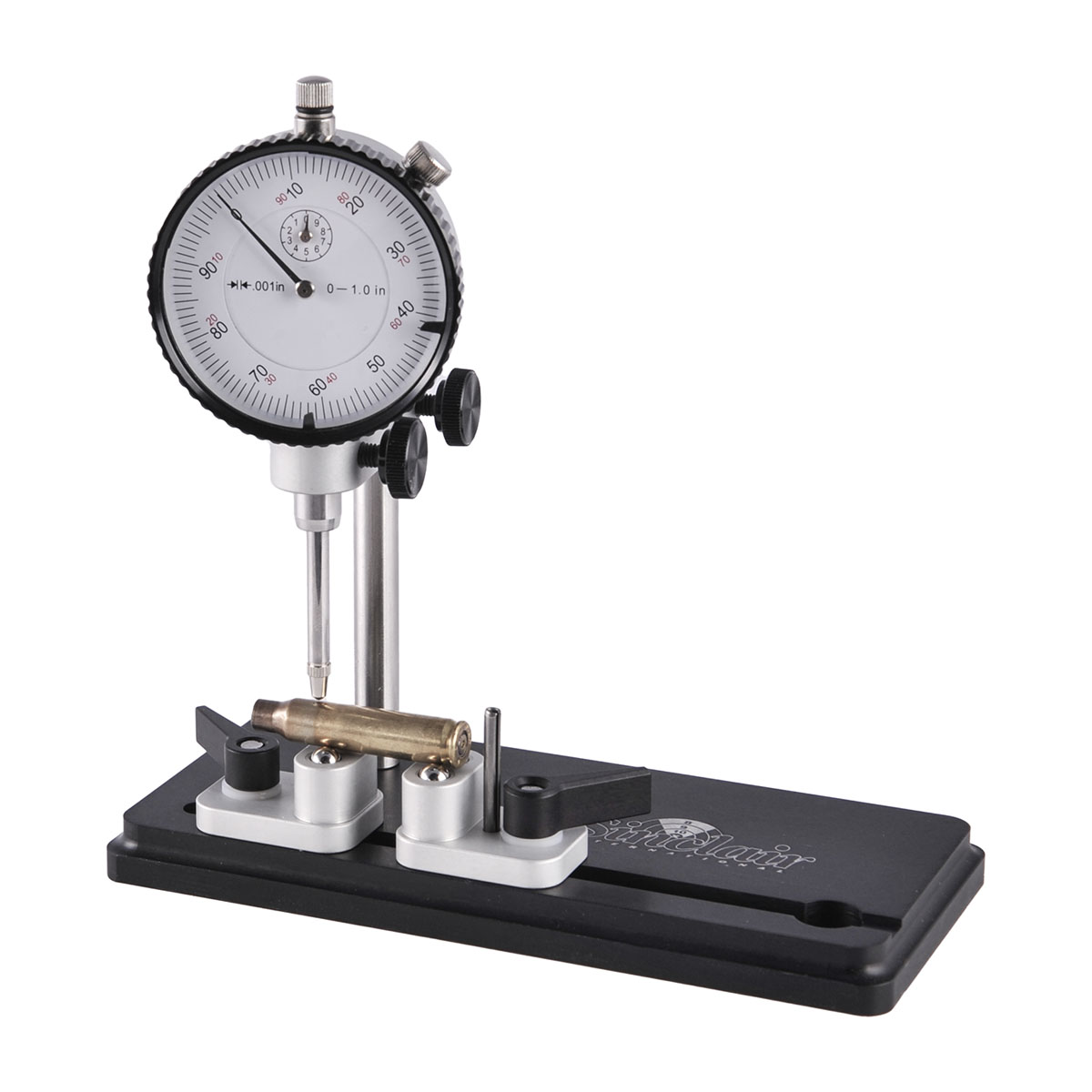

We believe the Sinclair Concentricity Gauge is the easiest to use and most accurate gauge of its kind on the market. Precision made for a lifetime of use, the Sinclair Concentricity Gauge will accept cases up to 50 BMG. The Sinclair Concentricity Gauge is used to measure runout by rotating the case or loaded round on two sets of bearings that are captured in anodized aluminum blocks. These bearing blocks are adjustable longitudinally to allow for different case lengths or varying lengths of loaded rounds. The handloader can measure sized cases on the neck, and measure loaded rounds on the neck or out on the bullet. The bearing blocks ride in a milled slot in the gauge base plate. This milled slot keeps the blocks in alignment with each other. This arrangement provides the best support for the cartridge, enabling the user to spin the cartridge smoothly. Large thumb levers on the bearing blocks make adjustments quick and easy. The anodized base plate is extremely stable allowing the user to take accurate readings. The indicator tower is designed to permit vertical and side-to-side adjustment of the dial indicator. The mounting block for the dial indicator is designed to accommodate dial indicators with standard 0.375" mounts. This is a quality measuring tool for the serious precision reloader.

Available options: 749007271 , 749007305 , 749007902

Model Number:
Gauge w/ Dial
Kit:
Shop All ED BROWN

Concentricity Gauge With Dial Indicator

MAP: 119.990000000
Your Price
$2,299.99 *
Crow # 749007305
MFR # SINCLAIR CONCENTRICITY GAUGE W
UPC 050806111585
