Technical Specs
- Model Number: NTG100

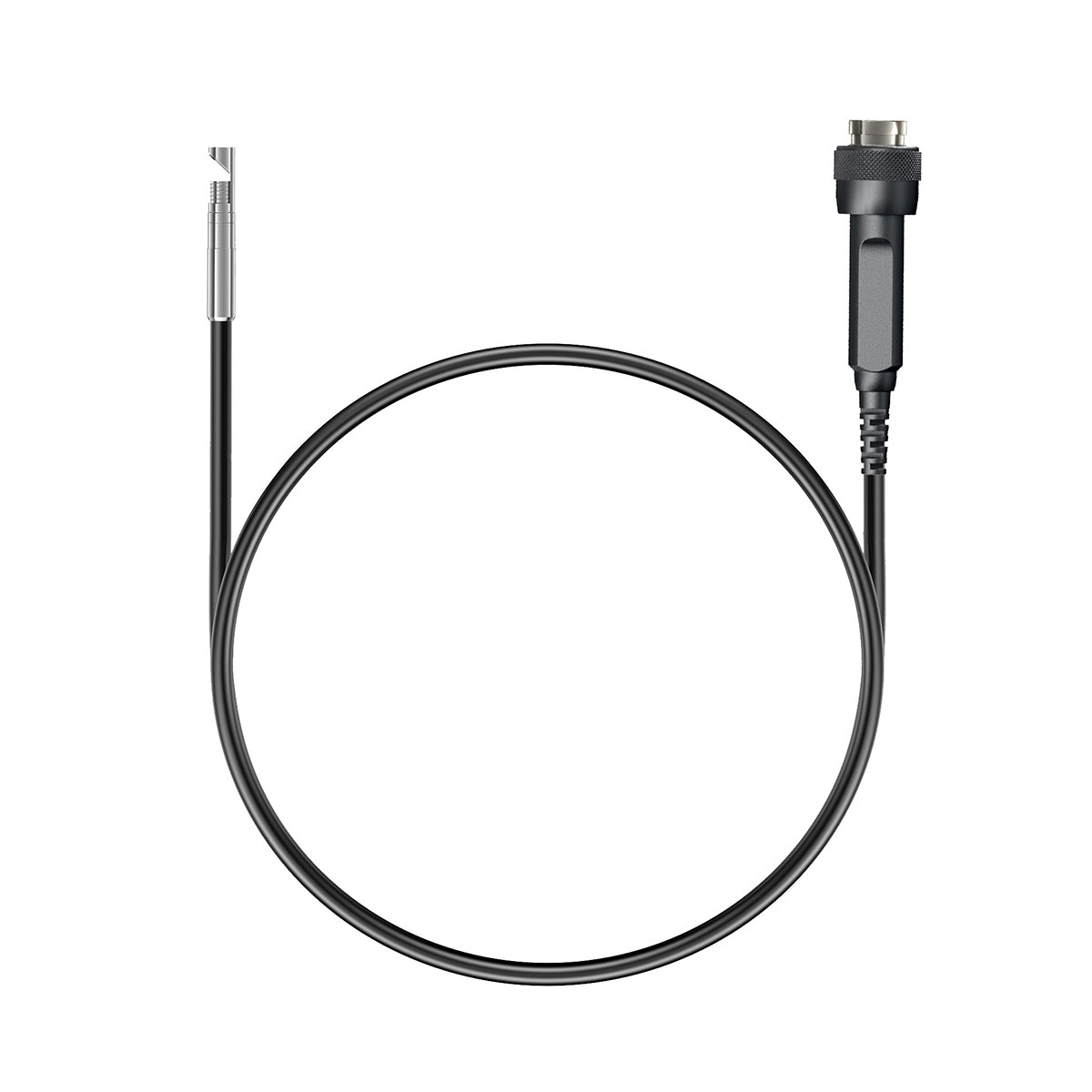

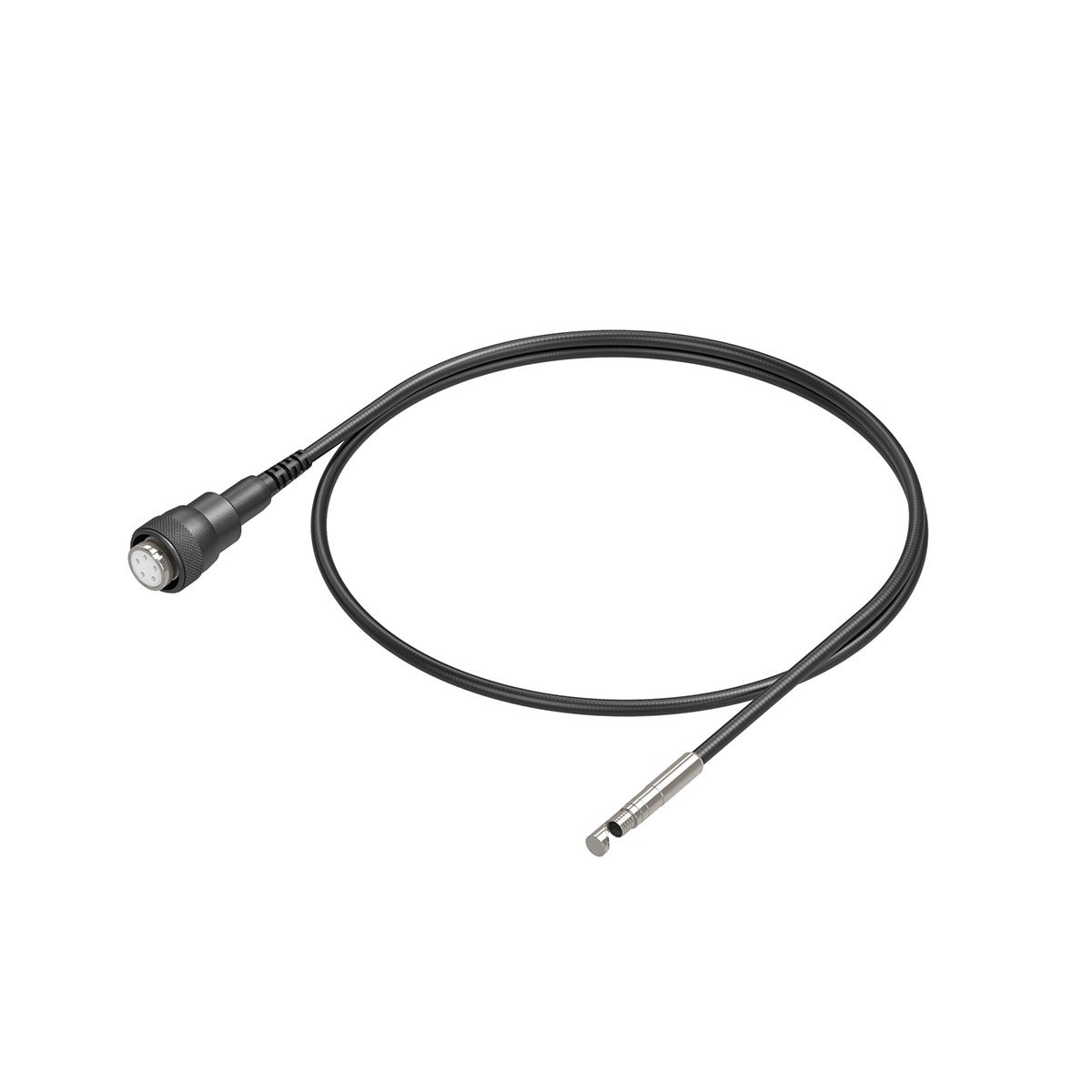

- Probe Type: Flexible steel fiber probe
- Diameter: 0.197 in (5.0 mm)
- Probe Length: 45 in (115 cm)
- Data Cable Length: 60 in (150 cm)
- Megapixel: 1.0 Megapixel
- Resolution: 1280x720 pixels
- Viewing Angle: 70°
Depth of Field of the camera WITHOUT side-view mirror
1.18 in to 3.94 in (30 mm to 100 mm)

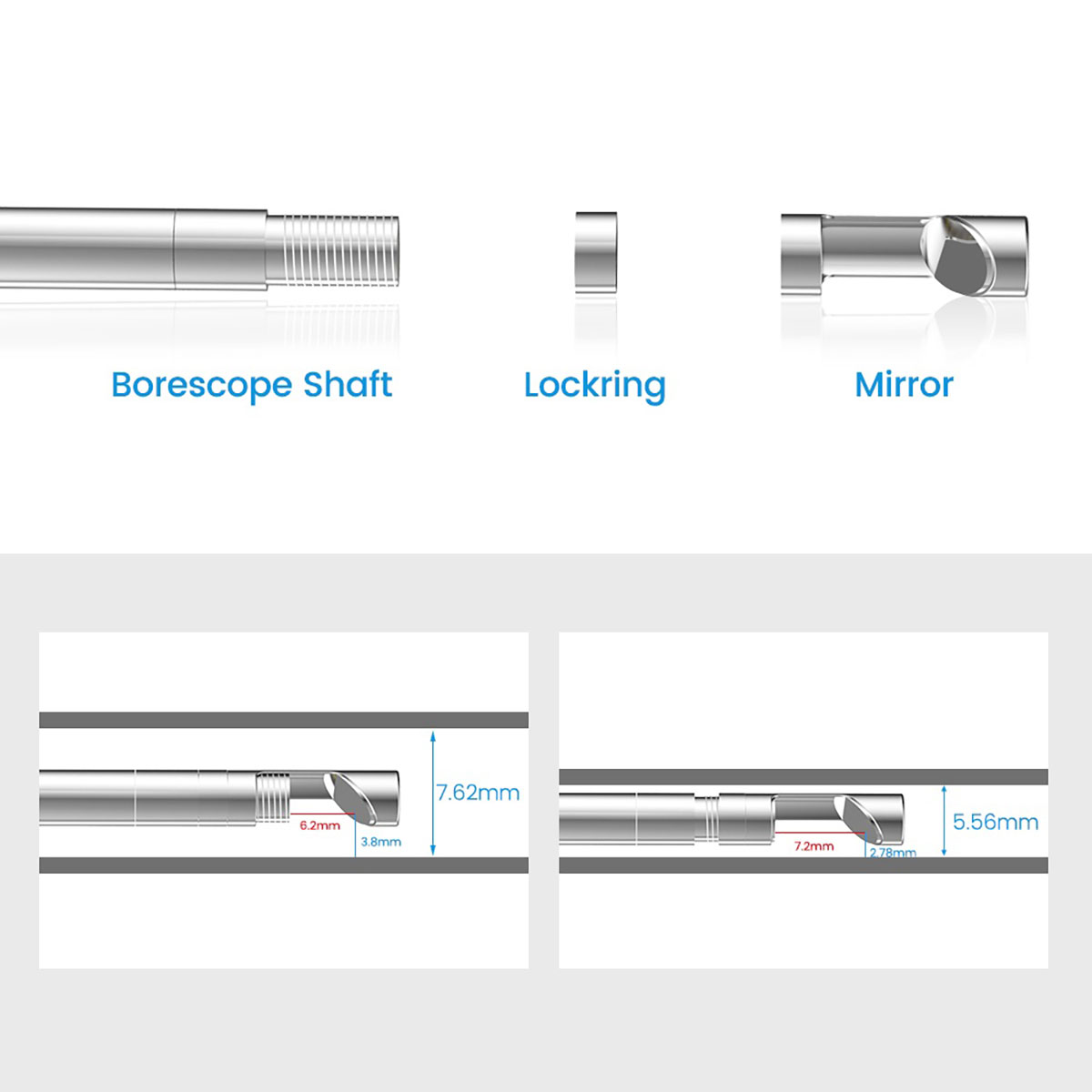

Depth of Field of the camera WITH 0.2 in (5 mm) side-view mirror:
With lock ring on: 0 in to 0.28 in (0 mm to 7 mm)
Without lock ring: 0 in to 0.39 in (0 mm to 10 mm)
Depth of Field of the camera WITH 0.28 in (7 mm) side-view mirror:
With lock ring on: 0 in to 0.08 in (0 mm to 2mm)
Without lock ring: 0 in to 0.16 in (0 mm to 4 mm)
Depth of Field of the camera WITH 0.33 in (8.3 mm) side-view mirror:
With lock ring on: 0 in to 0.08 in (0 mm to 2 mm)
Without lock ring: 0 in to 0.14 (0 mm to 3.5 mm)
Depth of Field of the camera WITH 0.47 in (12 mm) side-view mirror:
With lock ring on: 0 in to 0.06 in (0 mm to 1.5 mm)
Without lock ring: 0 in to 0.12 in (0 mm to 3 mm)
Caliber (depends on the size of the side-view mirror you use):
0.22 in (5 mm) Caliber and larger
0.28 in (7 mm) Caliber and larger
0.33 in (8.3 mm) Caliber and larger
0.47 in (12 mm) Caliber and larger
LED Light: 6 Adjustable High-intensity LEDs
Splash, Water and Dust Resistant: Rated IP67 (maximum depth of 1-meter up to 30 minutes) under IEC standard 60529
What is in the Package?
- Borescope
- 3x 0.2 in (5 mm) Side-view Mirrors
- Aviation to USB-A Connector
- USB-C Adaptor
- Instructions and Manuals
- User Manual
- Safety Manual
Available options:
430107393
Color:
Black
Battery Type:
No
Model Number:
Kit:
Material:
Stainless Steel
Quantity:
1
Shop All ED BROWN
NTG100 45" Flexible USB Borescope
MAP:
55.990000000
Your Price
$2,299.99 *
Crow # 430107393
MFR # NTG100
UPC 850034851075
Iowa Warehouse
North Carolina Warehouse
