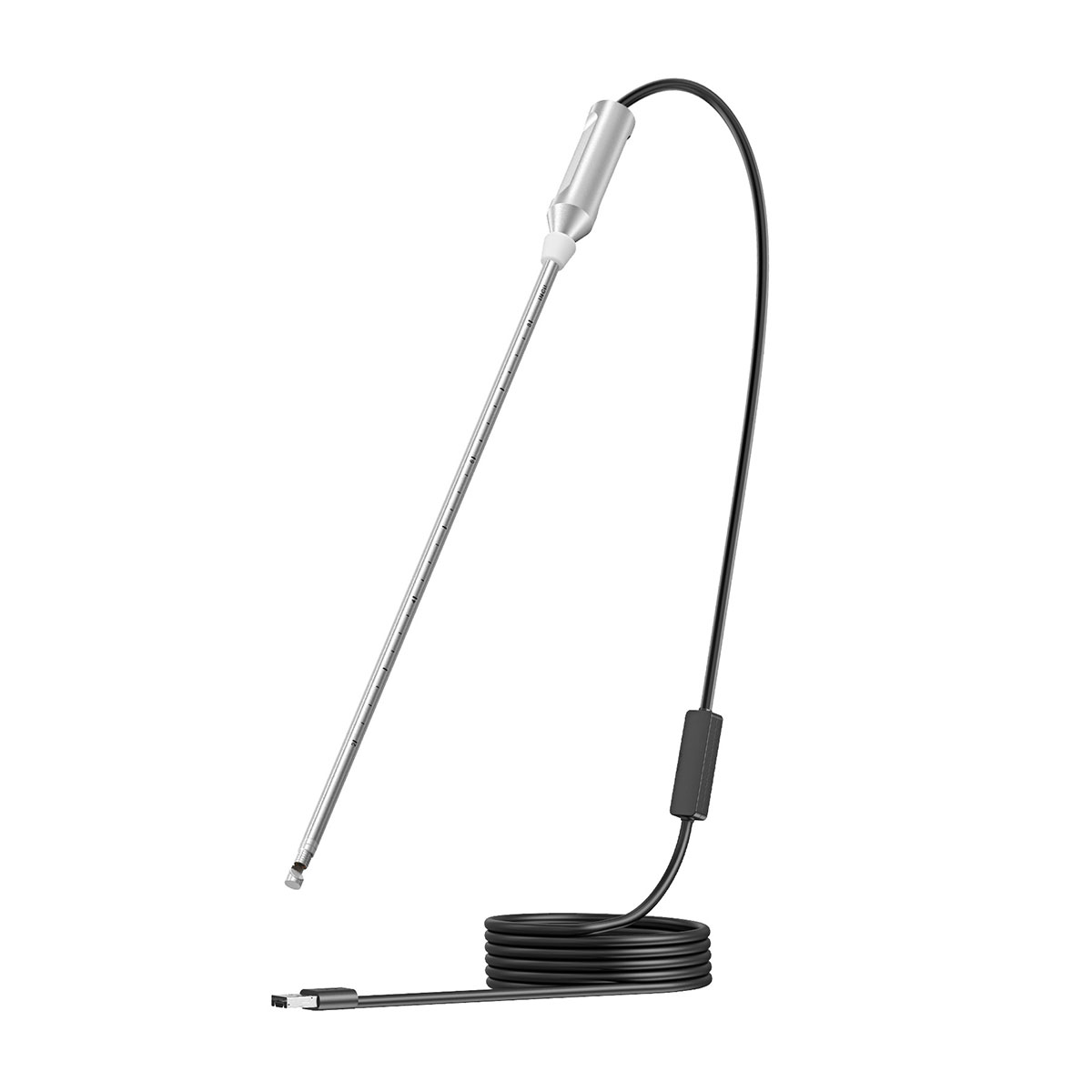

The Teslong NTG100P USB Pistol Barrel Borescope will help you inspect the inside of your pistol barrel. This is a great tool to evaluate cleanliness, throat erosion, tool marks, rifling wear, chamber damage, and fouling. SAVE TIME AND MONEY - With an innovative close-focusing camera, assess your cleaning regimen or diagnose firearm problems to save time and money!
INNOVATIVE CLOSE-FOCUSING CAMERA
SIDE-VIEW MIRROR
With an adjustable, detachable, 90° side-view mirror, you can check the barrel wall, or remove it to check the firing pin.
6 LED RING LIGHTS
Adjustable for brightness to give the camera a perfect view of the darkest inspection areas.
SHORTER FOR PISTOL BARRELS
10-INCHES LONG
Easier to store, transport, and inspect pistol barrels. The 10-inch probe is long enough to inspect almost all pistols.
FITS 0.22 CALIBER AND LARGER
The 0.2-inch flexible diameter probe allows easy entry into rifle barrels as small as .22 caliber.
Technical Specs
- Model Number: NTG100P
- Probe Type: Rigid stainless steel probe
- Diameter: 0.197 in (5.0 mm)
- Probe Length: 10 in (25.4 cm)
- Data Cable Length: 60 in (150 cm)
- Megapixel: 1.0 Megapixel
- Resolution: 1280x720 pixels
- Viewing Angle: 70°
Depth of Field of the camera WITHOUT side-view mirror:
1.18 in to 3.94 in (30 mm to 100 mm)
Depth of Field of the camera WITH 0.2 in (5 mm) side-view mirror:
With lock ring on: 0 in to 0.28 in (0 mm to 7 mm)
Without lock ring: 0 in to 0.39 in (0 mm to 10 mm)
Depth of Field of the camera WITH 0.28 in (7 mm) side-view mirror:
With lock ring on: 0 in to 0.08 in (0 mm to 2 mm)
Without lock ring: 0 in to 0.16 in (0 mm to 4 mm)
Depth of Field of the camera WITH 0.33 in (8.3 mm) side-view mirror:
With lock ring on: 0 in to 0.08 in (0 mm to 2 mm)
Without lock ring: 0 in to 0.14 (0 mm to 3.5 mm)
Depth of Field of the camera WITH 0.47 in (12 mm) side-view mirror:
With lock ring on: 0 in to 0.06 in (0 mm to 1.5 mm)
Without lock ring: 0 in to 0.12 in (0 mm to 3 mm)
Caliber (depends on the size of the side-view mirror you use):
0.22 in (5 mm) Caliber and larger
0.28 in (7 mm) Caliber and larger
0.33 in (8.3 mm) Caliber and larger
0.47 in (12 mm) Caliber and large
LED Light: 6 Adjustable High-intensity LEDs
Splash, Water, and Dust Resistant: Rated IP67 (maximum depth of 1-meter up to 30 minutes) under IEC standard 60529
What is in the Package?
- Borescope
- 3x 0.2 in (5 mm) Side-view Mirrors
- Aviation to USB-A Connector
- USB-C Adaptor
Available options:
430107395
Quantity:
1
Kit:
Battery Type:
No
Material:
Stainless Steel
Color:
Steel
Model Number:
Shop All ED BROWN
NTG100P 10" Rigid USB Borescope
MAP:
54.990000000
Your Price
$2,299.99 *
Crow # 430107395
MFR # NTG100P
UPC 850034851082
