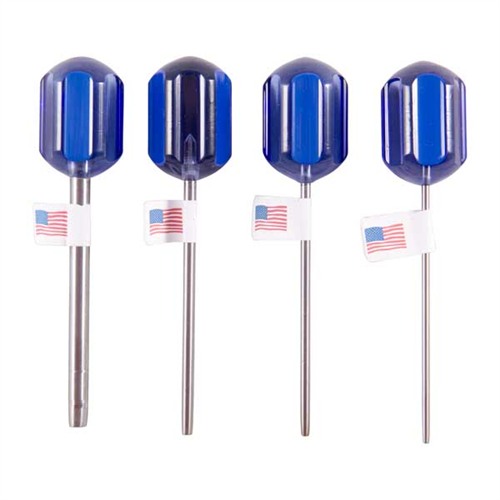

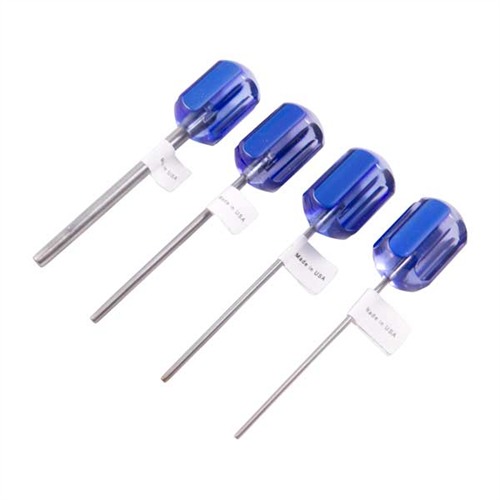

ALIGNMENT & PUSH PUNCHES

For the professional and home gunsmith alike these punches take much of the frustration out of aligning parts and assemblies. And they provide faster and easier disassembly, too. Furnished with a large, easy-to-grasp, handle that gives excellent control for aligning holes and starting pins. Slightly undersized shank provides a close fit that won’t bind in the hole. A slight taper, 3⁄4" from the end is especially useful when fitting parts that require repeated assembly and disassembly. Four sizes fit the majority of pins found on the AR-15, 1911 Auto, Remington 870 and Ruger Revolvers. Won’t roll off bench. Alignment/Push Punch Set includes one each of the punches listed below, plus a Delrin bench block to store and organize all eight punches, so you always have them at your fingertips. Bench block also available separately.




SPECIFICATIONS:

• Plastic Handle
• Steel Shank or 360 Alloy Brass Shank
• Length: 3-1/4"
• Set Contains:
  • (4) Brass Punches
  • (4) Steel Punches
  • (1) Steel and (1) Brass of each diameter.
• Diameter options:
  • 0.092"
  • 0.120"
  • 0.151"
  • 0.246"
• Delrin Bench Block (TAN)
  • Length: 6-3/8"
  • Width: 3"
  • Thickness: 3/4"
