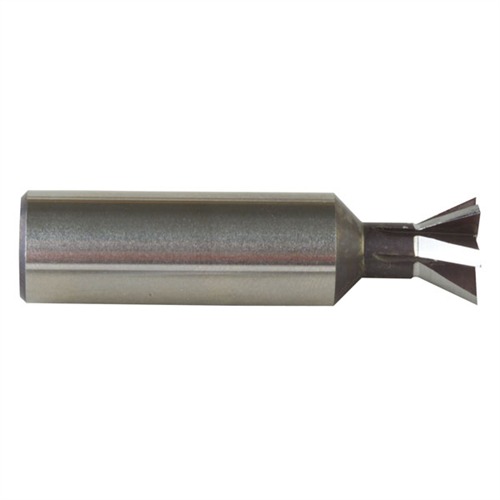

1911 AUTO HSS LO-MOUNT SIGHT BASE CUTTER
These cutters are specially designed by us and made to our specifications for cutting the sight base slot required to mount the Wichita and Novak Lo-Mount 1911 Auto sights. Use ΒΌ' carbide end mill to remove the bulk of the material (see drawing above) then make final dovetail cut. Final cut to lower rear of slide is done with an end mill and is not a part of the sight base cut. Made slightly undersized to compensate for variations in sight bases and milling tolerances on installation. With the popularity of custom 1911 Auto Pistols, this cutter is one that you will use frequently in your custom work.
SPECIFICATIONS:
These cutters are specially designed by us and made to our specifications for cutting the sight base slot required to mount the Wichita and Novak Lo-Mount 1911 Auto sights. Use ΒΌ' carbide end mill to remove the bulk of the material (see drawing above) then make final dovetail cut. Final cut to lower rear of slide is done with an end mill and is not a part of the sight base cut. Made slightly undersized to compensate for variations in sight bases and milling tolerances on installation. With the popularity of custom 1911 Auto Pistols, this cutter is one that you will use frequently in your custom work.
SPECIFICATIONS:
- Length: 2"
- Cutter Diameter: 0.490"
- Shank Diameter: 1/2"
- 65 Degree Shoulder
- CAUTION: For use in milling machine only.
- DO NOT EXCEED 700 rpm, HIGHER SPEED WILL BREAK TEETH.
Available options:
080621495
Bit Size:
0.49
Color:
Silver
Material:
Carbide
Degree:
65
Model Number:
Quantity:
1
Shop All ED BROWN
65 HSS Lo-Mount Sight Base Cutter .490"
Your Price
$2,299.99 *
Crow # 080621495
MFR # LO-MOUNT SIGHT BASE CUTTER 65
UPC 050806019836
